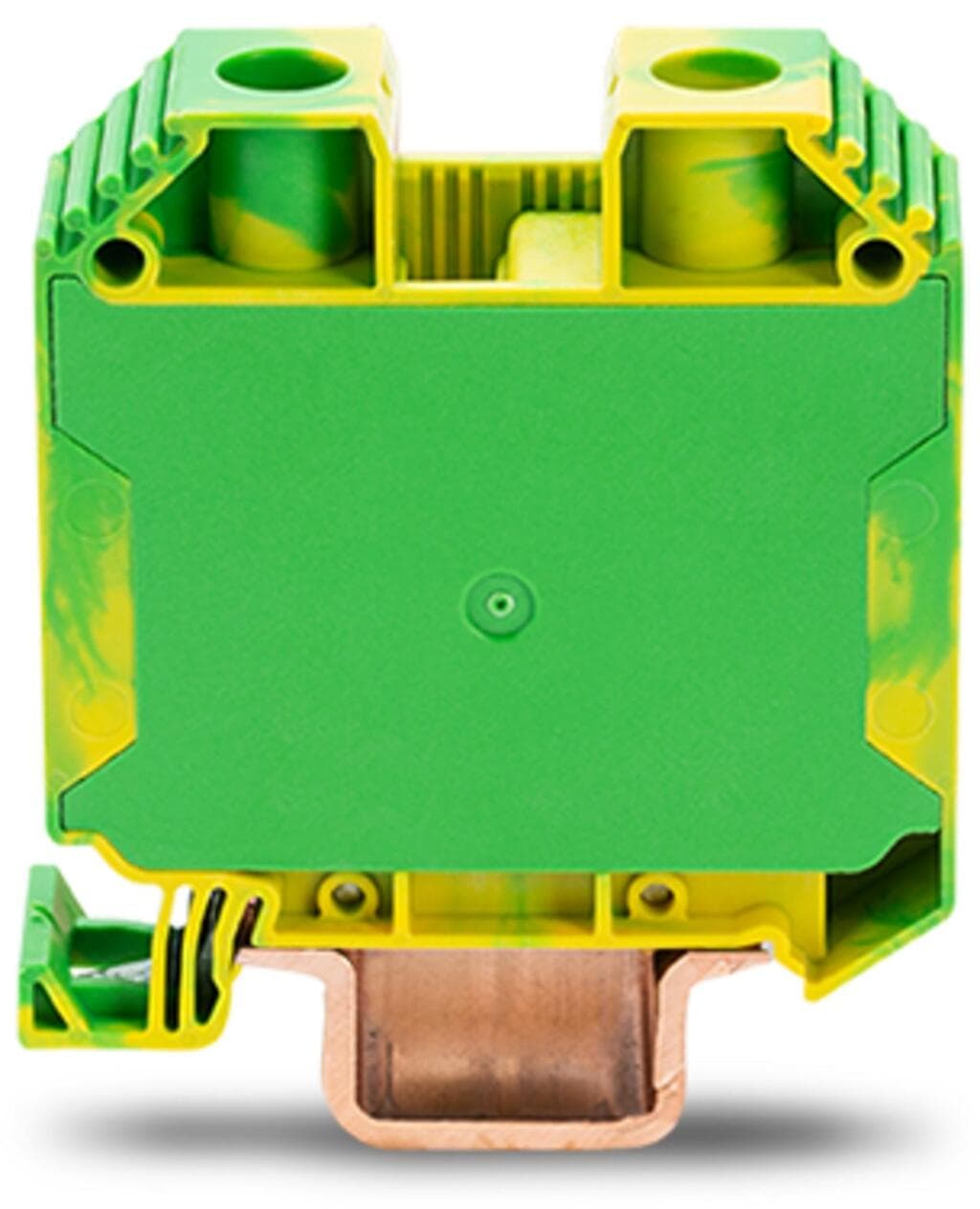

Product Model
883-3507
Key Features
- 1Robust 2-Conductor Ground Connections: Securely connect two wires with screw clamp connections.
- 2DIN Rail Mounting: Easy installation on 35 mm DIN rails for compact and organized wiring.
- 3Wide Temperature Range: Operates from -35°C to 105°C, ensuring reliability in various environments.
- 4Polyamide (PA66) Insulation: Durable and resistant to environmental factors.
- 5Compliant with RoHS and UL94 V0: Meets stringent environmental and safety standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 1 |
| Width | 16.1?mm?/ 0.634?inches | Height | 59?mm?/ 2.323?inches |
| Depth from upper-edge of DIN-rail | 65.5?mm?/ 2.579?inches | Tightening torque | 3.2 … 3.7?Nm |
| Mounting type | DIN-35 rail | Marking level | Side marking |
| Note (material data) | Information on material specifications can be found here | Color | green-yellow |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Weight | 85.1g | Continuous operating temperature | -35 … +105?°C |
| ETIM 9.0 | EC000901 | ETIM 8.0 | EC000901 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143940498 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-2 |
| Approvals per | CSA 22.2 No 158 | Connection technology | Screw connection |
| Actuation type | Slot screwdriver; (6.5 x 1.2) mm blade | Connectable conductor materials | Copper |
| Connectable conductor materials (note) | Terminating Aluminum ConductorsBoth restrictions and application notes must be observed when terminating aluminum conductors. These instructions can be found in the WAGO Webshop under “Downloads – Documentation – Additional Information: Terminating Aluminum Conductors.” | Nominal cross-section | 35 mm2 |
| Solid conductor | 1.5 … 50?mm2?/ 16 … 1/0?AWG | Stranded conductor | 1.5 … 50?mm2?/ 16 … 1/0?AWG |
| Fine-stranded conductor | 1.5 … 50?mm2?/ 16 … 1/0?AWG | Fine-stranded conductor; with insulated ferrule | 1.5 … 35?mm2?/ 16 … 2?AWG |
| Note (conductor cross-section) | Connecting 50 mm2 is only possible on a copper DIN 35 x 15 rail (2.3 mm thick). | Strip length | 18?mm?/ 0.71?inches |
| Wiring direction | Side-entry wiring | Screw thread | M6 |
Specifications may be subject to change without notice
