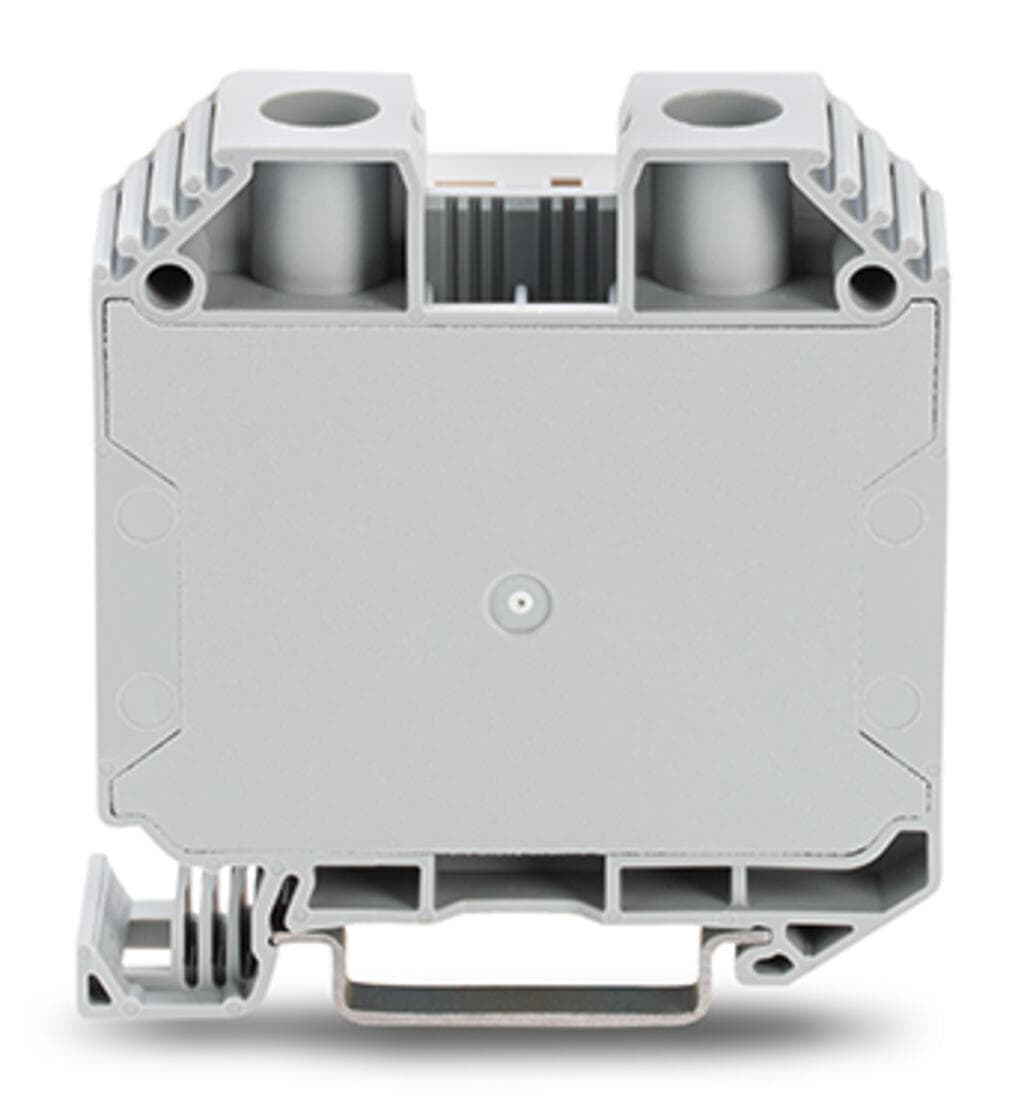

Product Model
883-3501
Key Features
- 1High amperage rating of 150A for heavy-duty applications.
- 2Compatible with 16 to 1/0 AWG wire sizes for versatility.
- 3DIN rail mounting for easy installation in industrial settings.
- 4Temperature rating from -35 to 105°F for broad operating conditions.
- 5Gray color with screw-type connections for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Number of jumper slots | 2 |
| Width | 16.1?mm?/ 0.634?inches | Height | 59?mm?/ 2.323?inches |
| Depth from upper-edge of DIN-rail | 65.5?mm?/ 2.579?inches | Tightening torque | 3.2 … 3.7?Nm |
| Mounting type | DIN-35 rail | Marking level | Side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Weight | 58g | Continuous operating temperature | -35 … +105?°C |
| ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143940597 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
| Rated current | 125A | Current at conductor cross-section (max.) mm2 | 150A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
| Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 150A |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 150A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 150A |
| Power loss, per pole (potential) | 4.062W | Rated current I<sub>N</sub> for specified power loss | 125A |
| Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | Screw connection |
| Actuation type | Slot screwdriver; (6.5 x 1.2) mm blade | Connectable conductor materials | Copper |
| Connectable conductor materials (note) | Terminating Aluminum ConductorsBoth restrictions and application notes must be observed when terminating aluminum conductors. These instructions can be found in the WAGO Webshop under “Downloads – Documentation – Additional Information: Terminating Aluminum Conductors.” | Nominal cross-section | 35 mm2 |
| Solid conductor | 1.5 … 50?mm2?/ 16 … 1/0?AWG | Stranded conductor | 1.5 … 50?mm2?/ 16 … 1/0?AWG |
| Fine-stranded conductor | 1.5 … 50?mm2?/ 16 … 1/0?AWG | Fine-stranded conductor; with insulated ferrule | 1.5 … 35?mm2?/ 16 … 2?AWG |
| Note (conductor cross-section) | Connecting 50 mm2 is only possible on a copper DIN 35 x 15 rail (2.3 mm thick). | Strip length | 18?mm?/ 0.71?inches |
| Wiring direction | Side-entry wiring | Screw thread | M6 |
Specifications may be subject to change without notice
