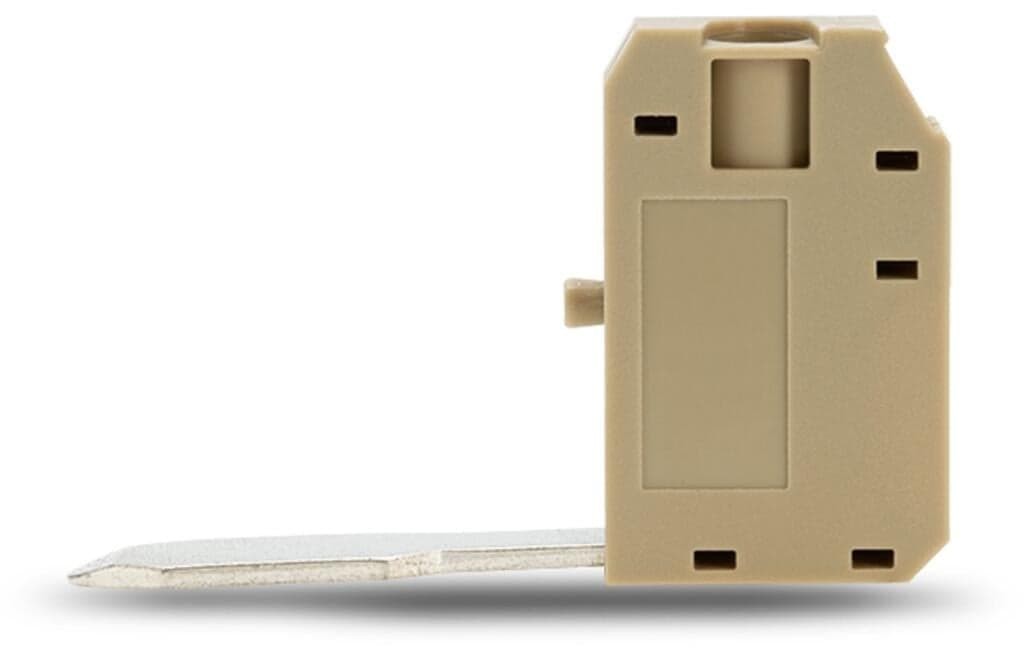

Product Model
883-1230
Key Features
- 1High Voltage Capability: Rated for 1000V nominal voltage and 6kV impulse voltage.
- 2High Current Capacity: Handles up to 57A of continuous current.
- 3Durable Construction: Made from polyamide (PA66) with a flammability class of V2.
- 4Easy Connection: Features screw connection technology with a 10mm² nominal cross-section.
- 5Versatile Use: Suitable for solid, stranded, and fine-stranded conductors, including those with insulated ferrules.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 1 | Connection position | side |
| Tightening torque | 1.2 … 2?Nm | Note (material data) | Information on material specifications can be found here |
| Color | beige | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V2 | Weight | 12.6g |
| Continuous operating temperature | -35 … +105?°C | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 10?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4055143940283 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 57A | Connection technology | Screw connection |
| Actuation type | Slot screwdriver; (4 x 0.8) mm blade | Nominal cross-section | 10 mm2 |
| Solid conductor | 0.2 … 10?mm2?/ 22 … 8?AWG | Stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
| Fine-stranded conductor | 0.2 … 10?mm2?/ 22 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.2 … 10?mm2?/ 22 … 8?AWG |
| Strip length | 12?mm?/ 0.47?inches |
Specifications may be subject to change without notice
