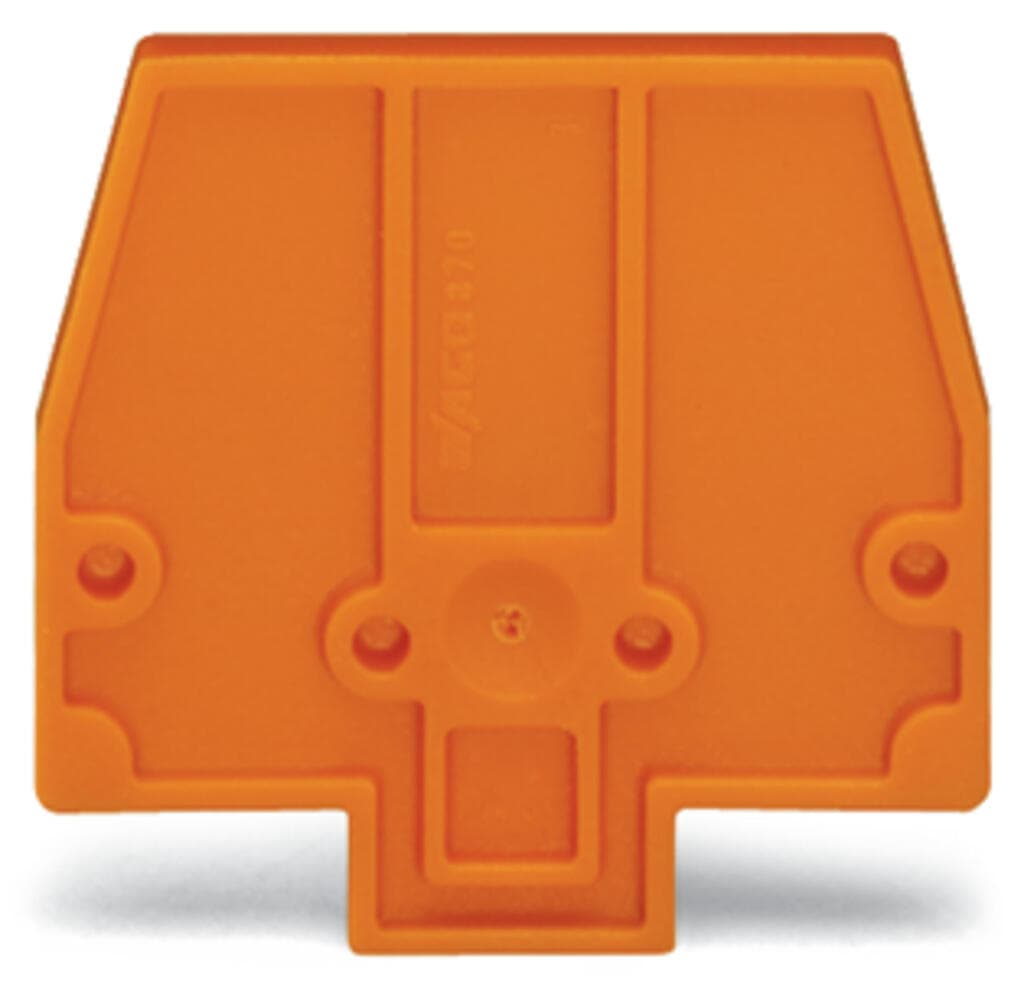

Product Model
870-929
Key Features
- 12 mm thick for enhanced durability and stability.
- 2Oversized design for easy installation and connection.
- 3Orange color for clear visibility in complex electrical systems.
- 4Made in China with high-quality materials.
- 5Ideal for use in rail and chassis terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2?mm?/ 0.079?inches | Height | 33.4?mm?/ 1.315?inches |
| Depth | 31.2?mm?/ 1.228?inches | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.036MJ | Weight | 1.2g |
| Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | CN | GTIN | 4017332540162 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
