Product Model

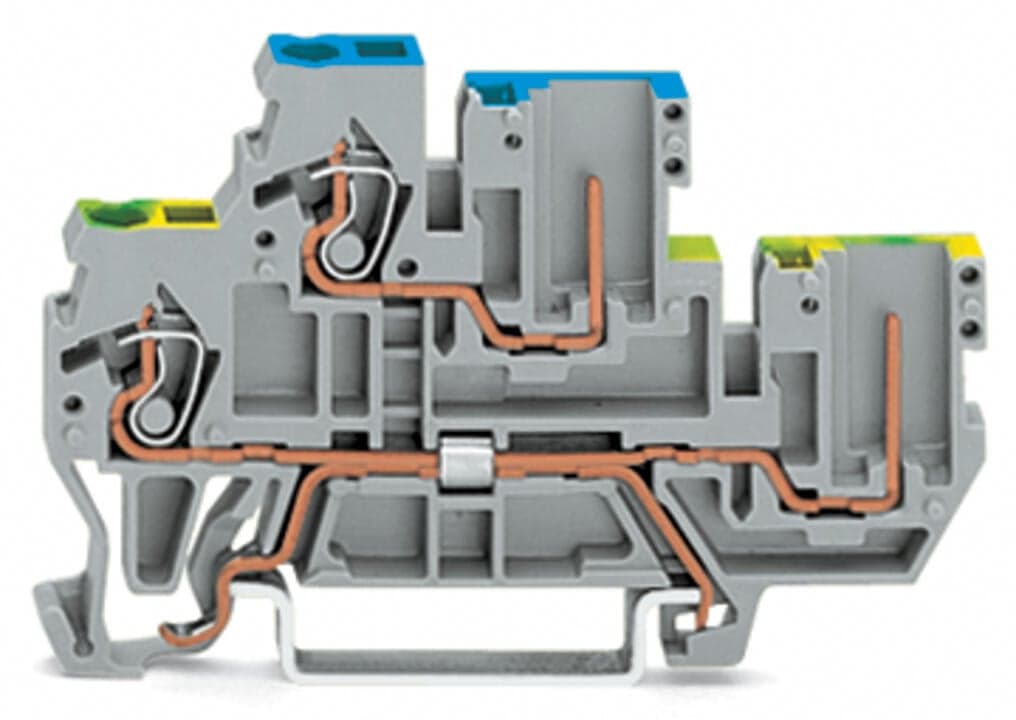

870-127
Key Features
- 1Made from durable copper with a gray housing for enhanced insulation.
- 2Supports front-entry wiring with two clamping points for secure connections.
- 3Designed for DIN-rail 35 x 15 and 35 x 7.5, ensuring easy installation in various industrial settings.
- 4Meets safety standards with a rated impulse voltage of 6 kV and a maximum insulation diameter of 4.4 mm.
- 5Capable of handling up to 16 A of current with a power loss per pole of 0.3405 W.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | Max. insulation diameter: 4.4 mm | Safety information 2 | 2-conductor female plugs cannot be used. |
| Clamping units | 2 | Total number of potentials | 2 |
| Number of levels | 2 | Width | 5?mm?/ 0.197?inches |
| Height | 70?mm?/ 2.756?inches | Depth from upper-edge of DIN-rail | 40?mm?/ 1.575?inches |
| Potential Marking | PE/L | Design | horizontal type |
| Mounting type | DIN-35 rail | Marking level | Side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.163MJ |
| Weight | 10.6g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-41 |
| eCl@ss 9.0 | 27-14-11-41 | ETIM 9.0 | EC000901 |
| ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454225360 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 16A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Power loss, per pole (potential) | 0.341W | Rated current I<sub>N</sub> for specified power loss | 16A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
