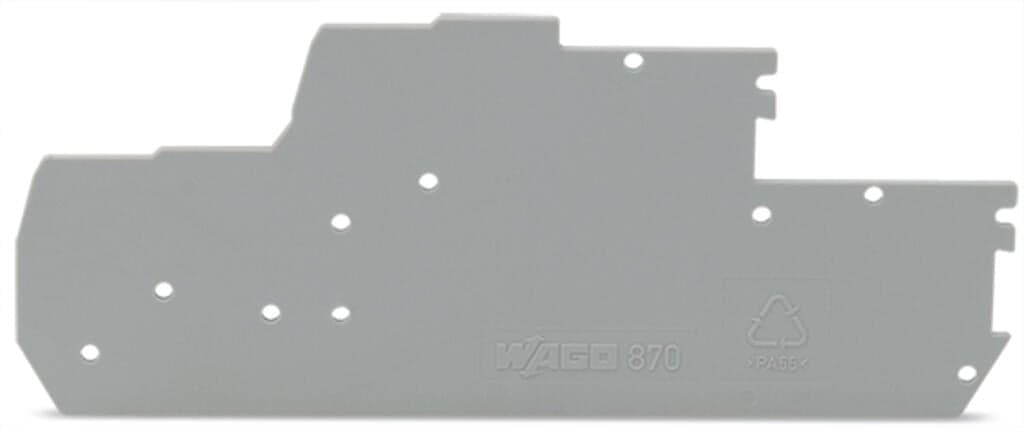

Product Model
870-1148
Key Features
- 1High-Quality Material: Made from durable, 1mm thick gray material.
- 2Fire-Resistant: Meets flammability class UL94 V0 standards.
- 3Compact Design: Ideal for X-COM series applications.
- 4Easy Installation: Simple to integrate into various electrical systems.
- 5Reliable Performance: Continuous operating temperature range of -60°C to +105°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1?mm?/ 0.039?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.109MJ | Weight | 3g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143332682 | Customs tariff number | 8538906000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
