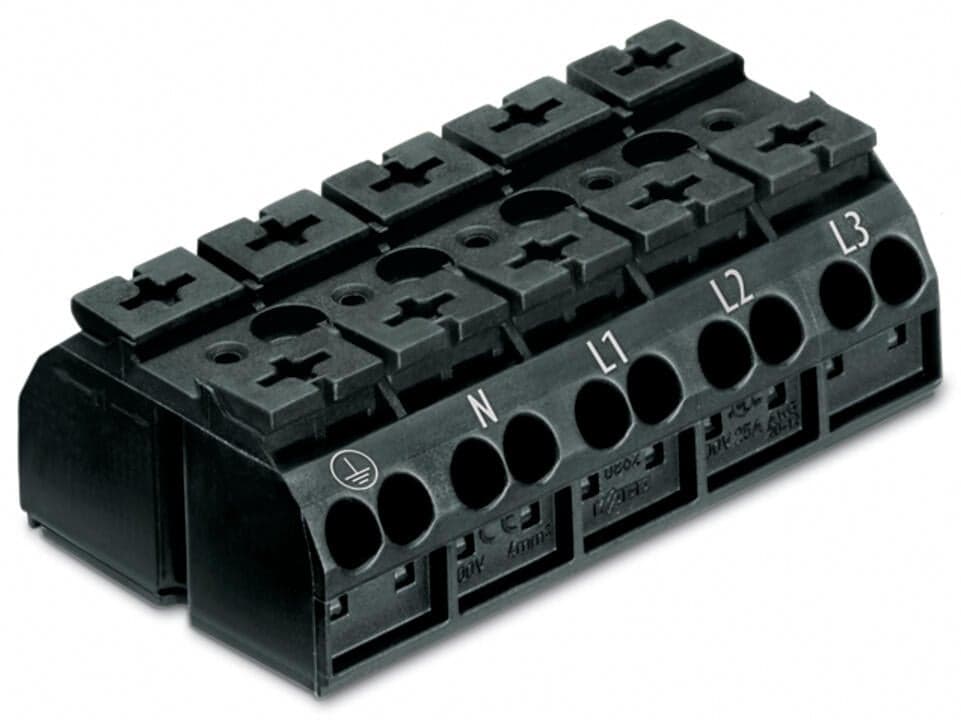

Product Model
862-9515
Key Features
- 1Effortless Installation: Snap-in mounting feet for fast assembly and push-buttons for easy installation.
- 2Ground Contact Option: Convenient automatic grounding contact available for enhanced safety.
- 3Built-in Test Points: Simplify testing with a 2 mm Ø test plug, ensuring quick and accurate diagnostics.
- 4Flexible Marking Options: Standard marking, marker strips, or custom marking for large orders.
- 5High-Rated Components: Compliant with RoHS and UR Listed standards, ensuring high-quality and reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 20 | Total number of potentials | 5 |
| PE function | with ground contact | Pin spacing | 12?mm?/ 0.472?inches |
| Width | 60?mm?/ 2.362?inches | Height from the surface | 22.3?mm?/ 0.878?inches |
| Depth | 35?mm?/ 1.378?inches | Marking | ?-N-L1-L2-L3 |
| Mounting type | Chassis-mount | Note (material data) | Information on material specifications can be found here |
| Color | black | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.664MJ | Halogen-free | Yes |
| Weight | 34.4g | Product Group | 9 (Std Chassis Mt Blocks) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 200?pcs |
| Packaging type | bag | Country of origin | DE |
| GTIN | 4044918510912 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Connectable conductor materials | Copper |
| Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
| Stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5?mm2?/ 20 … 16?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 18?AWG |
| Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 10 … 11?mm?/ 0.39 … 0.43?inches |
| Number of poles | 5 | Wiring direction | Side-entry wiring |
