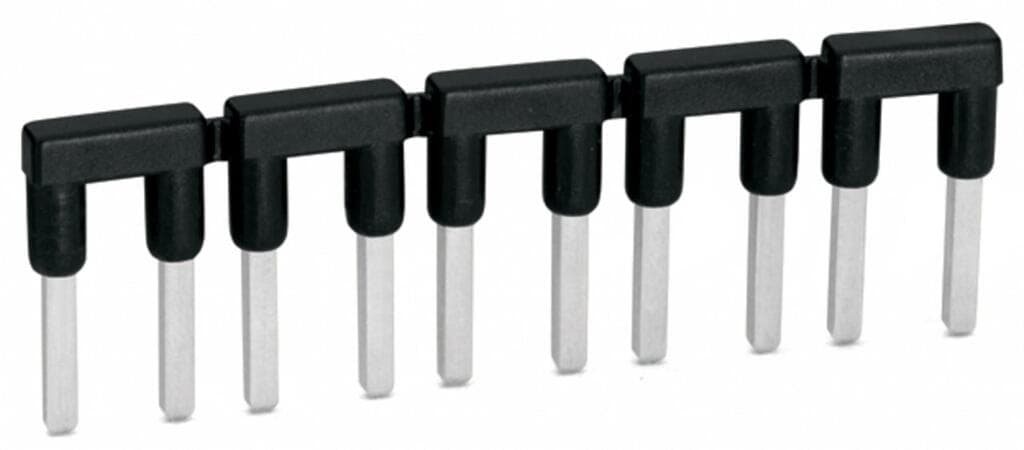

Product Model
862-482
Key Features
- 1Insulated and Terminated Conductor Entry: Ensures secure and efficient connections.
- 2RoHS Compliant: Meets environmental standards for safe use.
- 332A Rated Current: Supports high-performance applications.
- 4Durable Polyamide 6.6 Insulation: Minimizes the risk of short circuits.
- 5Black Color for Easy Identification: Enhances visibility in control panels and industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 58.6 mm / 2.307 inches | Height | 3.6 mm / 0.142 inches |
| Depth | 18.9 mm / 0.744 inches | Jumper assignment | 1-2 |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Weight | 6.8g |
| Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
| ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 5?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4044918945141 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated current | 32A |
Specifications may be subject to change without notice
