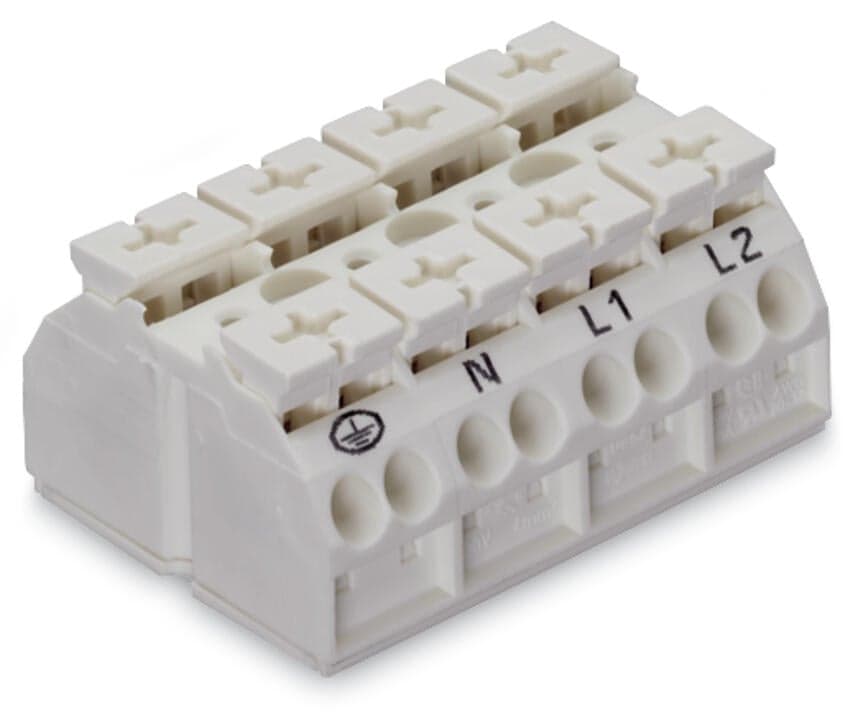

Product Model
862-1694/999-950
Key Features
- 1Ex e II Compliance: Meets stringent Ex e II safety standards for hazardous environments.
- 2Push-in CAGE CLAMP: Easy and secure connection technology for solid and stranded conductors.
- 3Snap-in Mounting: Convenient and flexible mounting system for easy installation.
- 4RoHS Compliant: Environmentally friendly, compliant with RoHS regulations.
- 5Versatile Conductor Range: Supports conductors from 0.5 to 4 mm², suitable for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 16 | Total number of potentials | 4 |
| PE function | without PE contact | Pin spacing | 12?mm?/ 0.472?inches |
| Width | 48?mm?/ 1.89?inches | Height from the surface | 22.3?mm?/ 0.878?inches |
| Depth | 35?mm?/ 1.378?inches | Marking | ?-N-L1-L2 |
| Mounting type | Snap-in foot at position 1+4 | Note (material data) | Information on material specifications can be found here |
| Color | white | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.497MJ | Halogen-free | Yes |
| Weight | 27.3g | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 200?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4045454803568 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage EN (Ex e II) | 440V | Rated current (Ex e II) | 28A |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
| Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
| Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
| Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 10 … 11?mm?/ 0.39 … 0.43?inches | Number of poles | 4 |
| Wiring direction | Side-entry wiring |
