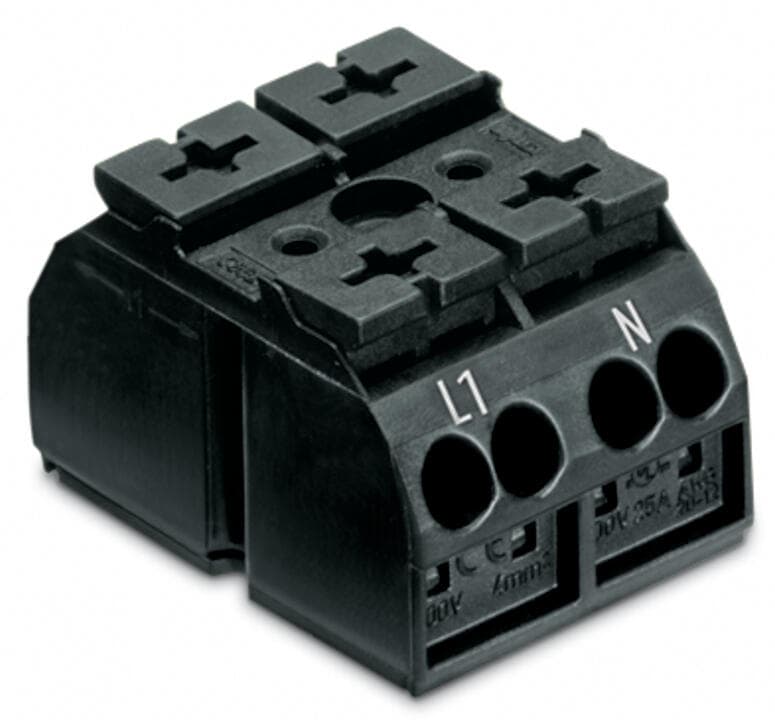

Product Model
862-1562
Key Features
- 1Push-in CAGE CLAMP® for fast and vibration-proof connections.
- 2Supports solid, stranded, and fine-stranded conductors (0.5 to 4 mm² / 20 to 12 AWG).
- 3Simple push-button actuation for easy conductor insertion.
- 4Meets overvoltage category III and pollution degree 3 (500 V, 6 kV surge voltage).
- 5Made with polyamide (PA66) insulation, ensuring high fire load resistance and halogen-free material.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 8 | Total number of potentials | 2 |
| PE function | without PE contact | Pin spacing | 12?mm?/ 0.472?inches |
| Width | 24?mm?/ 0.945?inches | Height from the surface | 22.3?mm?/ 0.878?inches |
| Depth | 35?mm?/ 1.378?inches | Marking | L1-N |
| Mounting type | Chassis-mount | Note (material data) | Information on material specifications can be found here |
| Color | black | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.263MJ | Halogen-free | Yes |
| Weight | 14.1g | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 500?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4044918509626 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 32A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
| Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
| Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
| Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 10 … 11?mm?/ 0.39 … 0.43?inches | Number of poles | 2 |
| Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
