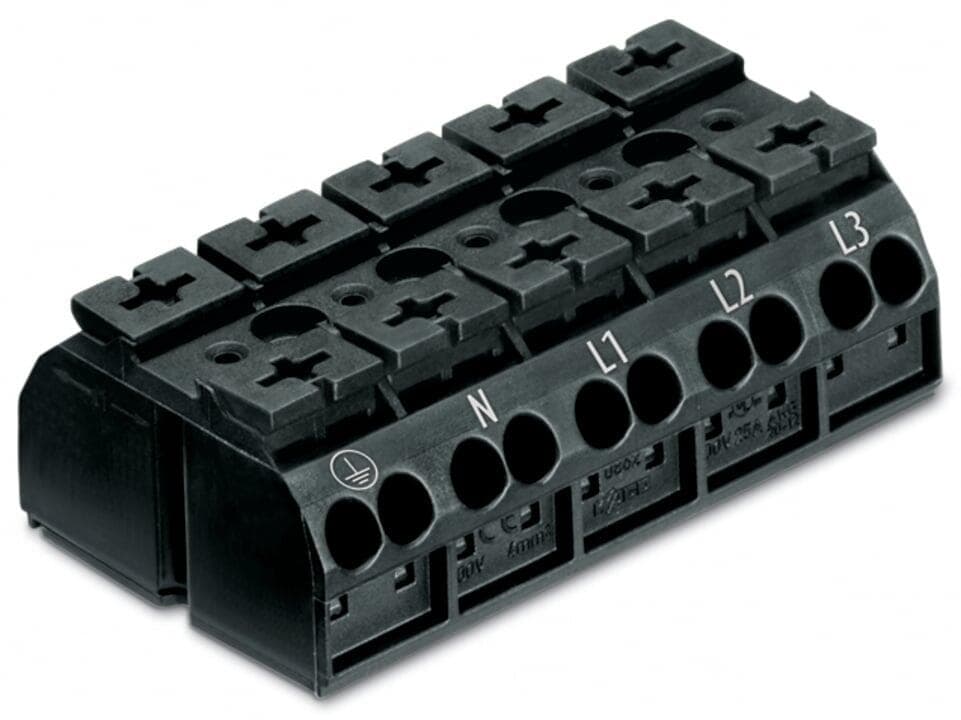

Product Model
862-1525/999-950
Key Features
- 1Meets Ex e II safety standards for hazardous environments.
- 2Easy and secure connection technology for solid and stranded conductors.
- 3Accommodates up to four conductors per pole, reducing wiring costs.
- 4Supports protective-earth (3P+N+PE) configuration without ground contact.
- 5Constructed with high-quality materials for long-lasting performance in demanding applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 20 | Total number of potentials | 5 |
| PE function | without PE contact | Pin spacing | 12?mm?/ 0.472?inches |
| Width | 60?mm?/ 2.362?inches | Height from the surface | 22.3?mm?/ 0.878?inches |
| Depth | 35?mm?/ 1.378?inches | Marking | ?-N-L1-L2-L3 |
| Mounting type | Chassis-mount | Note (material data) | Information on material specifications can be found here |
| Color | black | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.661MJ | Halogen-free | Yes |
| Weight | 34.2g | eCl@ss 10.0 | 27-14-11-06 |
| eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 200?pcs | Packaging type | Bag |
| Country of origin | DE | GTIN | 4045454915209 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage EN (Ex e II) | 440V | Rated current (Ex e II) | 28A |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
| Connectable conductor materials | Copper | Solid conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
| Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG | Stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG |
| Fine-stranded conductor | 0.5 … 4?mm2?/ 20 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 0.75?mm2?/ 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
| Strip length | 10 … 11?mm?/ 0.39 … 0.43?inches | Number of poles | 5 |
| Wiring direction | Side-entry wiring |
