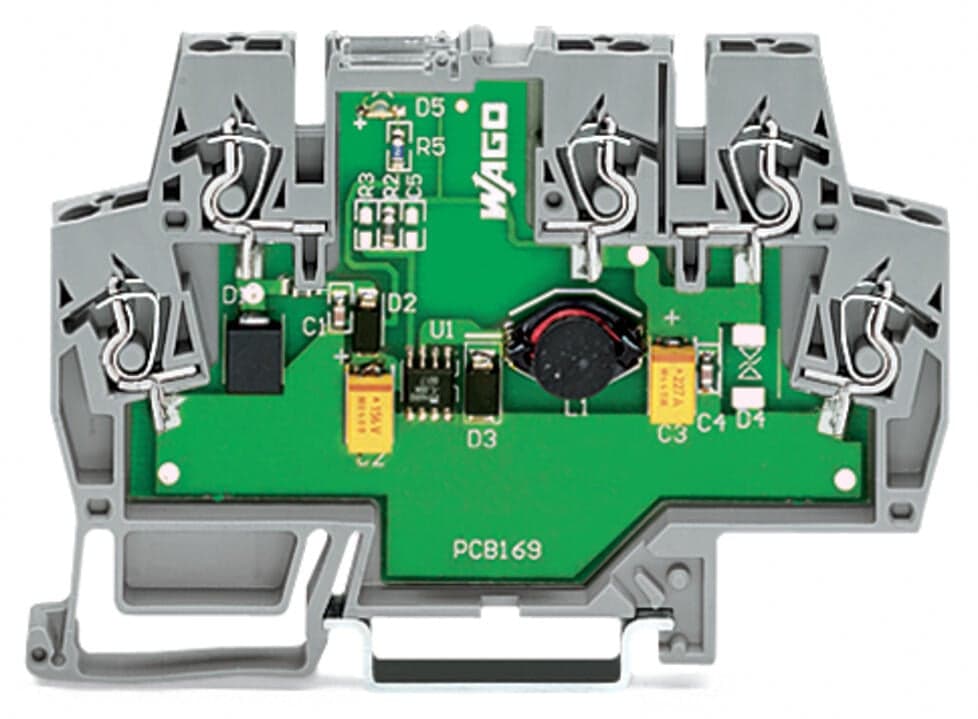

Product Model
859-805
Key Features
- 1Reliable 12V output with ±2% voltage regulation.
- 2Compact design with IP20 enclosure for safe operation.
- 3Efficient power supply with 85% efficiency and 200kHz switching frequency.
- 4Easy mounting on DIN rail for flexible installation options.
- 5Robust construction with reverse voltage protection and CE, UL approvals.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Protection class | III | Protection type | IP20; per EN 60529 |
| Reverse voltage protection | Yes | Pollution degree | 2 |
| Series operation | No | Number of jumper slots | 2 |
| Connection technology | CAGE CLAMP? | WAGO connector | WAGO 859 Series |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
| Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
| Housing design | Rail-mount terminal block | Mounting type | DIN-35 rail |
| Color | gray | Fire load | 0.48MJ |
| Weight | 35g | Ambient temperature (operation) | -25 … +55 °C |
| Operating altitude (max.) | 2000m | Conformity marking | CE |
| eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
| ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
| ECCN | EAR99 | PU (SPU) | 10?(1)?pcs |
| Packaging type | box | Country of origin | US |
| GTIN | 4050821017486 | Customs tariff number | 8504409510 |
| RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage [V] | DC?24?V |
| Input voltage range | DC?15 … 30?V | Nominal mains frequency range | 0?Hz |
| Mains failure hold-up time | ≥?0.5?ms | Nominal output voltage [V] | DC?12?V |
| Output voltage range | DC?12?V | Nominal output current I<sub>o nom</sub> | 0.5?A |
| Residual ripple | ≤?20?mV | Switching frequency | 20?kHz (nominal) |
| Overload behavior | Temporary no damage (short circuit of the output for 1 minute) | Signaling | 1 x LED |
| Efficiency (typ.) | 85?% | Internal fuse | TVS diode |
Specifications may be subject to change without notice
