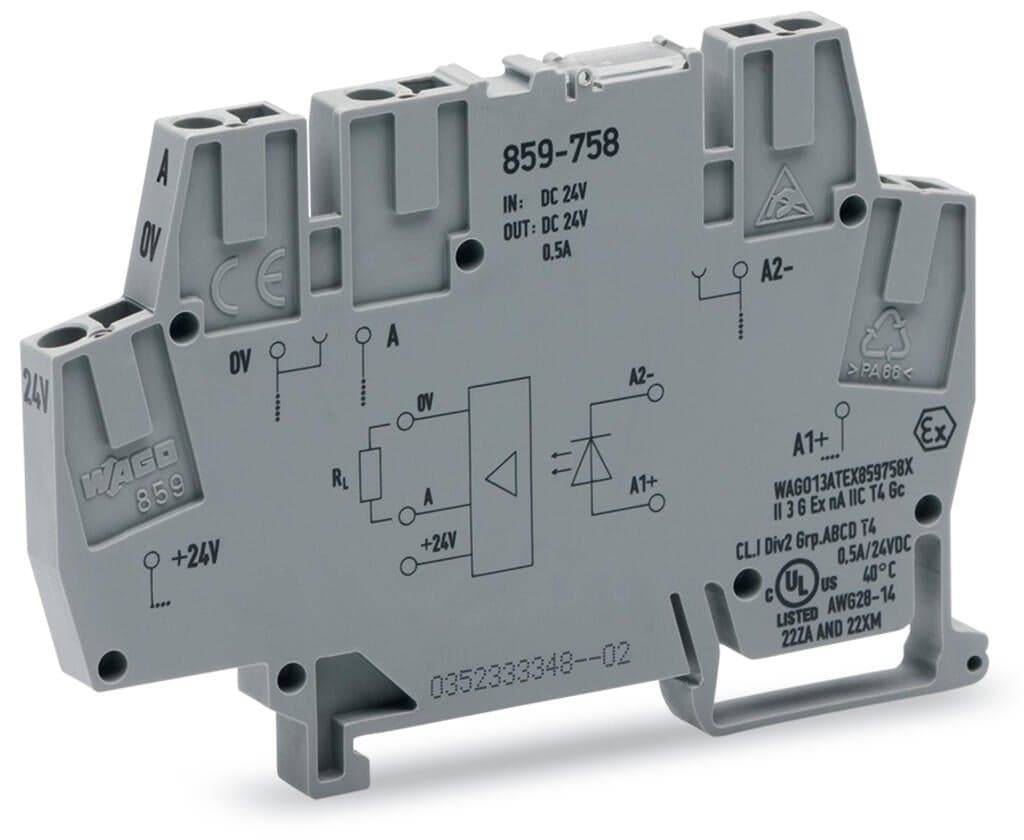

Product Model
859-758
Key Features
- 1Industry-leading reliability with high-quality components.
- 2Versatile connectivity options for various industrial applications.
- 3Easy installation and maintenance for reduced downtime.
- 4Robust design to withstand harsh environmental conditions.
- 5Compatible with a wide range of industrial protocols and systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
| Overvoltage category | II | Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms | Insulation type (control/load circuit) | Basic insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) | Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) |
| Insulation type (to adjacent devices of different types) | Basic insulation | Protection type | IP20; in connected state or when using 859-525 end plate |
| Connection technology | CAGE CLAMP? | Solid conductor | 0.2 … 2.5?mm2?/ 24 … 14?AWG |
| Fine-stranded conductor | 0.14 … 2.5 mm2 / 26 … 14 AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 1.5 mm2 / 26 … 16 AWG |
| Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
| Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
| Mounting type | DIN-35 rail | Mounting position | horizontal (standing/lying); vertical |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Material group | I |
| Flammability class per UL94 | V0 | Fire load | 0.638MJ |
| Weight | 18.3g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
| Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +40 °C | Ambient temperature (storage) | -40 … +85 °C |
| Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
| Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
| Standards/specifications | EN 61000-6-2 | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-26-15-03 | eCl@ss 9.0 | 27-26-15-03 |
| ETIM 9.0 | EC001504 | ETIM 8.0 | EC001504 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4055143606127 | Customs tariff number | 8541500080 |
| RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage U<sub>N</sub> | DC?24?V |
| Input voltage range | DC?15 … 30?V | Input voltage range (low level) | DC 0 … 3 V |
| Input voltage range (high level) | DC 15 … 30 V | Nominal input current at U<sub>N</sub> | 9?mA |
| Input current range | 4 … 12?mA | Circuit type | 3-wire connection |
| Limiting continuous current | 1 A | Nominal output voltage | DC?24?V |
| Output voltage range | DC 6 … 30 V | Voltage drop | ≤ 1.3 VDC |
| Leakage current at rated voltage | ≤?10?μA | Turn-on time | ≤?3?μs |
| Turn-off time | ≤?12?μs | Rise time (t<sub>10-90</sub>) | 1μs |
| Drop-out time (t<sub>90-10</sub>) | 1μs | Switching frequency | ≤?20?kHz |
| Status indicator | Red LED |
