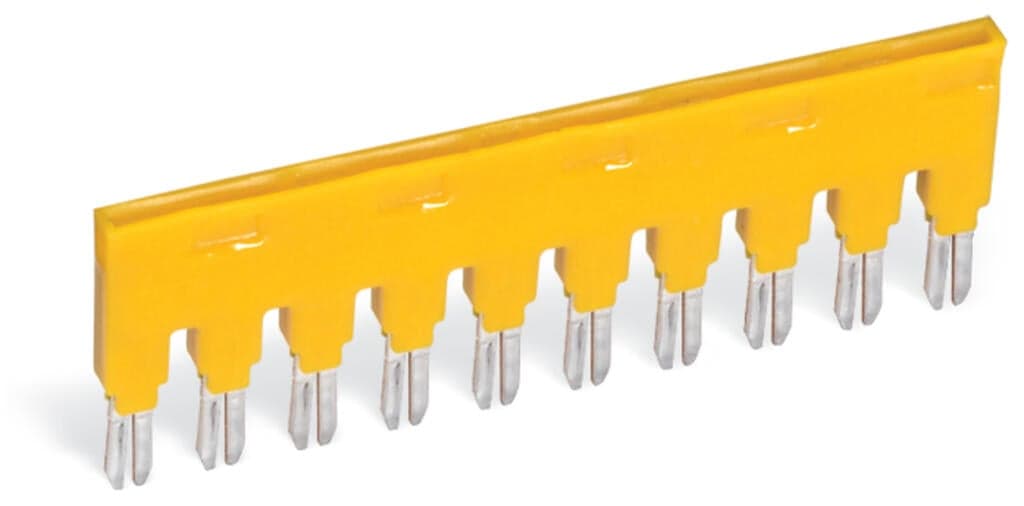

Product Model
859-410/000-029
Key Features
- 1Ideal for complex electrical configurations.
- 2Supports high current applications.
- 3Ensures safe and reliable electrical connections.
- 4Easy identification in various settings.
- 558 mm width, 21.5 mm height, and 2.5 mm depth for space efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated current | 18A | Width | 58?mm?/ 2.283?inches |
| Height | 21.5?mm?/ 0.846?inches | Depth | 2.5?mm?/ 0.098?inches |
| Color | yellow | Fire load | 0.043MJ |
| Weight | 5.7g | eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC002586 |
| ETIM 8.0 | EC002586 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918984843 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
