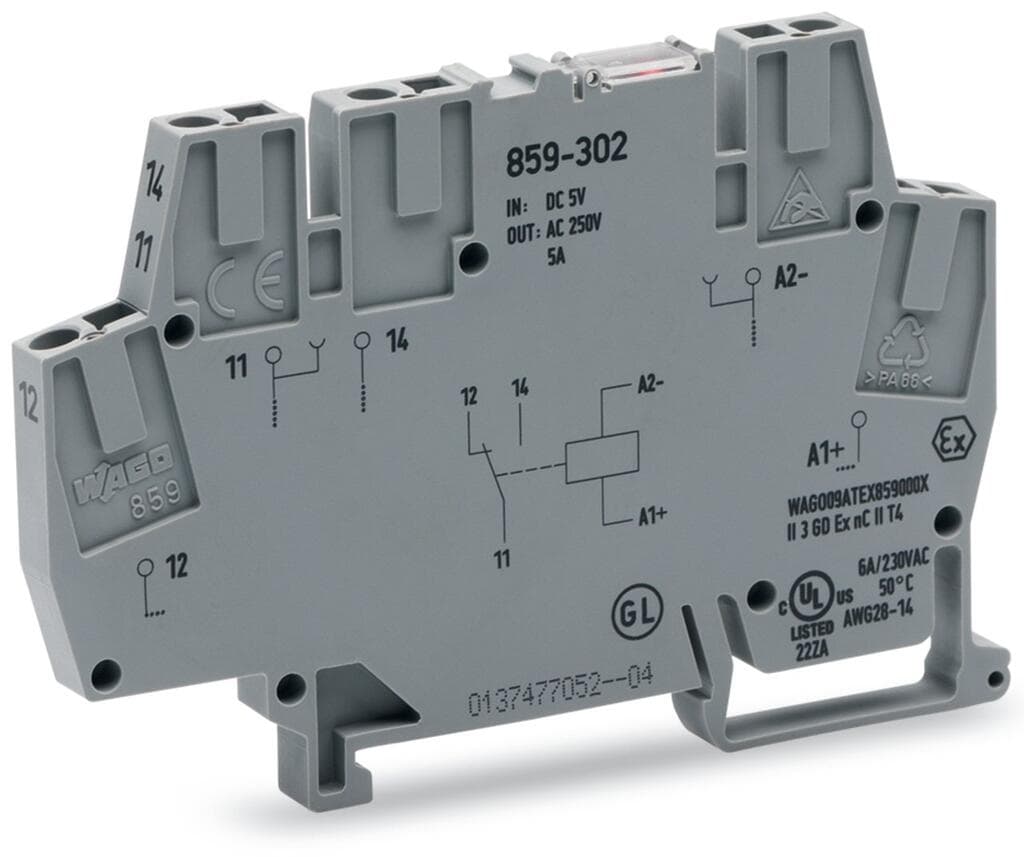

Product Model
859-308
Key Features
- 1Compact 6mm-wide housing ideal for space-restricted control panels.
- 2Robust CAGE CLAMP connections ensure continuous and uninterrupted operation.
- 3Nominal input voltage: 220 VDC; input voltage range: -15% to +20%.
- 4Single-pole (1P) relay with a red LED status indicator for easy monitoring.
- 5Meets EN 61010-2-201, EN 61810-1, and EN 61373 standards for high reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit. | Rated voltage | 300V |
| Rated surge voltage | 4kV | Overvoltage category | III |
| Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 4?kVrms |
| Dielectric strength (open contact) (AC, 1?min) | 1?kVrms | Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) | Protection type | IP20; in connected state or when using 859-525 end plate |
| Connection technology | CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
| Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
| Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
| Mounting type | DIN-35 rail | Mounting position | Horizontal (standing/lying); vertical |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Material group | I |
| Flammability class per UL94 | V0 | Fire load | 0.338MJ |
| Weight | 22.8g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +50 °C |
| Ambient temperature (storage) | -40 … +70 °C | Processing temperature | -25 … +50?°C |
| Temperature range of connection cable | ≥ (Tambient+ 20 K) | Relative humidity | 5 … 95?% (no condensation permissible) |
| Operating altitude (max.) | 2000m | Standards/specifications | EN 61010-2-201 |
| Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 | ETIM 9.0 | EC001437 |
| ETIM 8.0 | EC001437 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 10?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143603102 |
| Customs tariff number | 8536490050 | CAS-No. | 7439-92-1 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) | SCIP notification number (Austria) | 737a6eb1-23d7-4620-8349-27099ac2267f |
| SCIP notification number (Belgium) | 4e3b46c1-1907-4651-90fa-ea76fb2274f8 | SCIP notification number (Bulgaria) | 031ecb84-0cea-4228-910b-74e8dc98ebe1 |
| SCIP notification number (Czech Republic) | ca08bde4-a9dc-4708-970a-0392d645491b | SCIP notification number (Denmark) | 4379f4c4-74ff-4c25-9c31-81c81367db38 |
| SCIP notification number (Finland) | 3c788d20-1e30-4eb7-b541-05119d1f9c2a | SCIP notification number (France) | d3ae6427-946f-44ad-b4a8-b6929a7a72fa |
| SCIP notification number (Germany) | a623cb97-fa90-4da9-bed8-1ae9e168b73d | SCIP notification number (Hungary) | 4d00e091-130a-4911-a207-5b85331c79dd |
| SCIP notification number (Italy) | 15af0681-f8af-4c06-bb93-7c926ec0d24a | SCIP notification number (Netherlands) | c0084684-345d-40a8-a5a4-880690a0f544 |
| SCIP notification number (Poland) | 4c87d690-db69-43d8-b9ce-0f4af6074975 | SCIP notification number (Romania) | af0ef8dc-f9ec-4135-9038-b356d723668b |
| SCIP notification number (Sweden) | c700b5fc-0393-4cff-bb22-1754b9e0b98a | Nominal input voltage U<sub>N</sub> | DC?220?V |
| Input voltage range | -15 … +20?% | Nominal input current at U<sub>N</sub> | 4?mA |
| Number of changeover contacts | 1 | Contact material (relay) | AgSnO2 |
| Limiting continuous current | 5?A | Inrush current (resistive) max. | (AC) 20?A?/ 0.02?s |
| Switching Voltage, Max. | AC?250?V | Switching power (resistive) max. | AC?1250?VA;?DC (see load limit curve) |
| Switching capacity | AC-15:?3?A?/ AC?250?V;?DC-13:?2?A?/ DC?24?V | Recommended minimum load | 10?V?/ 10?mA;?24?V?/ 1?mA |
| Pull-in time (typ.) | 15ms | Drop-out time (typ.) | 25ms |
| Bounce time (typ.) | 3.5ms | Electrical life (NO; resistive load; 23?°C) | 50?x 103 switching operations |
| Mechanical life | 5?x 10? switching operations | Switching frequency with/without load (max.) | 6?min-1/ 180?min-1 |
| Status indicator | Red LED |
Specifications may be subject to change without notice
