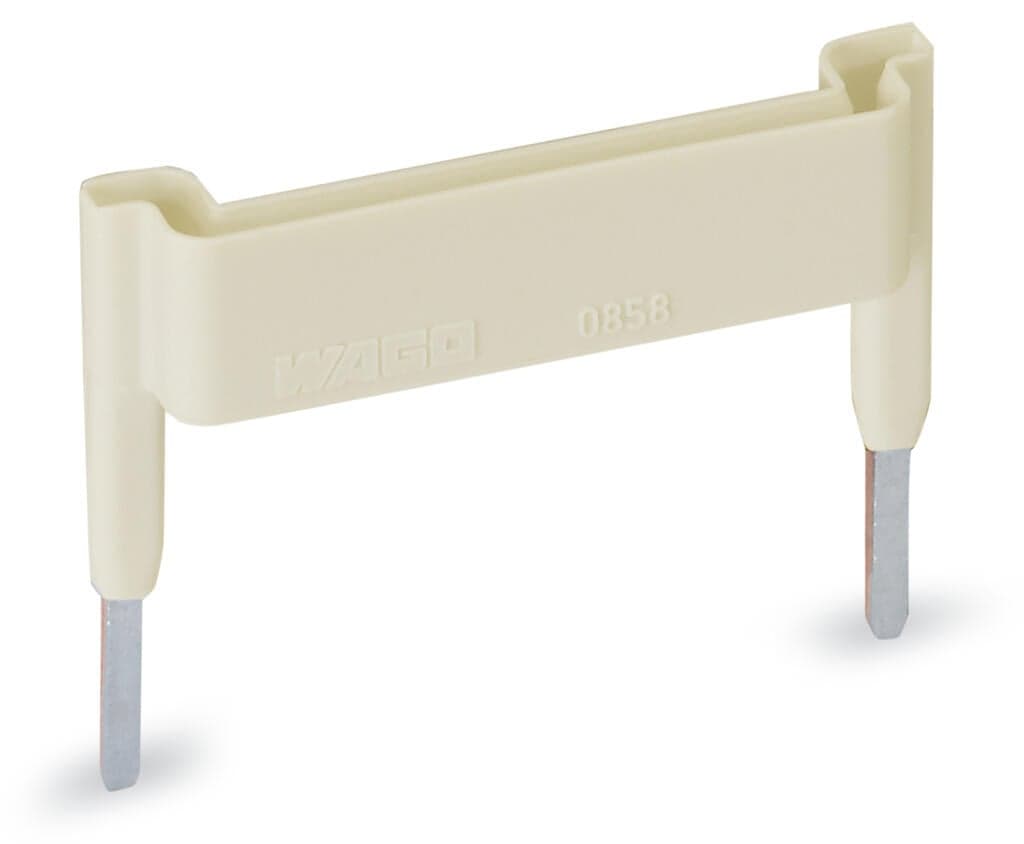

Product Model
858-402
Key Features
- 1Ensures safe and reliable connections in industrial settings.
- 2Easy to use with no need for tools, simplifying your workflow.
- 3Visually distinct for easy identification in complex systems.
- 4Measuring 5.5 mm depth and 24 mm height for space-efficient use.
- 5Durable construction for long-lasting performance in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated current | 12A | Width | 30.7?mm?/ 1.209?inches |
| Height | 24?mm?/ 0.945?inches | Depth | 5.5?mm?/ 0.217?inches |
| Color | light blue | Fire load | 0.025MJ |
| Weight | 1.3g | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC002586 | ETIM 8.0 | EC002586 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 200?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454868109 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
