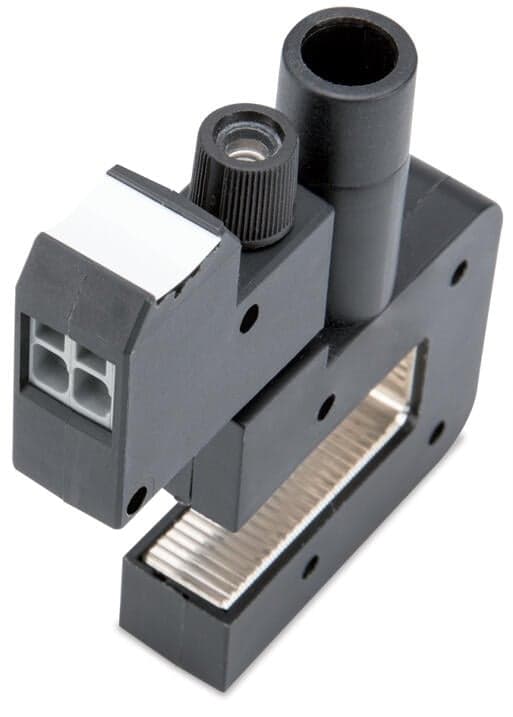

Product Model
855-8015
Key Features
- 1Ideal for busbar applications with integrated fuse for enhanced safety.
- 2Clamping connection ensures easy and secure installation.
- 3Compact design fits seamlessly into existing electrical systems.
- 4Meets stringent safety standards with built-in fuse protection.
- 5Compatible with WAGO's energy measurement technology for precise readings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Spare fuse: WAGO 855-8020 | Busbar thickness (min.) | 4mm |
| Busbar thickness (max.) | 15mm | Width | 79?mm?/ 3.11?inches |
| Height | 15?mm?/ 0.591?inches | Depth | 72?mm?/ 2.835?inches |
| Mounting type | Installation on busbar | Weight | 160g |
| Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 5 … 85?% (without condensation) | Operating altitude (max.) | 2000m |
| Standards/specifications | IEC 60947-7-3 | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | Bag |
| Country of origin | NL | Customs tariff number | 85366990990 |
| RoHS Compliance Status | Compliant,No Exemption | Measured variable | Voltage |
| Fuse (voltage path) | 2 A; 450 V; F; 70 kA; 5 x 25 mm (WAGO 855-8020) | Rated voltage | AC 400?V |
| Connection technology | Push-in CAGE CLAMP? | WAGO connector | WAGO 2624 Series |
| Strip length | 10 … 12 mm / 0.39 … 0.47 inches | Solid conductor | 0.2 … 6 mm2 / 24 … 10 AWG |
| Fine-stranded conductor | 0.2 … 6 mm2 / 24 … 10 AWG |
Specifications may be subject to change without notice
