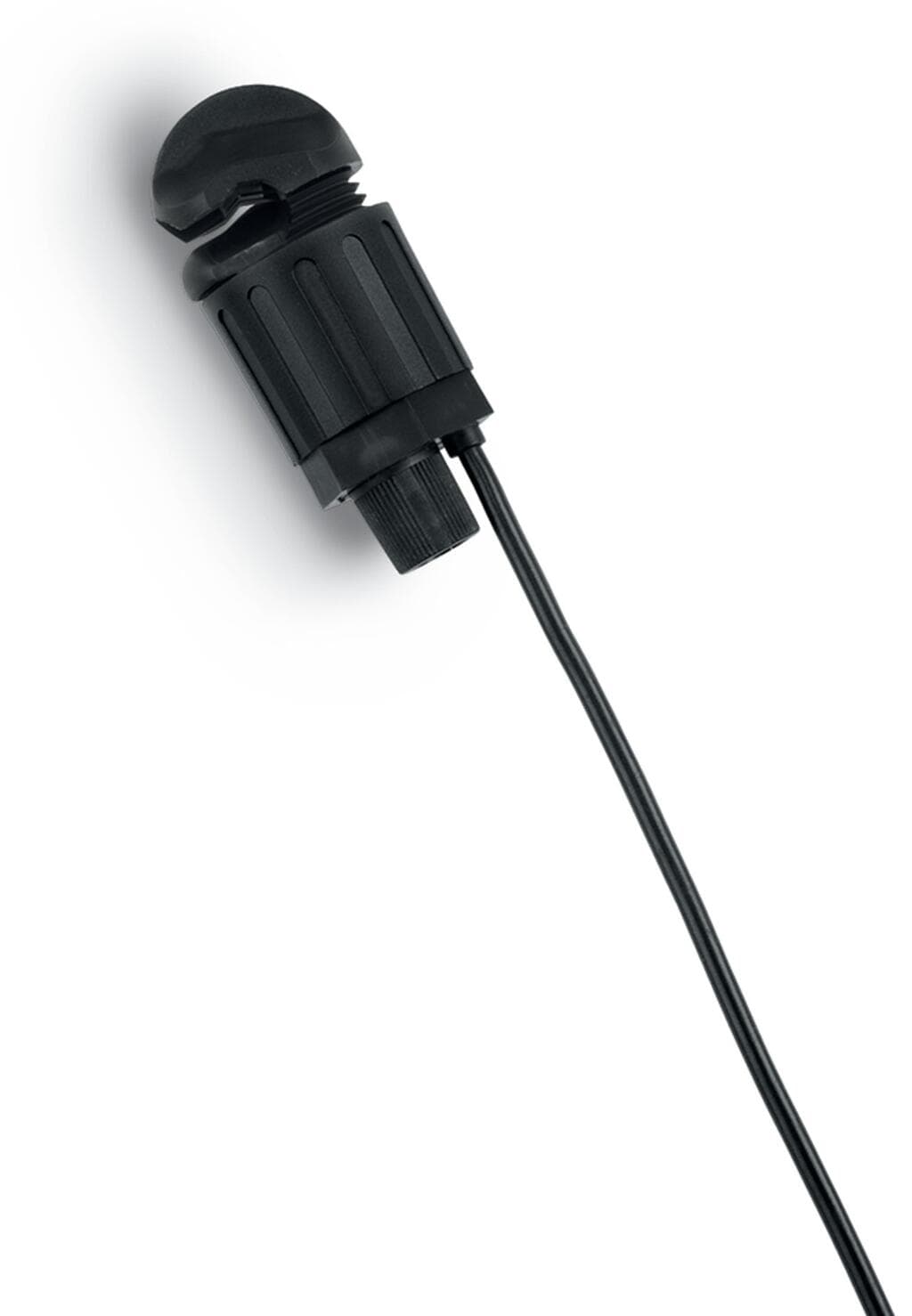

Product Model
855-8001
Key Features
- 1Safely tap measurement voltage with just one turn, no tools required.
- 2Includes a 2A fuse for protected measurement voltage.
- 3Suitable for wire sizes from 2.5mm² to 6mm² (12 AWG to 10 AWG).
- 4Made from PA 66 housing material with IP20 protection rating.
- 5Can be reused up to 24 times for maximum usability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Spare fuse: WAGO 855-8020 | Rated surge voltage | 6?kV |
| Overvoltage category | III | Pollution degree | 2 |
| Protection type | IP20 | Test voltage | AC 3?kV;?50?Hz;?1?min |
| Feedthrough for measurement conductor | ? 3 … 5?mm | Cable type | Secondary side: 1 x 1.0 mm2; flexible; with ferrule |
| Cable length | 3m | Width | 23?mm?/ 0.906?inches |
| Height | 59?mm?/ 2.323?inches | Depth | 23?mm?/ 0.906?inches |
| Mounting type | Mounting on insulated round cable | Torque range | 1.5 … 2 Nm |
| Usability | Can be reused several times (max. 24 times) | Housing material | PA 66 |
| Weight | 25.9g | Ambient temperature (operation) | -5 … +55 °C |
| Ambient temperature (storage) | -20 … +70 °C | Relative humidity | 5 … 85?% (without condensation) |
| Operating altitude (max.) | 2000m | Conformity marking | CE |
| Standards/specifications | EN 60947-7-1 | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 10?(1)?pcs | Packaging type | Box |
| Country of origin | NL | Customs tariff number | 85366990990 |
| RoHS Compliance Status | Compliant,No Exemption | Measured variable | Voltage |
| Continuous current (max.) | 2A | Fuse (voltage path) | 2 A; 450 V; F; 70 kA; 5 x 25 mm (WAGO 855-8020) |
| Rated voltage | AC 400?V | Voltage drop | ≤ 0.5?VAC |
| Connection technology | IDC connection | Solid conductor | 2.5 … 6 mm2 / 14 … 10 AWG |
| Fine-stranded conductor | 2.5 … 6 mm2 / 14 … 10 AWG |
Specifications may be subject to change without notice
