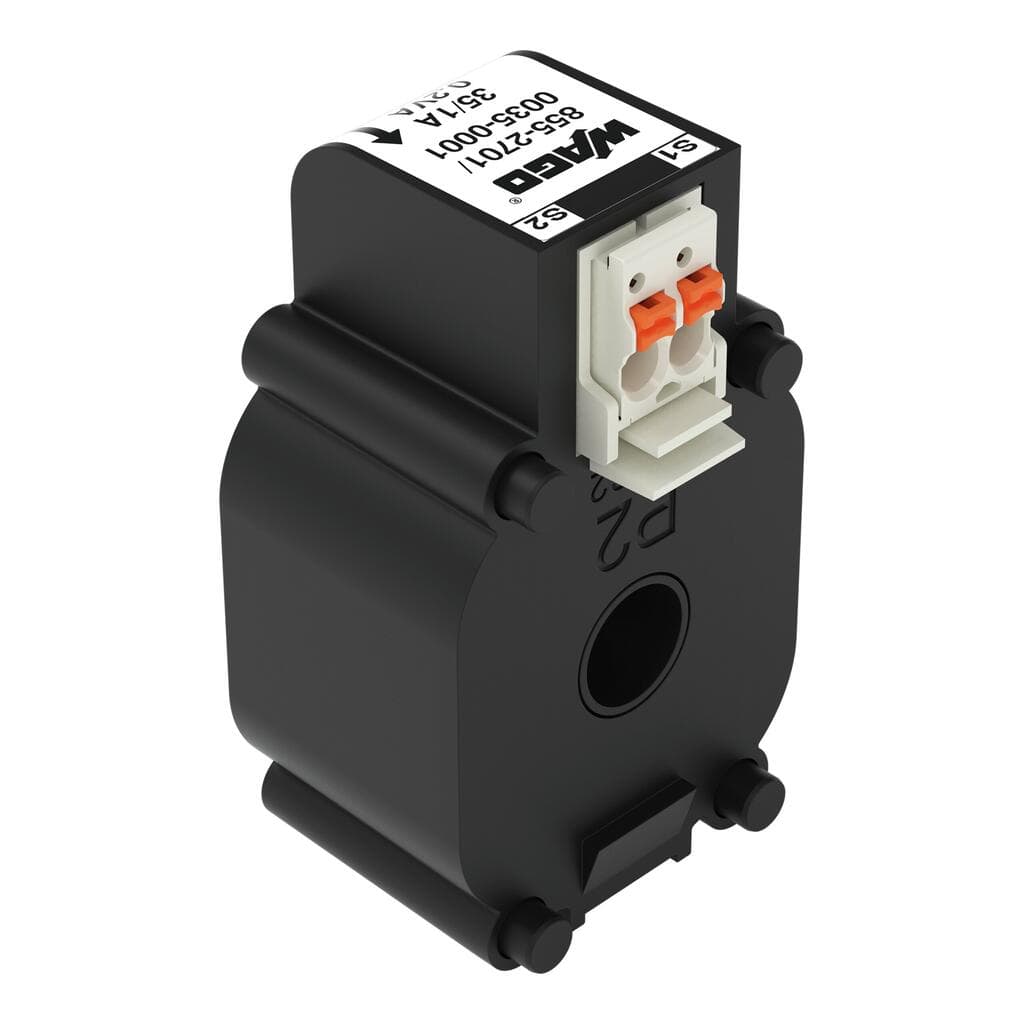

Product Model
855-2701/035-001
Key Features
- 1High Accuracy Class 1: Ensures precise measurements in AC network applications.
- 2Easy Installation: Simple assembly with Push-in CAGE CLAMP technology and DIN-rail mounting.
- 3Compact Design: Suitable for space-restricted applications with a depth of 23 mm and width of 27 mm.
- 4Versatile Mounting Options: Can be mounted on DIN-rail, panels, or round cables using a DIN-rail adapter.
- 5Compliant with Industry Standards: Meets EN 61869-1 and EN 61869-2 standards for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Protection type | IP20 | Test voltage | AC 3?kV;?50?Hz;?1?min |
| Highest voltage for equipment U<sub>m</sub> | AC 720?Vrms | Feedthrough for measurement conductor | ? 7.5 mm |
| Width | 27?mm?/ 1.063?inches | Height | 46?mm?/ 1.811?inches |
| Depth | 23?mm?/ 0.906?inches | Mounting type | Closed current transformer |
| Insulation class | E | Housing material | PA 66 |
| Weight | 48.4g | Ambient temperature (operation) | -10 … +55 °C |
| Ambient temperature (storage) | -20 … +70 °C | Relative humidity | 5 … 85?% (without condensation) |
| Operating altitude (max.) | 2000m | Conformity marking | CE |
| Standards/specifications | EN 61869-1 | eCl@ss 10.0 | 27-21-09-02 |
| eCl@ss 9.0 | 27-21-09-02 | ETIM 9.0 | EC002048 |
| ETIM 8.0 | EC002048 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 15?(1)?pcs | Packaging type | Box |
| Country of origin | NL | Customs tariff number | 85043129900 |
| RoHS Compliance Status | Compliant,No Exemption | Measured variable | Current |
| Rated continuous thermal current I<sub>cth</sub> | 100 % | Rated short-time thermal current I<sub>th</sub> | 60 x IN/ 1 s |
| Rated surge current I<sub>dyn</sub> | 2.5 x Ith | Rated frequency | 50 … 60?Hz |
| Primary rated current | 35?A | Secondary rated current | 1A |
| Rated power S<sub>r</sub> | 0.2VA | Accuracy class | 1 |
| Connection technology | Push-in CAGE CLAMP? | WAGO connector | picoMAX?3.5, 2091-1122 |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches | Solid conductor | 0.2 … 1.5 mm2 / 24 … 14 AWG |
| Fine-stranded conductor | 0.2 … 1.5 mm2 / 24 … 14 AWG |
Specifications may be subject to change without notice
