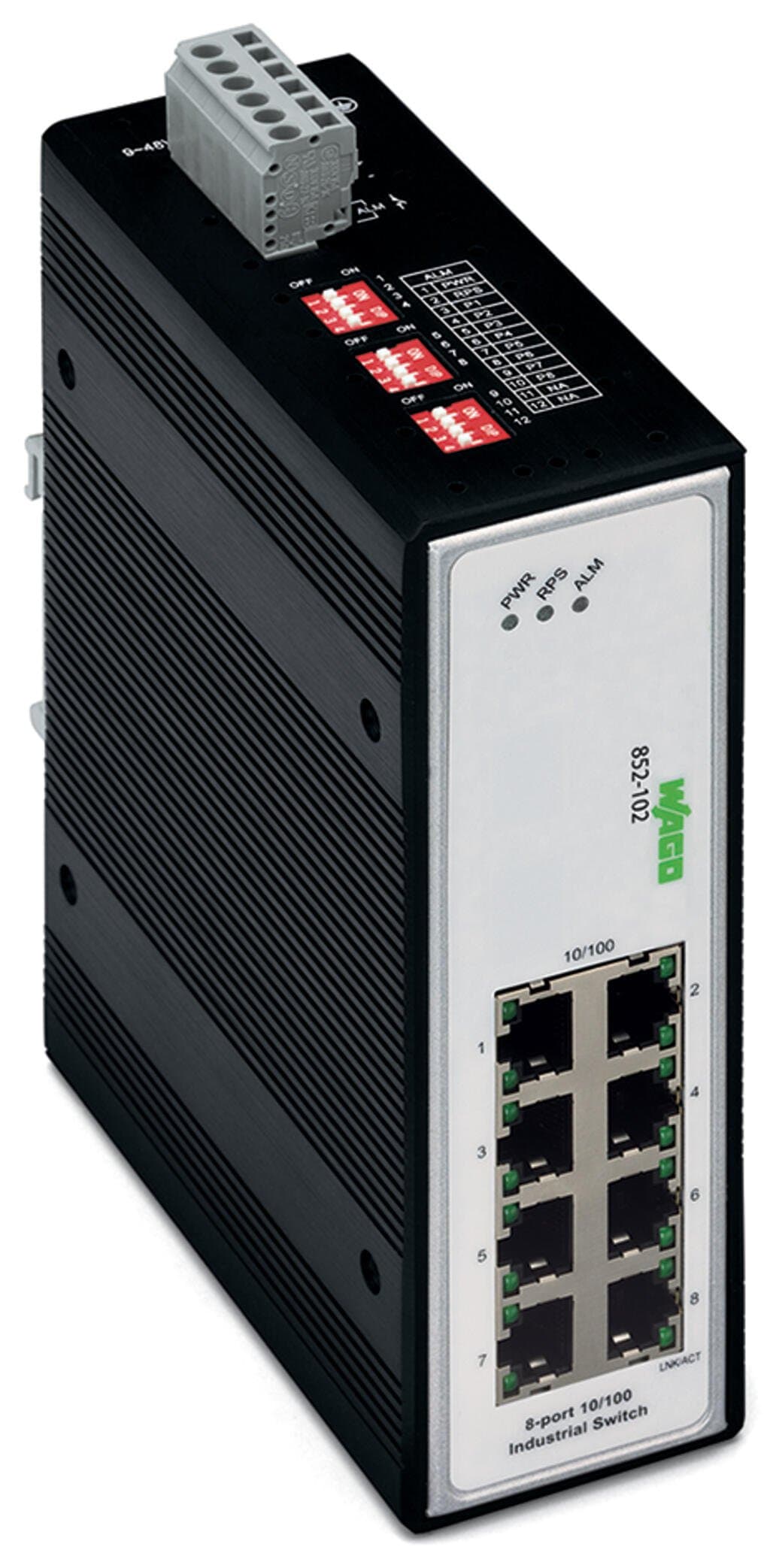

Product Model
852-102
Key Features
- 1Redundant DC Power Supply: Ensures continuous operation with a supply voltage range of 9 to 48 VDC.
- 2Robust Performance: Designed for extreme ambient temperatures (-40°C to +70°C) and vibration resistance.
- 3DIP Switch Control: Programmable alarm functions via DIP switches for customized monitoring.
- 4Compliance with IEEE Standards: Meets IEEE 802.3, 802.3u, and 802.3x standards for reliable communication.
- 5Compact and Mountable: DIN rail mountable with an IP30 black aluminum enclosure for easy installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Switching mode | Store-and-forward; non-blocking | Number of 100 Mbps ports | 8 |
| Communication standards | IEEE 802.3 10BASE-T | Redundancy function | Redundant DC power supply |
| Configuration options | DIP switch for signal contact | Diagnostics | Signal contact |
| MAC table (size) | 2000 addresses | Jumbo frame size | 1536.Byte |
| Supply voltage | 9 … 48 VDC; Cable length: < 3 m | Power consumption without PoE | 5.28W |
| Power consumption (typ.) (24 V) | 4.56W | ESD (contact/air discharge) | 8 KV / 15 KV |
| Transmission rate | Copper cable:?10/100?Mbit/s | Transmission medium (communication/fieldbus) | Copper cable:?Cat. 5 or higher, 100 m maximum cable length |
| Packet throughput | 148,800pkt/s | Control Elements | 12 x DIP switch: Alarm function power supplies and ports 1 … 8 |
| Indicators | Device: LED (PWR, RPS) green: Power supply (primary), redundant power supply (secondary); LED (ALM) red: Alarm; per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT ports 1 … 8 | Connection technology: communication/fieldbus | Copper cable:?8 x RJ-45 |
| Connection technology: supply | 1 x Built-in male connector: 231-436/001-000; included female connector (MCSConnectors): 231-106/026-000 | Width | 50?mm?/ 1.969?inches |
| Height | 162?mm?/ 6.378?inches | Depth | 120?mm?/ 4.724?inches |
| Weight | 860g | Color | black |
| Housing material | Aluminum | Conformity marking | CE |
| Ambient temperature (operation) | -40 … +70 °C (UL max. +60 °C) | Ambient temperature (storage) | -40 … +80 °C |
| Protection type | IP30 | Relative humidity (without condensation) | 95% |
| Mounting type | DIN-35 rail | Vibration resistance | per IEC 60068-2-6 |
| Shock resistance | per IEC 60068-2-27 | EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 | Product Group | 27 (special components I/O) |
| eCl@ss 10.0 | 19-17-01-30 | eCl@ss 9.0 | 19-17-01-06 |
| ETIM 9.0 | EC000734 | ETIM 8.0 | EC000734 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | TW |
| GTIN | 4045454665944 | Customs tariff number | 8517620090 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
