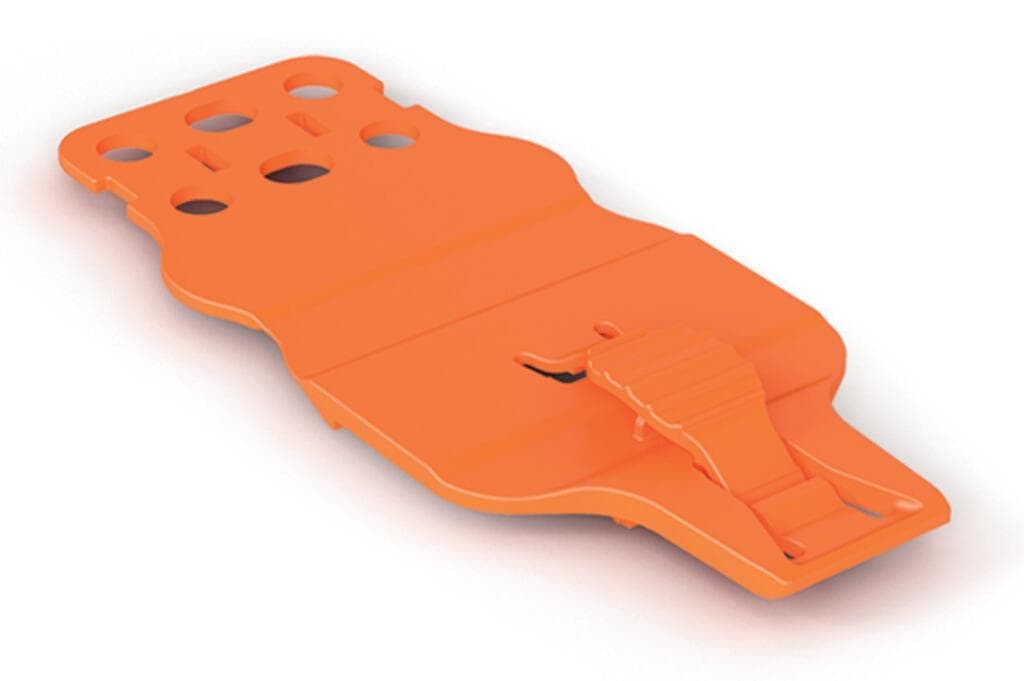

Product Model
832-545
Key Features
- 1Durable design with high-temperature resistance.
- 2Easy-to-use push-in technology for quick connections.
- 3Compact size for space-efficient installations.
- 4High current capacity for reliable power transmission.
- 5Wide range of compatible connectors for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 50.8?mm?/ 2?inches | Height | 8.94?mm?/ 0.352?inches |
| Depth | 102.15?mm?/ 4.022?inches | Mounting type | Snap-in mounting |
| Suitable | for standard male and female connectors | Locking of plug-in connection | Center locking lever |
| Note (material data) | Information on material specifications can be found here | Color | orange |
| Material group | I | Insulation material (main housing) | Polybutylene terephthalate (PBT) |
| Flammability class per UL94 | V0 | Fire load | 0.244MJ |
| Weight of insulation material | 8.14g | Weight | 8.1g |
| Processing temperature | -35 … +60?°C | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 40?(10)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143961011 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
| Number of poles | 5 |
Specifications may be subject to change without notice
