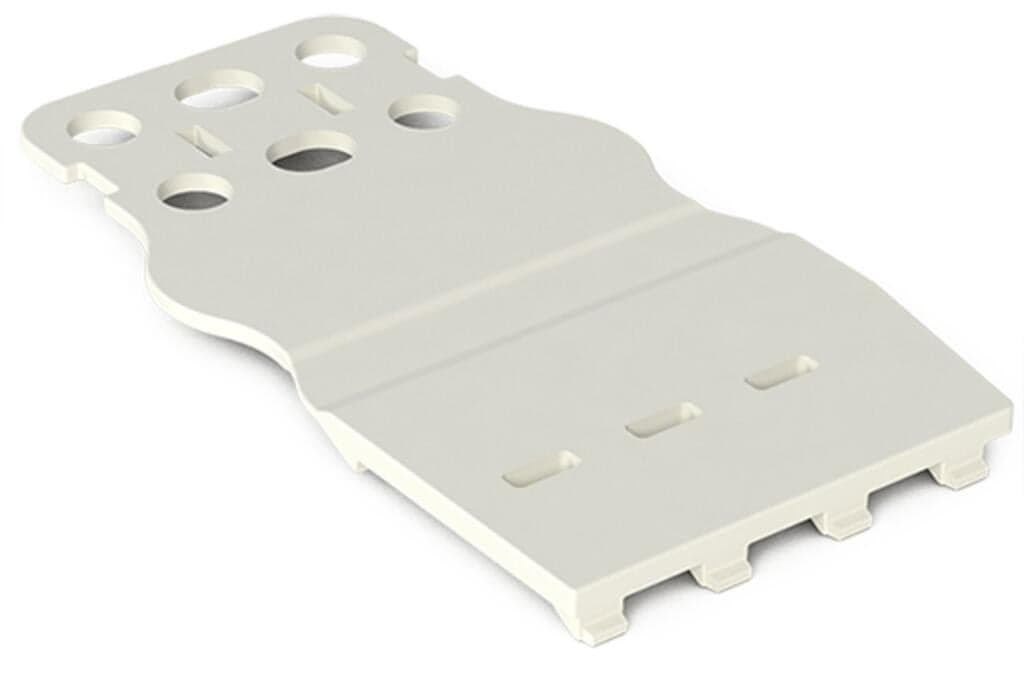

Product Model
832-535
Key Features
- 1Compact design for easy integration into tight spaces.
- 2High current capacity up to 30 A.
- 3Robust construction for long-lasting performance.
- 4Easy termination with spring-loaded contacts.
- 5Compatible with a wide range of wire sizes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 50.8?mm?/ 2?inches | Height | 4?mm?/ 0.157?inches |
| Depth | 102.15?mm?/ 4.022?inches | Mounting type | Snap-in mounting |
| Suitable | for standard male and female connectors | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polybutylene terephthalate (PBT) | Flammability class per UL94 | V0 |
| Fire load | 0.334MJ | Weight of insulation material | 8.16g |
| Weight | 8.2g | Processing temperature | -35 … +60?°C |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 40?(10)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143935517 | Customs tariff number | 8538908160 |
| RoHS Compliance Status | Compliant,No Exemption | Number of poles | 5 |
Specifications may be subject to change without notice
