Product Model
832-500
Key Features

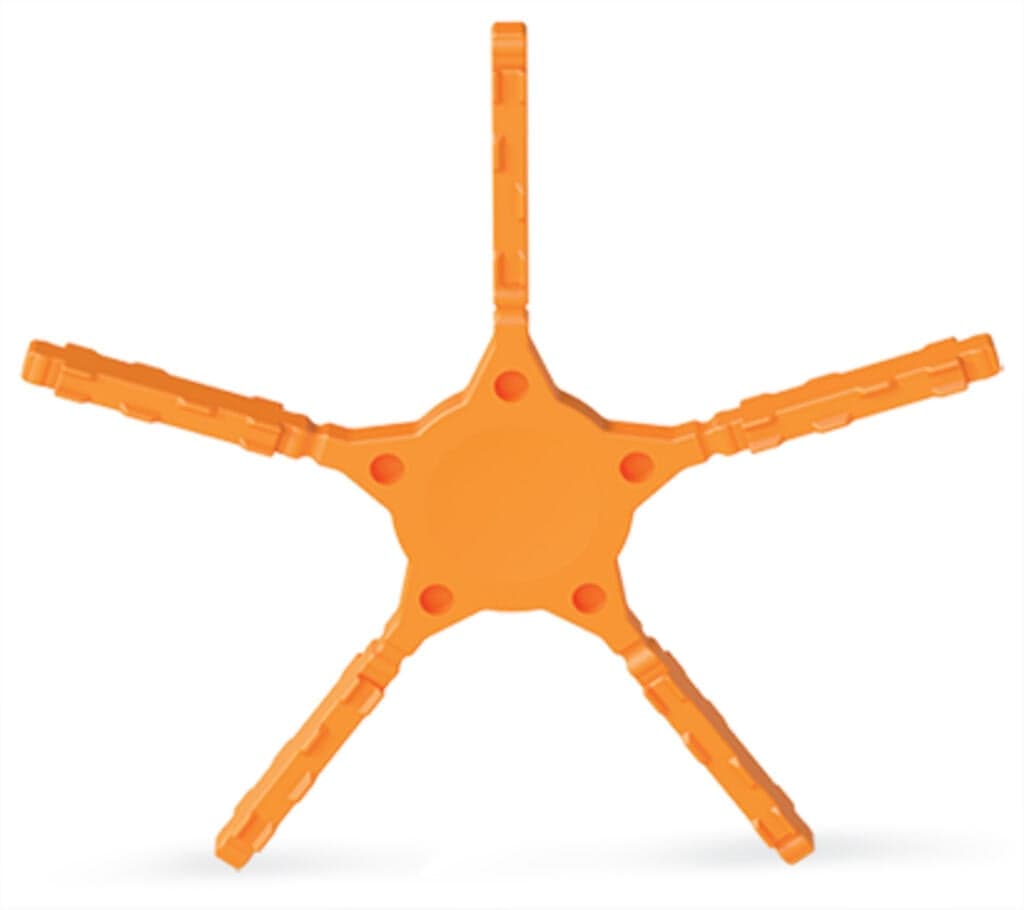

- 1Secure Coding Key Carrier: Ensures accurate and secure coding for THT male headers.
- 2High Reliability: Built with durable materials like polybutylene terephthalate (PBT) for long-lasting performance.
- 3Easy Installation: Simple to use, with a push-in CAGE CLAMP termination for effortless conductor connection.
- 4Versatile Compatibility: Compatible with a wide range of conductors, from solid to fine-stranded ferruled conductors.
- 5Cost-Effective: Available in bulk quantities, offering significant cost savings with a net price of $0.87 per unit.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suitable | for THT male headers | Note (material data) | Information on material specifications can be found here |
| Color | orange | Material group | I |
| Insulation material (main housing) | Polybutylene terephthalate (PBT) | Flammability class per UL94 | V0 |
| Fire load | 0.035MJ | Weight | 1.2g |
| eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-44-04-92 |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143758055 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
