Product Model

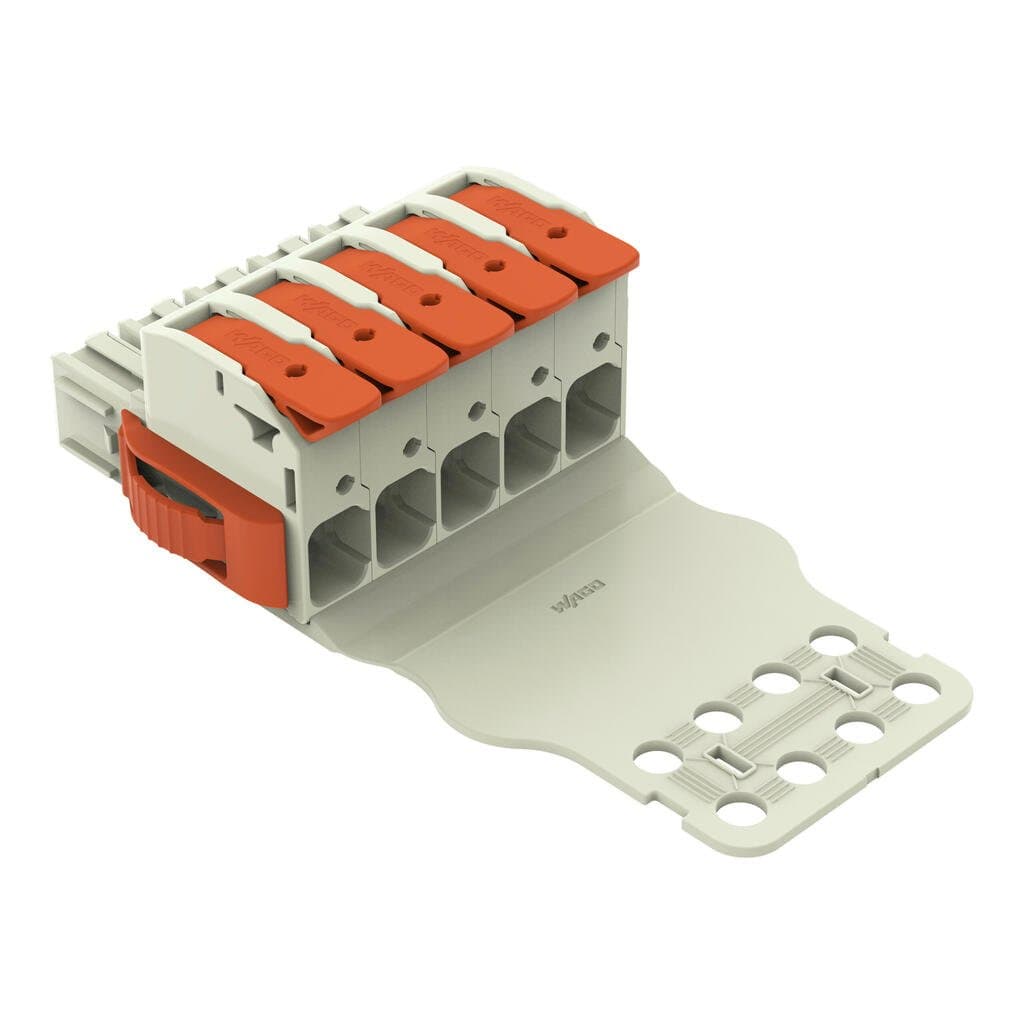

832-1105/315-000
Key Features
- 1High-speed data transmission up to 10 Gbps.
- 2Durable and reliable in harsh industrial environments.
- 3Compact design for easy integration into control systems.
- 4Supports a wide range of industrial protocols.
- 5Easy configuration and installation with WAGO's intuitive tools.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Total number of potentials | 5 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 10.16?mm?/ 0.4?inches |
| Width | 64.1?mm?/ 2.524?inches | Height | 29.1?mm?/ 1.146?inches |
| Depth | 110.8?mm?/ 4.362?inches | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for conductor | Mismating protection | Yes |
| Plugging without loss of pin spacing | No | Locking of plug-in connection | Lateral locking lever |
| Strain relief | Strain relief plate | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polybutylene terephthalate (PBT) | Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) | Material of the additional spring for socket contact | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Silver |
| Fire load | 1.525MJ | Actuator color | orange |
| Weight of insulation material | 26.72g | Weight | 76.7g |
| Limit temperature range | -60 … +120?°C | Processing temperature | -35 … +60?°C |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 5?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143938129 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
| Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
| Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
| Rated current | 76A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 600V |
| Rated current UL (Use Group B) | 66A | Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 66A | Rated voltage (UL 1977) | 600V |
| Rated current UL 1977 | 85A | Rated voltage CSA (Use Group B) | 600V |
| Rated current CSA (Use Group B) | 66A | Rated voltage CSA (Use Group C) | 600V |
| Rated current CSA (Use Group C) | 66A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Lever | Solid conductor | 0.75 … 16?mm2?/ 18 … 4?AWG |
| Fine-stranded conductor | 0.75 … 25?mm2?/ 18 … 4?AWG | Fine-stranded conductor; with insulated ferrule | 0.75 … 16?mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.75 … 16?mm2 | Strip length | 18 … 20?mm?/ 0.71 … 0.79?inches |
| Number of poles | 5 | Conductor entry direction to mating direction | 0° |
