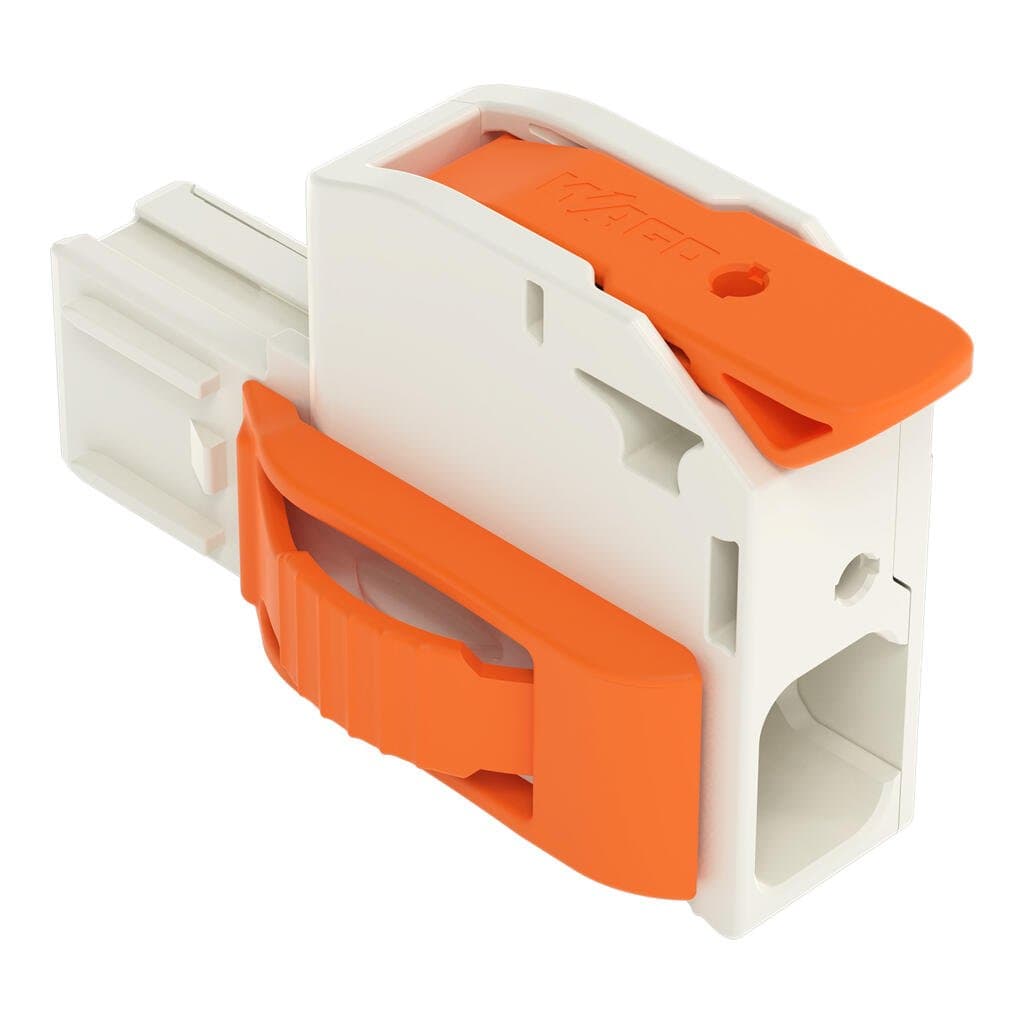

Product Model
832-1101/011-000/037-000
Key Features
- 1Easy field wiring via spring pressure connection technology.
- 2Tool-free connection of cross-sections up to 25 mm² via lever.
- 3Suitable for voltages up to 1,000 V and currents up to 76 A.
- 4Replaces crimped connections in large cross-sectional areas.
- 5Push-in CAGE CLAMP® connection suitable for all conductor types.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Clamping units | 1 | Total number of potentials | 1 |
| Number of connection types | 1 | Number of levels | 1 |
| Pin spacing | 10.16 mm / 0.4 inches | Width | 33.62 mm / 1.324 inches |
| Height | 29.1 mm / 1.146 inches | Depth | 49.8 mm / 1.961 inches |
| Variable coding | Yes | Anti-rotation protection | Yes |
| Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
| Mismating protection | Yes | Plugging without loss of pin spacing | No |
| Locking of plug-in connection | Lateral locking lever | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polybutylene terephthalate (PBT) | Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) | Material of the additional spring for socket contact | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Silver |
| Fire load | 0.327MJ | Actuator color | orange |
| Weight | 16g | Limit temperature range | -60 … +120 °C |
| Processing temperature | -35 … +60 °C | ETIM 9.0 | EC001284 |
| ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 24 pcs | Packaging type | not specified |
| Country of origin | PL | GTIN | 4066966398540 |
| Customs tariff number | 85366990990 | RoHS Compliance Status | Compliant,No Exemption |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 1000V |
| Rated impulse voltage (III / 3) | 8kV | Rated voltage (III/2) | 1000V |
| Rated surge voltage (III/2) | 8kV | Nominal voltage (II/2) | 1000V |
| Rated surge voltage (II/2) | 8kV | Rated current | 76A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Approvals per | CSA |
| Rated voltage UL (Use Group B) | 600V | Rated current UL (Use Group B) | 66A |
| Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 66A |
| Rated voltage (UL 1977) | 600V | Rated current UL 1977 | 85A |
| Rated voltage CSA (Use Group B) | 600V | Rated current CSA (Use Group B) | 66A |
| Rated voltage CSA (Use Group C) | 600V | Rated current CSA (Use Group C) | 66A |
| Connection technology | Push-in CAGE CLAMP? | Actuation type | Lever |
| Solid conductor | 0.75 … 16 mm2 / 18 … 4 AWG | Fine-stranded conductor | 0.75 … 25 mm2 / 18 … 4 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.75 … 16 mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.75 … 16 mm2 |
| Strip length | 18 … 20 mm / 0.71 … 0.79 inches | Number of poles | 1 |
| Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
