Product Model

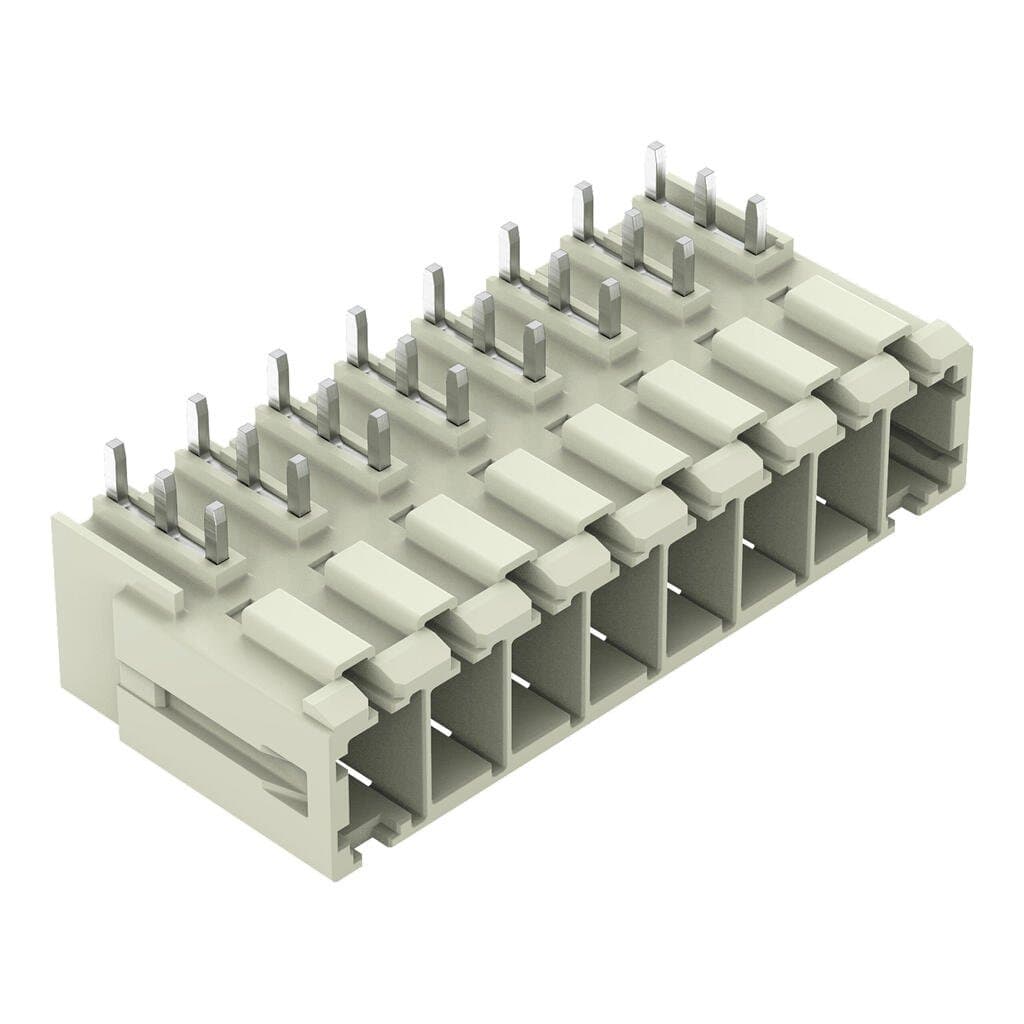

831-3648
Key Features
- 1100% Mismating Protection: Ensures secure and reliable connections.
- 2High Electrical and Mechanical Stability: Three solder pins per pole provide robust performance.
- 3Versatile Mounting Options: Can be mounted horizontally or vertically via straight or angled solder pins.
- 4Compliant with DIN EN 61984: Meets safety standards for connectors without breaking capacity.
- 5Industrial-Grade Connectivity: Ideal for various industrial applications requiring efficient and safe connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other pole numbers |
| Total number of potentials | 8 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 7.62?mm?/ 0.3?inches |
| Solder pin length | 4mm | Solder pin dimensions | 1 x 1.2?mm |
| Drilled hole diameter with tolerance | 1.7(+0.1)mm | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Male header |
| Connector (connection type) | for PCB | Mismating protection | Yes |
| Plugging without loss of pin spacing | No | Mating direction to the PCB | 180° |
| Locking of plug-in connection | none | PCB contact | THT |
| Solder pin arrangement | over the entire male connector (in-line) | Number of solder pins per potential | 3 |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Weight | 22.1g |
| Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 12?pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4066966134964 | Customs tariff number | 85366930000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
| Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
| Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
| Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group C) | 300V |
| Rated current UL (Use Group C) | 42A | Rated voltage UL (Use Group D) | 600V |
| Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
| Rated current CSA (Use Group C) | 41A | Rated voltage CSA (Use Group D) | 600V |
| Rated current CSA (Use Group D) | 5A | Number of poles | 8 |
Specifications may be subject to change without notice
