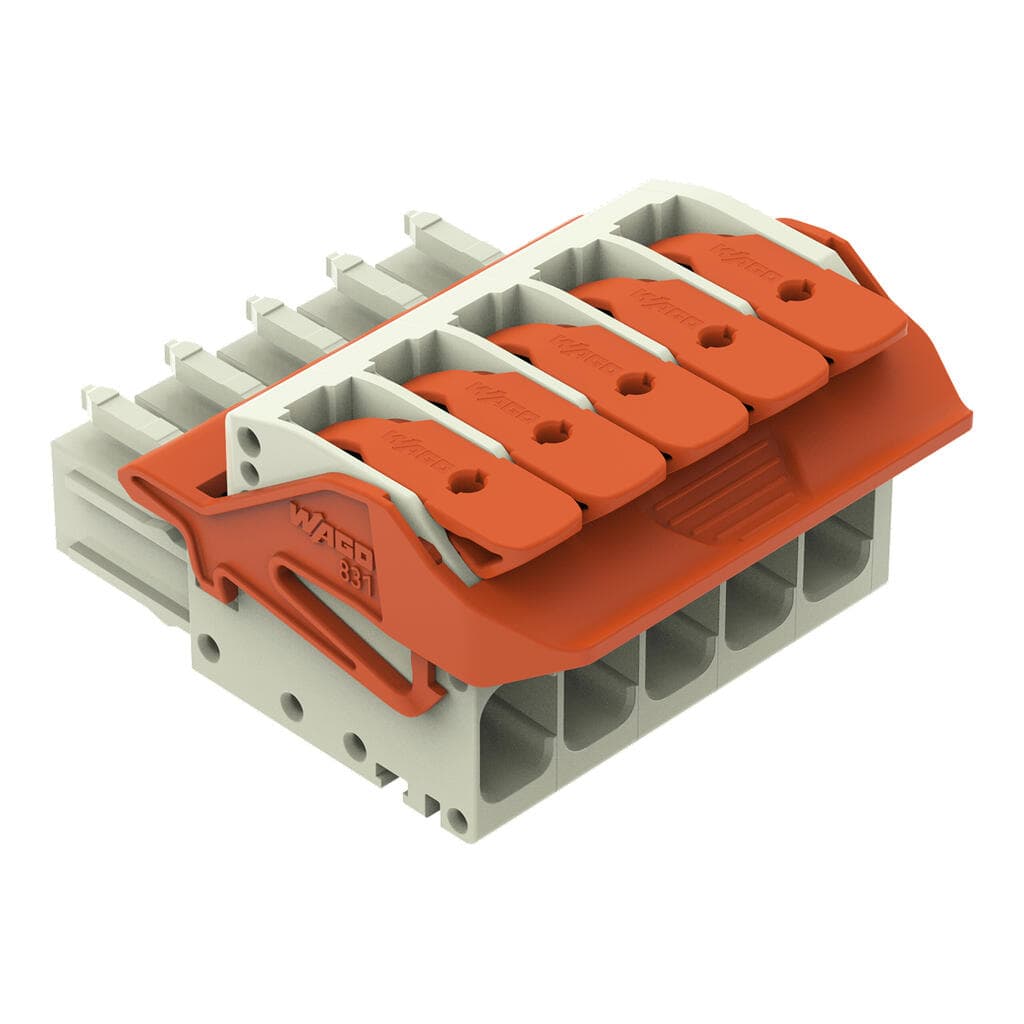

Product Model
831-1105/320-000
Key Features
- 1100% Mismating Protection: Ensures secure and reliable connections.
- 2Push-in CAGE CLAMP Technology: Easy and tool-free termination of conductors.
- 3Rated Voltage of 1000V: Suitable for high-voltage applications.
- 4Light Gray Color: Durable and visually appealing design.
- 5Universal Connection: Compatible with all conductor types, including solid and fine-stranded conductors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Other colors |
| Total number of potentials | 5 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 7.62?mm?/ 0.3?inches |
| Width | 43?mm?/ 1.69?inches | Height | 25?mm?/ 0.984?inches |
| Depth | 50.75?mm?/ 1.998?inches | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female connector/socket |
| Connector (connection type) | for conductor | Mismating protection | Yes |
| Plugging without loss of pin spacing | No | Locking of plug-in connection | Frontal locking lever |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Actuator color | orange | Weight | 34.4g |
| Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 20?pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4066966249583 | Customs tariff number | 85366990990 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 800V | Rated impulse voltage (III / 3) | 8kV |
| Rated voltage (III/2) | 1000V | Rated surge voltage (III/2) | 8kV |
| Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 8kV |
| Rated current | 41A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group C) | 600V |
| Rated current UL (Use Group C) | 37A | Rated voltage UL (Use Group D) | 600V |
| Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 600V |
| Rated current CSA (Use Group C) | 35A | Rated voltage CSA (Use Group D) | 600V |
| Rated current CSA (Use Group D) | 5A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Lever | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
| Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.5 … 6?mm2 | Strip length | 11 … 13?mm?/ 0.43 … 0.51?inches |
| Number of poles | 5 | Conductor entry direction to mating direction | 0° |
Specifications may be subject to change without notice
