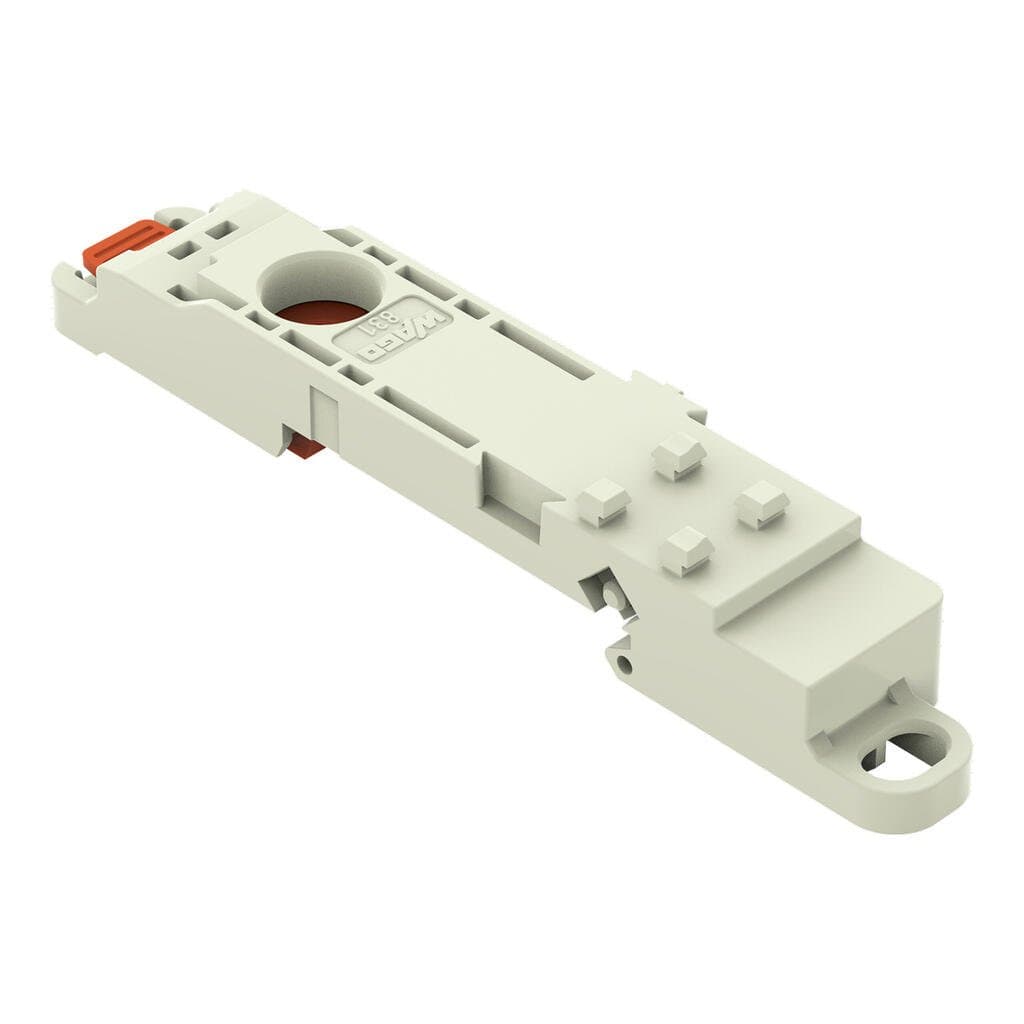

Product Model
831-1038
Key Features
- 10.441 in H x 0.594 in W x 3.48 in D dimensions for easy installation.
- 20.232 MJ fire load ensures reliable performance in demanding environments.
- 3Made from polybutylene terephthalate (PBT) for long-lasting durability.
- 4Suitable for DIN rail and panel mounting, with a pin spacing of 7.62 mm.
- 5RoHS compliant and meets REACH regulations, ensuring environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 15.1?mm?/ 0.594?inches | Height | 11.2?mm?/ 0.441?inches |
| Height from upper-edge of DIN-rail | 6.6?mm?/ 0.26?inches | Depth | 88.4?mm?/ 3.48?inches |
| Mounting type | Panel mounting | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polybutylene terephthalate (PBT) | Flammability class per UL94 | V0 |
| Fire load | 0.232MJ | Weight | 6.5g |
| Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
| ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 12?pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4066966112412 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
