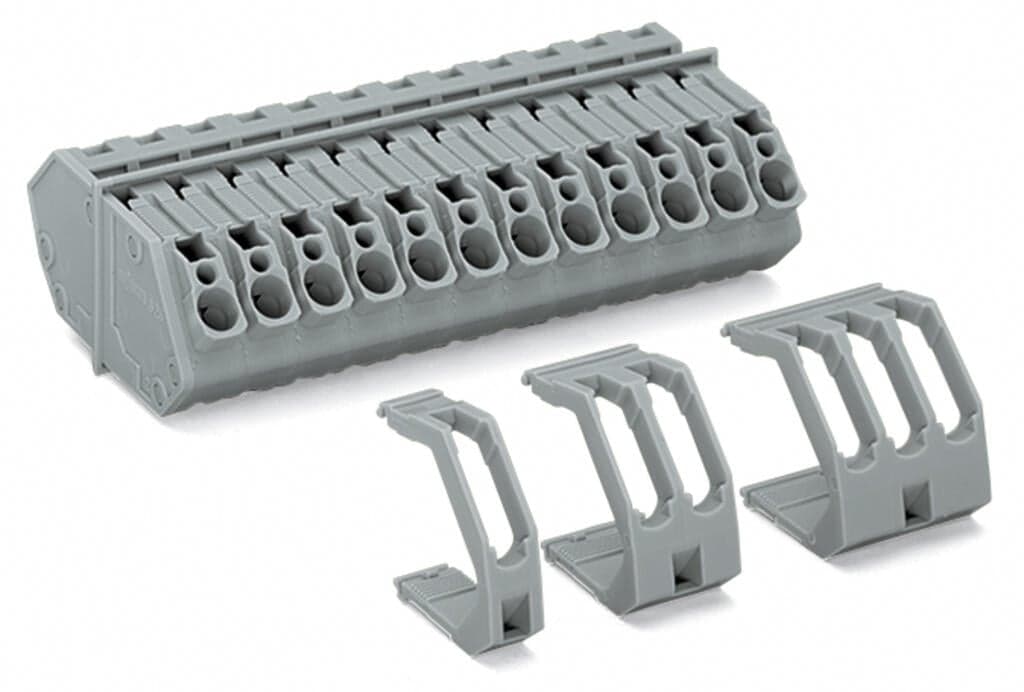

Product Model
826-162
Key Features
- 1Tool-free installation with screwdriver-actuated CAGE CLAMP connections.
- 2Supports a rated current of 32A for efficient power distribution.
- 3Gray unit with 7mm pin spacing, suitable for plate thickness 1-4 mm.
- 4Accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG.
- 5Direct ground contact with enclosure/panel for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 4 |
| Total number of potentials | 2 | Number of connection types | 2 |
| Number of levels | 1 | Pin spacing | 7?mm?/ 0.276?inches |
| Width | 15.5?mm?/ 0.61?inches | Height | 23.55?mm?/ 0.927?inches |
| Depth | 42.5?mm?/ 1.673?inches | Housing sheet thickness | 1 … 4?mm?/ 0.039 … 0.157?inches |
| Mounting type | Feed-through mounting | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.368MJ |
| Weight | 11.8g | Limit temperature range | -60 … +105?°C |
| Processing temperature | -35 … +60?°C | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918532679 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 32A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Ratings (note) | Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (conductor-to-conductor) per IEC/EN 60664-1. | Approvals per | CSA |
| Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 20A |
| Rated voltage UL (Use Group C) | 150V | Rated current UL (Use Group C) | 20A |
| Rated voltage UL (Use Group D) | 300V | Rated current UL (Use Group D) | 10A |
| Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 20A |
| Rated voltage CSA (Use Group C) | 150V | Rated current CSA (Use Group C) | 20A |
| Rated voltage CSA (Use Group D) | 300V | Rated current CSA (Use Group D) | 10A |
| Connection technology | CAGE CLAMP? | Actuation type | Operating tool |
| Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 |
| Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Number of poles | 2 |
Specifications may be subject to change without notice
