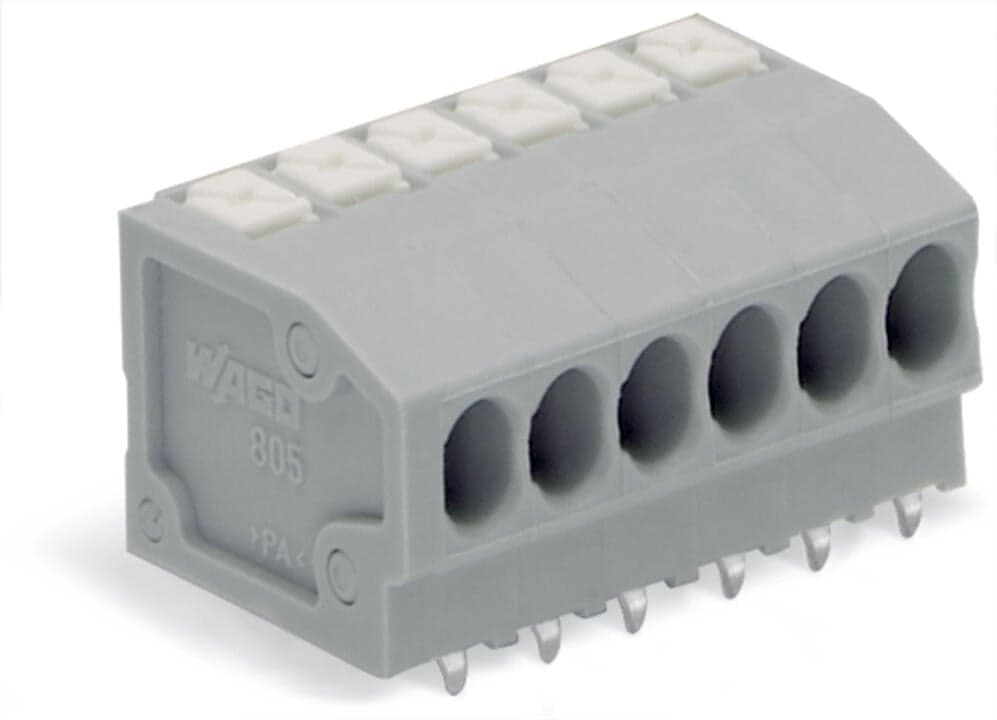

Product Model
805-352
Key Features
- 1Reliable and efficient connectivity solutions for secure and maintenance-free connections.
- 2Designed for use with solid and fine-stranded conductors, including those with insulated ferrules.
- 3Push-in CAGE CLAMP technology ensures easy and tool-free operation.
- 4Rated voltage UL (Use Group B): 300V, rated current UL (Use Group B): 10A.
- 5Compatible with various conductor sizes from 0.2 to 1.5 mm² and 24 to 16 AWG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 2 |
| Total number of potentials | 2 | Number of connection types | 1 |
| Number of levels | 1 | Number of test slots | 0 |
| Pin spacing | 3.5?mm?/ 0.138?inches | Width | 8.5?mm?/ 0.335?inches |
| Height | 13.7?mm?/ 0.539?inches | Height from the surface | 10.5?mm?/ 0.413?inches |
| Depth | 13.5?mm?/ 0.531?inches | Solder pin length | 3.2mm |
| Solder pin dimensions | 0.5 x 0.75?mm | Drilled hole diameter with tolerance | 1.1(+0.1)mm |
| PCB contact | THT | Solder pin arrangement | over the entire terminal strip (in-line) |
| Number of solder pins per potential | 1 | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin | Fire load | 0.022MJ |
| Weight | 1.1g | Limit temperature range | -60 … +105?°C |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 600?(150)?pcs |
| Packaging type | box | Country of origin | PL |
| GTIN | 4055143388498 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
| Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
| Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
| Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 150V |
| Rated current UL (Use Group C) | 10A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Solid conductor | 0.2 … 1.5?mm2?/ 24 … 16?AWG |
| Fine-stranded conductor | 0.2 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1?mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1?mm2 | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
| Conductor connection direction to PCB | 0° | Number of poles | 2 |
Specifications may be subject to change without notice
