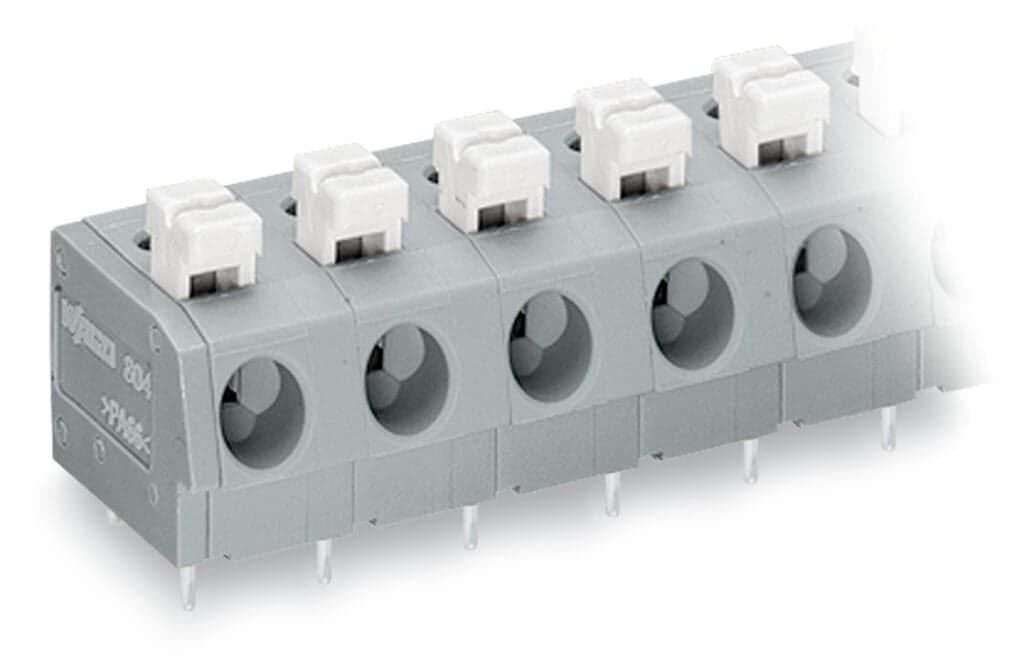

Product Model
804-302
Key Features
- 1Efficient Connection Solution: Push-in cage clamp connection simplifies conductor termination.
- 2High Current Rating: Supports up to 24 A rated current for reliable circuit operation.
- 3Customizable Internal Commoning: Enables internal commoning of ground conductors, reducing routing complexity.
- 4Versatile Conductor Accommodation: Accepts conductors with cross-sections up to 12 AWG and insulation diameters up to 4.2 mm.
- 5Durable Construction: Made from high-quality materials including polyamide (PA66) and chrome nickel spring steel for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Variants: | Other pole numbers | Clamping units | 2 |
| Total number of potentials | 2 | Number of connection types | 1 |
| Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
| Width | 14?mm?/ 0.551?inches | Height | 18.1?mm?/ 0.713?inches |
| Height from the surface | 14.5?mm?/ 0.571?inches | Depth | 15?mm?/ 0.591?inches |
| Solder pin length | 3.6mm | Solder pin dimensions | 0.8 x 0.6?mm |
| Drilled hole diameter with tolerance | 1.1(+0.1)mm | PCB contact | THT |
| Solder pin arrangement | over the entire terminal strip (staggered) | Number of solder pins per potential | 2 |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.05MJ | Weight | 2.4g |
| Limit temperature range | -60 … +105?°C | Product Group | 4 (Printed Circuit Connectors) |
| eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
| ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 340?(85)?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4044918515399 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
| Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
| Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
| Rated current | 24A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
| Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
| Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group D) | 300V |
| Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
| Rated current CSA (Use Group B) | 10A | Rated voltage CSA (Use Group D) | 300V |
| Rated current CSA (Use Group D) | 10A | Connection technology | Push-in CAGE CLAMP? |
| Actuation type | Push-button | Solid conductor | 0.25 … 2.5?mm2?/ 20 … 12?AWG |
| Fine-stranded conductor | 0.25 … 2.5?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 | Strip length | 10 … 11?mm?/ 0.39 … 0.43?inches |
| Conductor connection direction to PCB | 0° | Number of poles | 2 |
Specifications may be subject to change without notice
