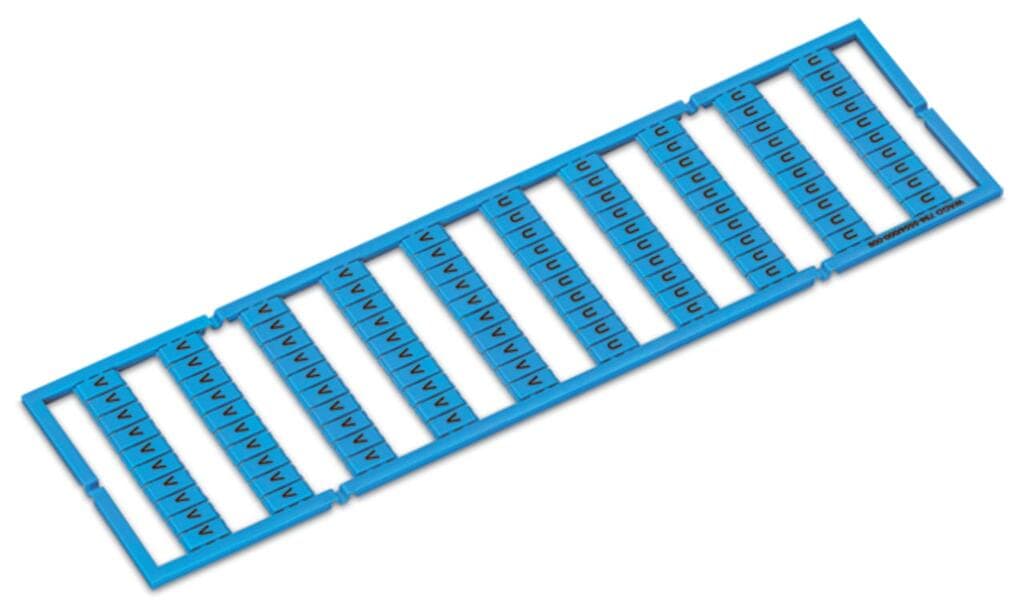

Product Model
794-5554/000-006
Key Features
- 1Marked with UV-resistant symbols for long-lasting visibility.
- 2Designed for horizontal marking on terminal blocks.
- 3Stretchable 5 - 5.2 mm, snap-on type for easy installation.
- 4Available in blue color (51156003) for clear visibility.
- 5Meets EN 60998-1:2004 and EN 60068-2-5:2010 standards for smear resistance and UV resistance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Marking method | Thermal transfer | Marking | U/V |
| Marking (number) | 50 | Marking direction | Horizontal marking |
| Marking color | black | Marking type | Symbol |
| Marking differentiation | Same symbols per strip | Delivery form | Marker card |
| Delivery form configuration | 10 strips with 10 markers per card | Flammability class per UL94 | V2 |
| Marker/strip width | 5 … 5.2?mm | Marker width | 5mm |
| Smear resistance | EN 60998-1:2004 | Color | blue |
| UV resistance | EN 60068-2-5:2010 Procedure B | Halogen-free | Yes |
| Weight | 8.8g | Fire load | 0.264MJ |
| eCl@ss 10.0 | 27-14-11-37 | eCl@ss 9.0 | 27-14-11-37 |
| ETIM 9.0 | EC000761 | ETIM 8.0 | EC000761 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(5)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454000554 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
