Product Model
793-501/000-006
Key Features

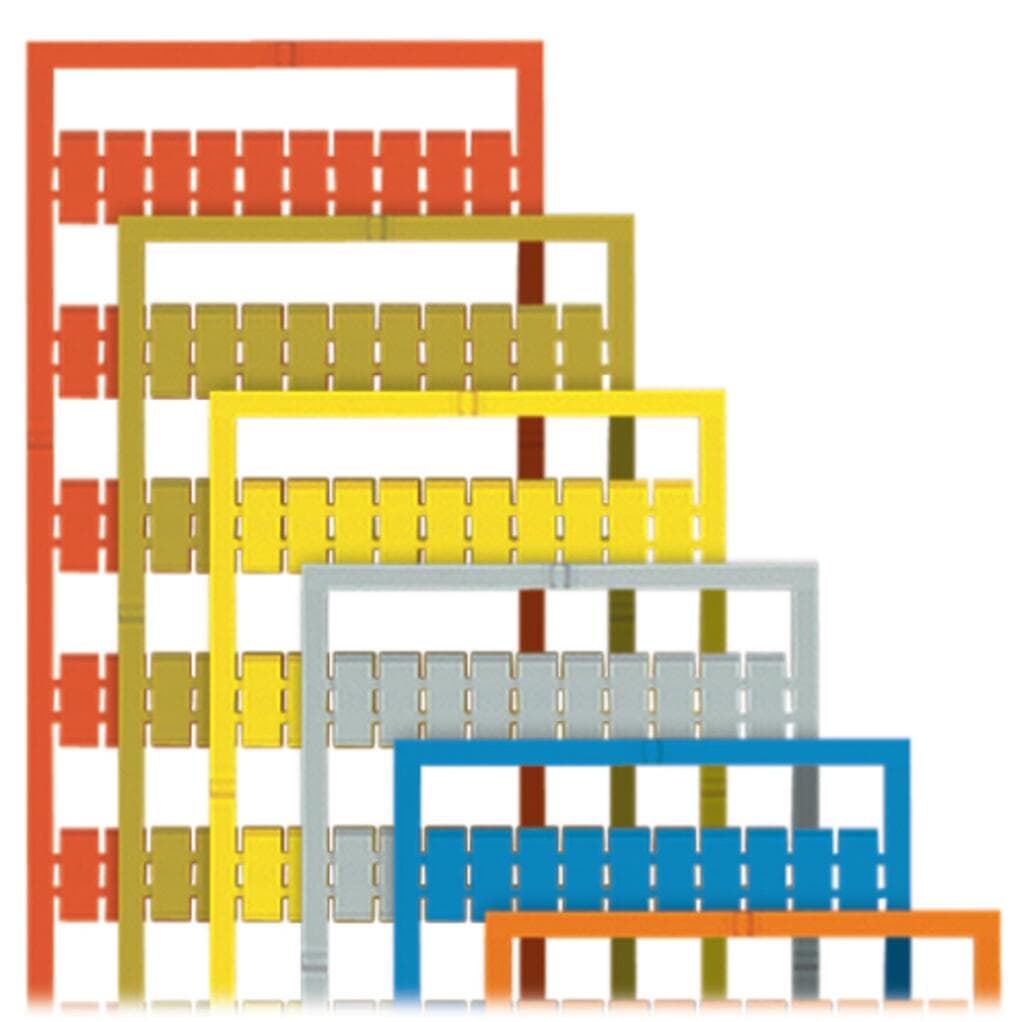

- 1Snap-on marking card for terminal blocks, available in various colors.
- 2Simple snap-on mechanism ensures quick and secure attachment.
- 3Compatible with terminal blocks of widths 5 to 17.5 mm.
- 4Made from high-quality, non-stretchable material for long-lasting use.
- 5Available in blue, gray, orange, light green, and violet for clear identification.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Marking method | plotting | Marking | plain |
| Delivery form | Marker card | Delivery form configuration | 10 strips with 10 markers per card |
| Flammability class per UL94 | V2 | Marker/strip width | 5?mm |
| Marker width | 5mm | Smear resistance | EN 60998-1:2004 |
| Color | blue | UV resistance | EN 60068-2-5:2010 Procedure B |
| Halogen-free | Yes | Weight | 9g |
| Fire load | 0.27MJ | Product Group | 2 (Terminal Block Accessories) |
| eCl@ss 10.0 | 27-14-11-37 | eCl@ss 9.0 | 27-14-11-37 |
| ETIM 9.0 | EC000761 | ETIM 8.0 | EC000761 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(5)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332624305 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
