Product Model

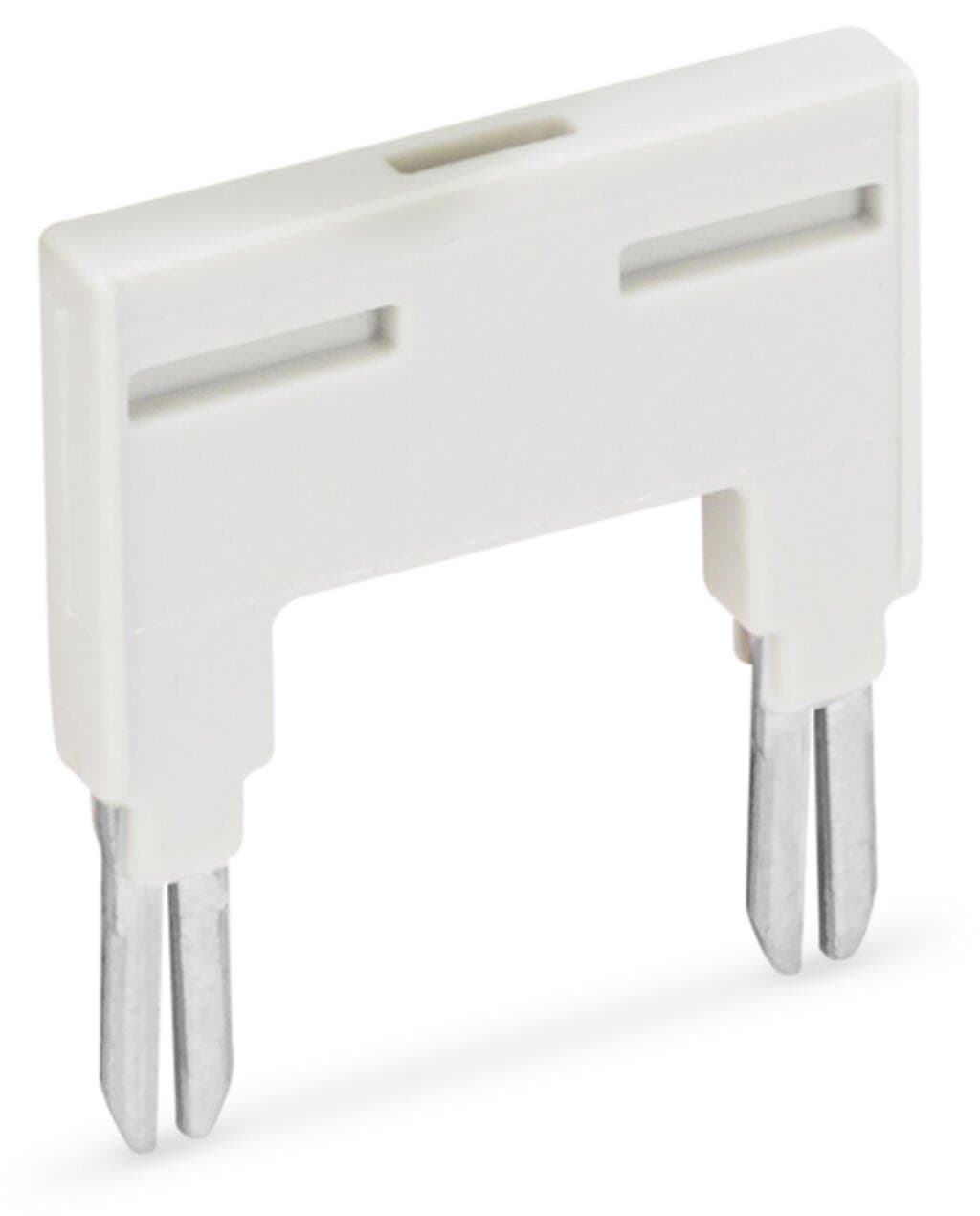

788-113
Key Features
- 1Insulated Design: Ensures safe electrical connections with its insulated construction.
- 2Comb-Style Jumper: Easy to use and install, perfect for cross-connection needs.
- 3High Current Rating: Supports up to 18 A, making it suitable for various electrical applications.
- 4Compact Size: Measures 0.756 in W x 0.122 in D, ideal for tight spaces.
- 5Durable Material: Made from high-quality materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated current | 18A | Width | 19.2?mm?/ 0.756?inches |
| Height | 21.5?mm?/ 0.846?inches | Depth | 3.1?mm?/ 0.122?inches |
| Color | light gray | Fire load | 0.012MJ |
| Weight | 1.6g | eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC002586 |
| ETIM 8.0 | EC002586 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 200?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918508605 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
