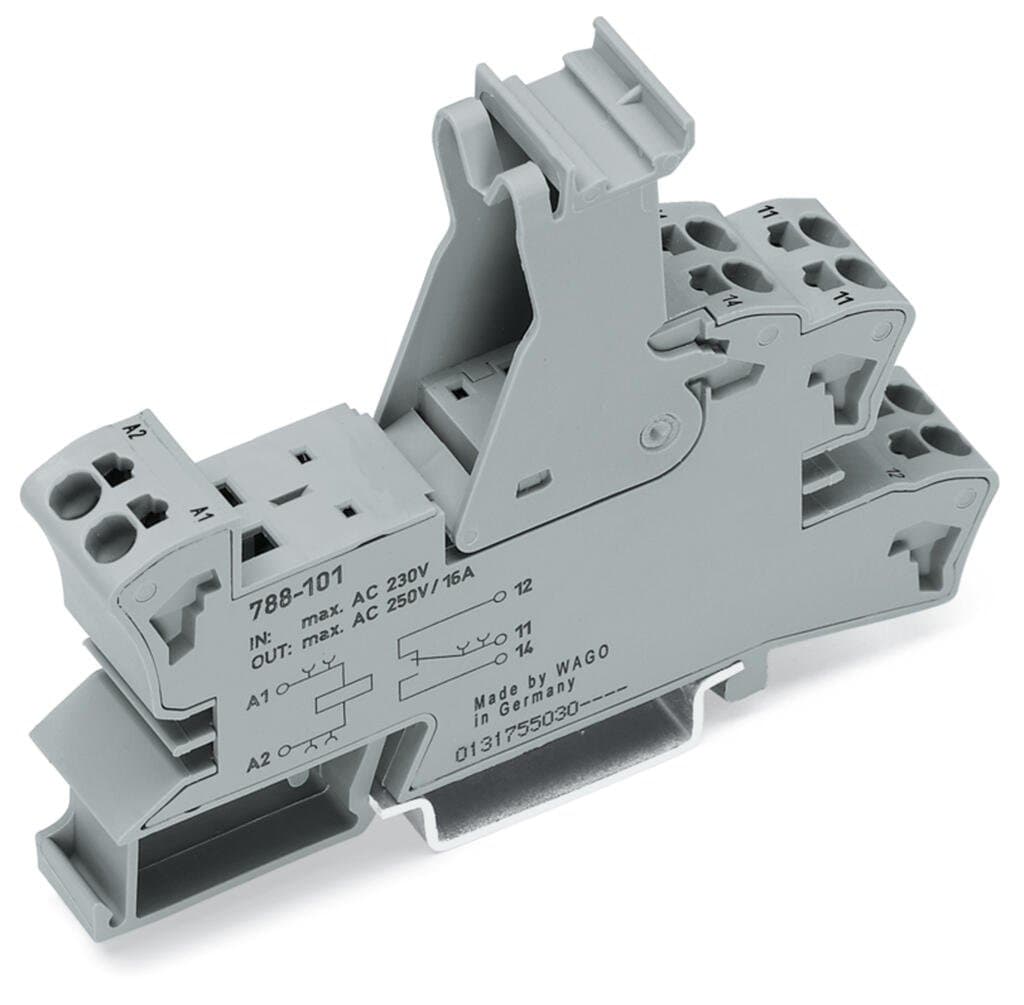

Product Model
788-101
Key Features
- 1High Amperage Rating: 16A amperage rating for reliable current handling.
- 2Compact Design: Dimensions of 3.386 in H x 0.59 in W x 2.52 in D for easy installation.
- 3Durable Enclosure: IP20 protection type ensures robustness and safety.
- 4Versatile Connection: Push-in CAGE CLAMP connection technology for secure connections.
- 5Wide Temperature Range: Operates from -40°F to 70°F, suitable for various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | The specified technical data are maximum values. They may be limited by the accessories used. | Rated voltage | 300V |
| Overvoltage category | II | Pollution degree | 3 |
| Dielectric strength (control/load circuit) (AC, 1?min) | 3.6?kVrms | Dielectric strength (open contact) (AC, 1?min) | 1?kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) | Insulation type (between adjacent devices of the same type) | Basic insulation |
| Protection type | IP20 | Connection technology | Push-in CAGE CLAMP? |
| Solid conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
| Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 15?mm?/ 0.59?inches |
| Height | 86?mm?/ 3.386?inches | Depth from upper-edge of DIN-rail | 64?mm?/ 2.52?inches |
| Mounting type | DIN-35 rail | Note (material data) | Information on material specifications can be found here |
| Color | gray | Fire load | 0.636MJ |
| Weight | 31g | Relative temperature index for plastic (RTI per UL) | 105°C |
| Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C | Ambient temperature (storage) | -40 … +80 °C |
| Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
| Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
| Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-16-03 | eCl@ss 9.0 | 27-37-16-03 |
| ETIM 9.0 | EC001456 | ETIM 8.0 | EC001456 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 15?(1)?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4050821591771 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage U<sub>N</sub> | AC/DC?230?V |
| Input voltage range | AC/DC?0 … 250?V | Nominal frequency range | ≤60?Hz |
| Number of changeover contacts | 1 | Limiting continuous current | 16?A |
| Switching Voltage, Max. | AC?300?V |
Specifications may be subject to change without notice
