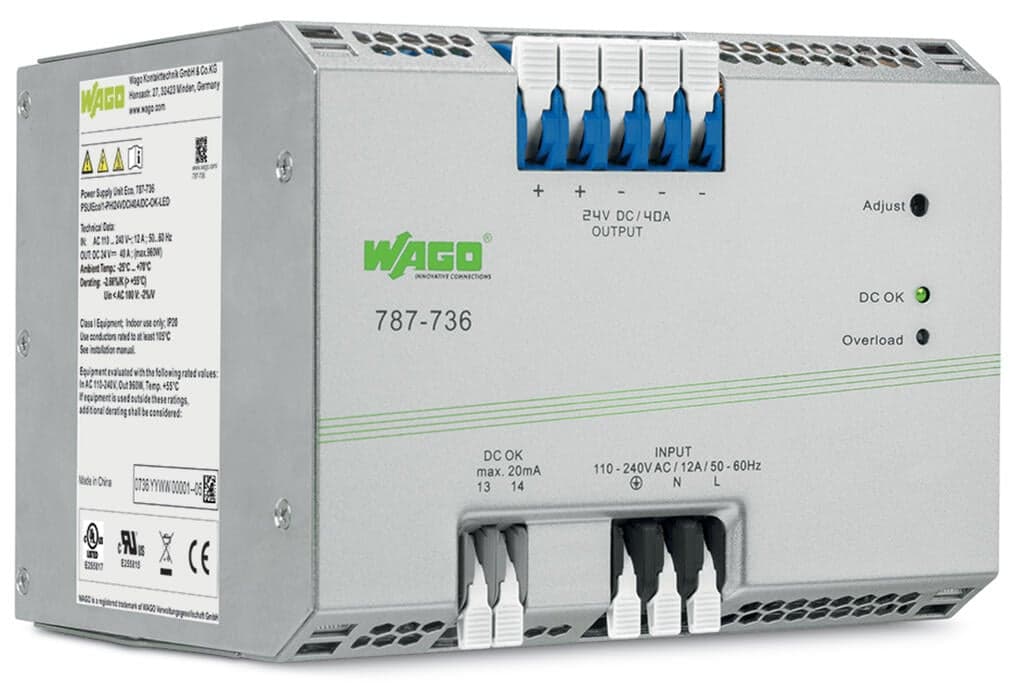

Product Model
787-736
Key Features
- 1Supports 110 to 240 V input voltage.
- 2Delivers 960 W of power with a 6 to 12 A amperage rating.
- 3Conveniently mounts on DIN rail for easy installation.
- 4Features IP20 protection and operates in ambient temperatures from -25°C to +70°C.
- 5Achieves 90% efficiency with natural convection cooling.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Isolation voltage (sec.-PE) | DC 0.7?kV | Protection class | I |
| Protection type | IP20; per EN 60529 | Overvoltage category | II |
| Pollution degree | 2 | Transient suppression (primary) | Varistor |
| Short-circuit-protected | Yes | Open-circuit-proof | Yes |
| Parallel operation | Yes | Series operation | Yes |
| MTBF | > 250,000 h (per IEC 61709) | Connection type 1 | Input/Signaling |
| Connection technology | CAGE CLAMP? | WAGO connector | WAGO 2706 Series |
| Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG |
| Strip length | 11 … 12?mm?/ 0.43 … 0.47?inches | Connection type 2 | Output |
| Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 2716 Series |
| Solid conductor 2 | 1.5 … 16?mm2?/ 16 … 6?AWG | Fine-stranded conductor 2 | 1.5 … 16?mm2?/ 16 … 6?AWG |
| Strip length 2 | 12 … 13?mm?/ 0.47 … 0.51?inches | Width | 170?mm?/ 6.69?inches |
| Height | 136?mm?/ 5.354?inches | Depth from upper-edge of DIN-rail | 150?mm?/ 5.91?inches |
| Mounting type | DIN-35 rail | Weight | 74.1g |
| Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 95% (no condensation permissible) | Derating | ?2.66 %/K (> 55 °C) |
| Climatic category | 3K3 (per EN 60721) | Conformity marking | CE |
| Standards/specifications | EN 61000-6-4 | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
| ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4050821748250 | Customs tariff number | 8504409510 |
| RoHS Compliance Status | Compliant,No Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Bulgaria) | a62607a7-2856-4d66-af7d-40c67b37a0f5 | SCIP notification number (Czech Republic) | 6a5b31a3-c7f4-42d8-9112-e5ab02ad13dd |
| Phases | 1 | Nominal input voltage [V] | 1 x AC 100 ... 240 V |
| Input voltage range | 1 x AC?90 … 264?V;?DC?130 … 373?V | Input voltage derating | -2 %/V (< 100 VAC) |
| Nominal mains frequency range | 47 … 63 Hz;0 Hz | Input current I<sub>i</sub> | ≤?6?A (230?VAC);?≤?12?A (115 VAC) |
| Inrush current | ≤?30?A | Power factor | ≥?0.94? (230?VAC);?≥?0.98? (115 VAC) |
| Power factor correction (PFC) | Active | Mains failure hold-up time | ≥?17?ms (230?VAC) |
| Nominal output voltage [V] | DC?24?V (SELV) | Output voltage range | DC?24?V |
| Default setting | DC?24?V | Nominal output current I<sub>o nom</sub> | 40?A (24?VDC) |
| Nominal output power | 960W | Deviation | ≤?1?% |
| Residual ripple | ≤?100?mV (peak-to-peak) | Overload behavior | Constant power (in overload range: 1.15 … 1.4 x Io nom); Shutdown and automatic restart in the event of a short circuit |
| Signaling | 1 x LED DC OK (green) | Operation status indicator | Green LED (24 VDC OK) |
| Power loss P<sub>l</sub> | ≤?107?W (230 VAC; nominal load) | Efficiency (typ.) | 90?% |
| Internal fuse | T 20 A / 250 VAC | Backup fusing (required) | An external DC fuse is required for the DC input voltage. |
| Backup fusing (recommended) | Circuit breaker: 13 A, 16 A, 20 A; Tripping characteristic: B or C |
