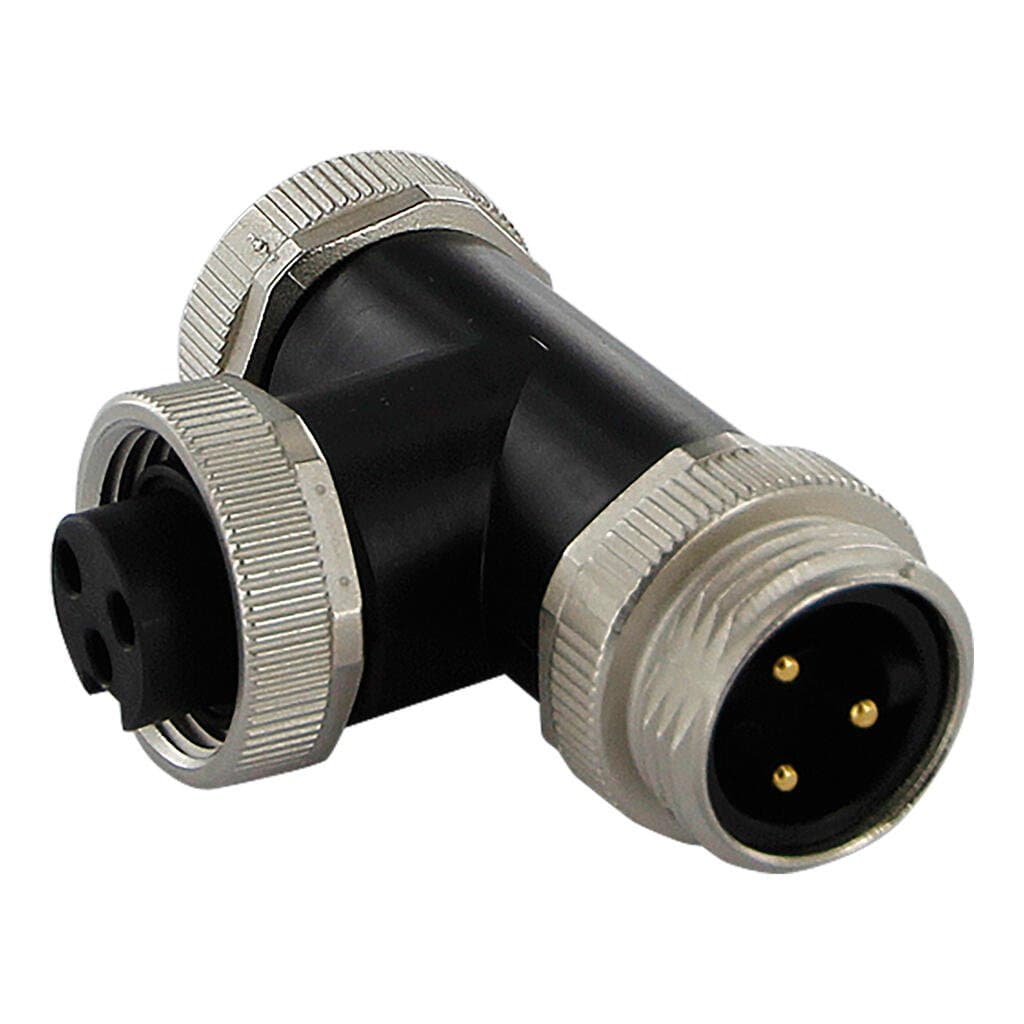

Product Model
787-6716/9000-1000
Key Features
- 1High Current Rating: Supports up to 9A for reliable connectivity.
- 2IP67 Protection: Durable and resistant to harsh environments.
- 37/8" 3-Pole Connection: Industry-proven technology for various conductors.
- 4Vibration- and Shock-Resistant: Integrated locking mechanism ensures secure connections.
- 5PUR Coating: Provides long-lasting protection against corrosion and wear.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated surge voltage | 4kV | Protection type | IP67 |
| Connection technology | 7/8"; 3-pole | Connection technology 2 | 2 x 7/8"; 3-pole; socket |
| Weight | 71.7g | Ambient temperature (operation) | -25 … +80 °C |
| ETIM 9.0 | EC002635 | ETIM 8.0 | EC002635 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | bag | Country of origin | DE |
| GTIN | 4055143726863 | Customs tariff number | 8536694040 |
| RoHS Compliance Status | Compliant,No Exemption | Operating voltage | AC/DC?600?V |
| Operating current | 9A |
Specifications may be subject to change without notice
