Product Model

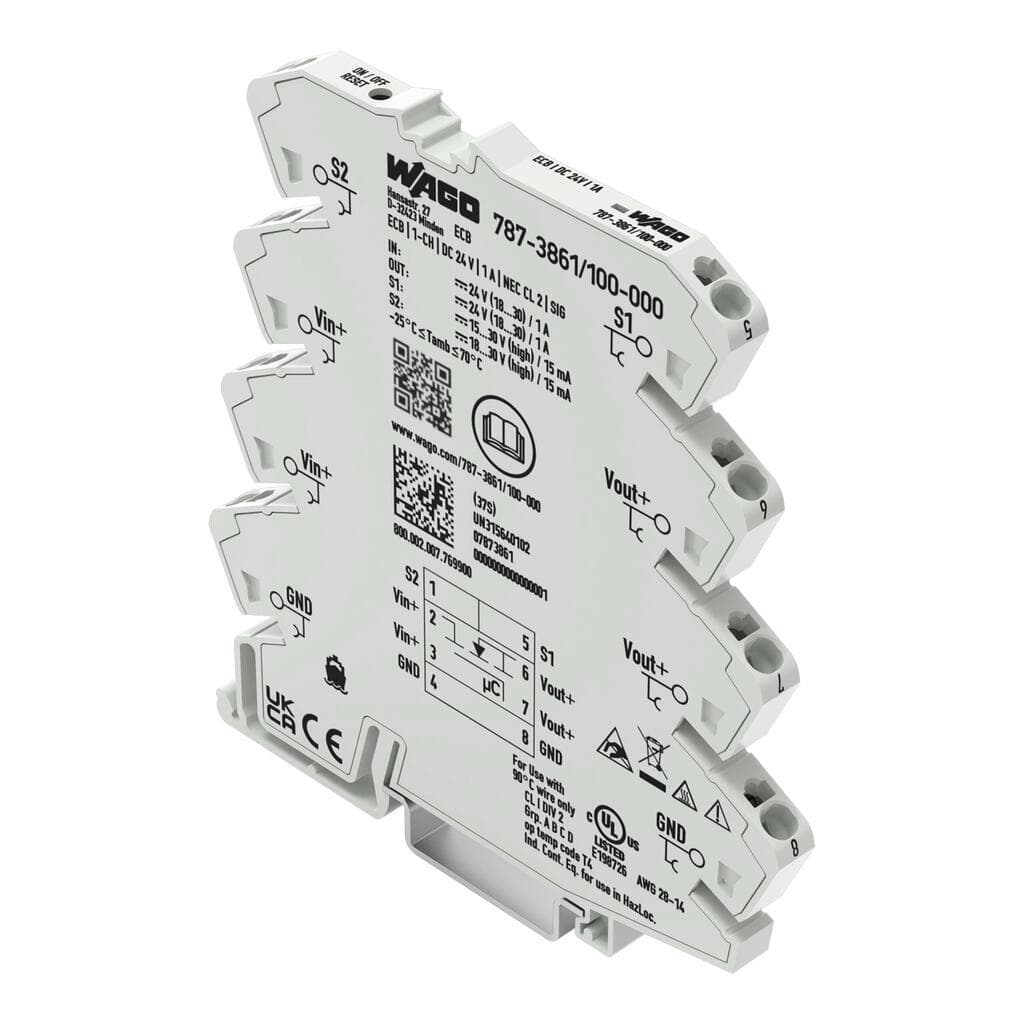

787-3861/100-000
Key Features
- 1Compact and efficient, perfect for tight spaces.
- 2Safely trips in the event of an overload or short circuit.
- 3Customizable status signal for single or group messages.
- 4Reset and switch on/off via remote input or local switch.
- 5Power loss ≤ 0.4 W (no load) with an efficiency of 98%.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | The device is designed for use in SELV circuits. | Isolation voltage (connectors – housing) | DC 1.5?kV |
| Protection class | III | Protection type | IP20; per EN 60529 |
| Reverse voltage protection | No | Transient suppression (primary) | Suppressor diode (33 V) |
| Parallel operation of single channels | Not permitted | Series operation | No |
| MTBF | 1,168,394 h | Number of jumper slots | 8 |
| Connection technology | Push-in CAGE CLAMP? | WAGO connector | WAGO 857 Series |
| Solid conductor | 0.08 … 2.5?mm2?/ 26 … 14?AWG | Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG |
| Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Note (conductor cross-section) | Depending on the output current, use the conductor cross-sections tested and approved by UL:26 … 14 AWG (0.5 A);24 … 14 AWG (1 A) |
| Width | 6?mm?/ 0.236?inches | Height | 94 mm / 3.701 inches |
| Depth from upper-edge of DIN-rail | 97.8 mm / 3.85 inches | Mounting type | DIN-35 rail |
| Fire load | 0.631MJ | Weight | 55.6g |
| Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 10 … 95?% (no condensation permissible) | Derating | No derating |
| Operating altitude | ≤ 2000 m (a.s.l.) | Conformity marking | CE; UKCA |
| Standards/specifications | EN 61000-6-2 | ETIM 9.0 | EC001440 |
| ETIM 8.0 | EC001440 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1 pcs | Packaging type | Bag |
| Country of origin | IN | Customs tariff number | 85363010900 |
| CAS-No. | 11120-22-2 | REACH Candidate List Substance | Diboron trioxide |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 9e067f59-577d-4cfb-8b69-04df1b193138 | SCIP notification number (Belgium) | a917f448-f4b2-4ea1-a678-678ebc4b93ef |
| SCIP notification number (Bulgaria) | 34f9cdb2-b53b-49f1-a947-7641bd1eed82 | SCIP notification number (Czech Republic) | 04616c3f-ac9f-4f17-a537-4789d7e8165f |
| SCIP notification number (Denmark) | 1b2c0c5d-4143-4d8b-b5e7-02a050298f2e | SCIP notification number (Finland) | 10c1551d-b458-47cd-bbc4-b81ec6f05b40 |
| SCIP notification number (France) | 40f30069-59d8-4b3e-8328-48c0b37004ae | SCIP notification number (Germany) | 854b209f-d3ab-406b-828a-9d454d8dfc60 |
| SCIP notification number (Hungary) | c2f1f72a-0608-410c-8617-9305b2782cf5 | SCIP notification number (Netherlands) | 36aa65d4-861b-445a-ac3d-8becee207236 |
| SCIP notification number (Poland) | f10033e6-a0d4-4526-bc57-b3dc8a2ce172 | SCIP notification number (Romania) | cadcbf5e-8105-4fae-ab85-9d3a6691bb41 |
| SCIP notification number (Sweden) | 3c1a8af4-1e6c-46f6-9fa6-da05f95c7f9d | Nominal input voltage [V] | DC?24?V |
| Input voltage range | DC 18 … 30 V | Number of Channels | 1 |
| Nominal output voltage [V] | 1 x DC?24?V | Output voltage range | DC 18 … 30?V?(Ue? voltage drop) |
| Voltage drop | ≤?80?mV | Nominal output current I<sub>o nom</sub> | 1 x 1?A (fixed setting) |
| Default setting | switched off | Trip time | 4 ms … 100 s (load-dependent) |
| Switch-on capacity | >?50000?μF?(see instruction manual) | Switch-on behavior | Time-delayed channel switching (load-dependent, min. 0 ms/max. 500 ms) |
| Signaling | 1 x Status LED (green/yellow/red) | Operation status indicator | Green LED (channel OK) |
| Remote input | 1 x Control input (15 … 30 VDC (active high); 0 … 5 VDC (active low); max. 0.015 A) | Power loss P<sub>l</sub> | ≤ 0.4 W (no load) |
| Efficiency (typ.) | 98?% | Internal fuse | T 8 A |
| Overvoltage category | II | Pollution degree | 2 |
Specifications may be subject to change without notice
