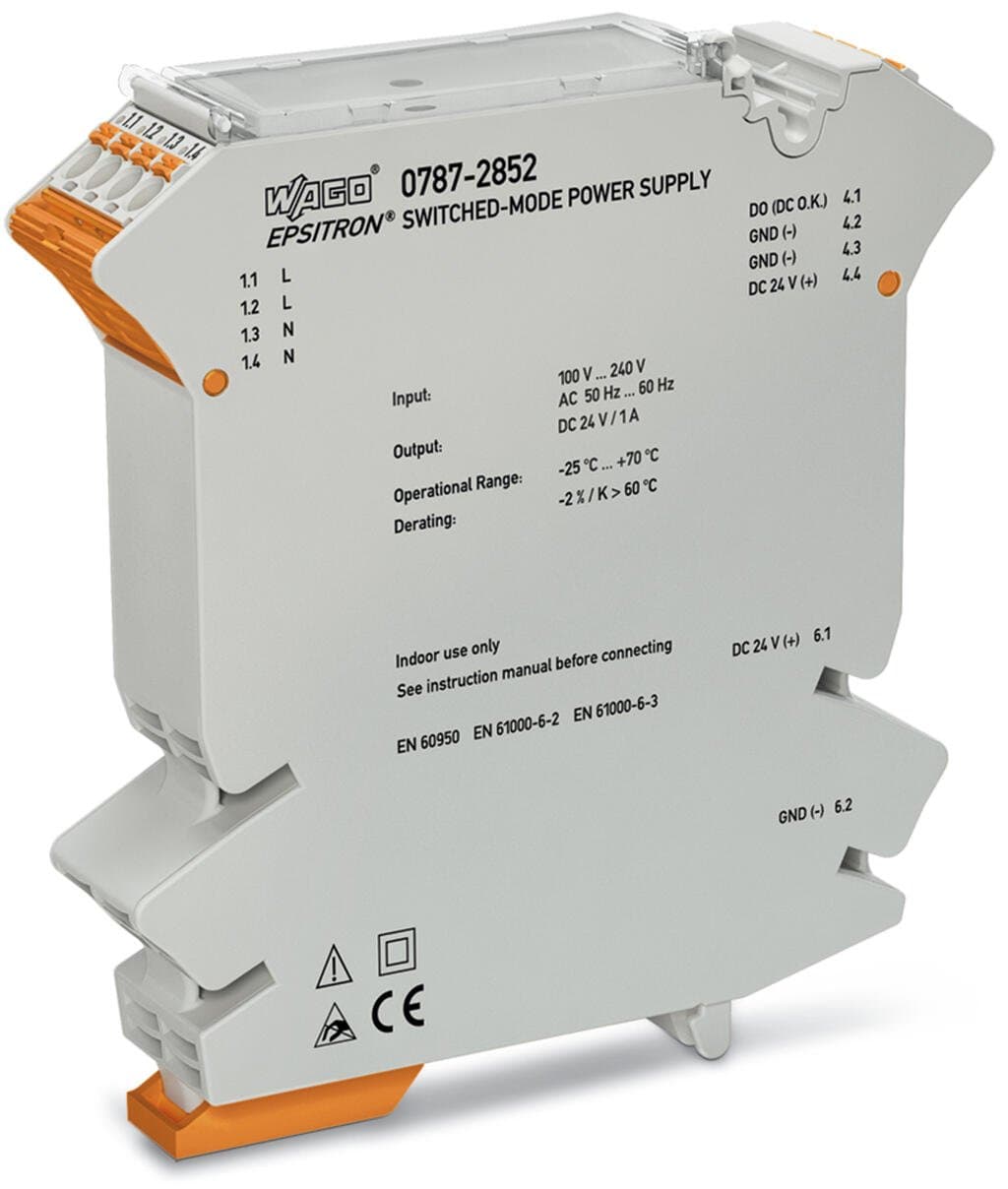

Product Model
787-2852
Key Features
- 1Equipped with Push-in CAGE CLAMP connections for secure and easy wiring.
- 2Built for DIN-35 rail mounting with a compact width of 22.5 mm.
- 3IP20 protection rating and overvoltage protection via varistor.
- 486% efficiency at nominal load (230 VAC) and 84% at nominal load (110 VAC).
- 5Suitable for single-phase AC or DC input, with a 24 VDC output at 1 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Protection class | II | Protection type | IP20; per EN 60529 |
| Pollution degree | 2 | Transient suppression (primary) | Varistor |
| Overvoltage protection; secondary | Internal protective circuit | Short-circuit-protected | Yes |
| Open-circuit-proof | Yes | Parallel operation | Yes, for 2 devices of the same type |
| Series operation | Yes, for 2 devices of the same type | MTBF | > 500,000 h (at 25 °C per IEC 61709) |
| Number of jumper slots | 4 | Connection type 1 | Input/Output/Signaling |
| Connection technology | Push-in CAGE CLAMP? | WAGO connector | picoMAX?5.0 |
| Solid conductor | 0.2 … 2.5?mm2?/ 24 … 10?AWG | Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 10?AWG |
| Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Width | 22.5?mm?/ 0.886?inches |
| Height | 105 mm / 4.122 inches | Depth from upper-edge of DIN-rail | 107 mm / 4.213 inches |
| Mounting type | DIN-35 rail | Fire load | 1.417MJ |
| Weight | 200g | Ambient temperature (operation) | -25 … +70 °C (Nominal mounting position; ?25 … +55 °C (in any mounting position)) |
| Ambient temperature (storage) | -25 … +85 °C | Relative humidity | 5 … 96?% (no condensation permissible) |
| Derating | ?2 %/K (> 60 °C) | Climatic category | 3K3 (per EN 60721) |
| Conformity marking | CE | Standards/specifications | EN 61000-6-2 |
| Standards/specifications (pending) | ATEX/IECEx | eCl@ss 10.0 | 27-04-07-01 |
| eCl@ss 9.0 | 27-04-07-01 | ETIM 9.0 | EC002540 |
| ETIM 8.0 | EC002540 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143295529 |
| Customs tariff number | 8504409510 | RoHS Compliance Status | Compliant,No Exemption |
| Phases | 1 | Nominal input voltage [V] | 1 x AC?100 … 240?V |
| Input voltage range | 1 x AC?85 … 264?V;?DC?120 … 372?V | Nominal mains frequency range | 47 … 63 Hz;0 Hz |
| Input current I<sub>i</sub> | ≤?0.28?A (240 VAC; Nominal load);?≤?0.49?A (100 VAC; Nominal load) | Inrush current | ≤?30?A |
| Power factor | ≥?0.6? (230 VAC; Nominal load; per EN 61000-3-2) | Power factor correction (PFC) | None |
| Mains failure hold-up time | ≥?20?ms (100?VAC) | Nominal output voltage [V] | DC?24?V (SELV) |
| Default setting | DC?24?V | Nominal output current I<sub>o nom</sub> | 1?A |
| Nominal output power | 24W | Deviation | ≤?2?% |
| Deviation, dynamic load change 10 … 90 % | ≤?1?% | Residual ripple | ≤?100?mV (peak-to-peak) |
| Current limitation | 1.1 x Io nom(typ.) | Overload behavior | Constant current |
| Signaling | 1 x LED DC OK (green) | Operation status indicator | Green LED (Uo> 21.5 V) |
| Power loss P<sub>l</sub> | ≤?1?W;?≤?4.3?W (230 VAC; nominal load) | Power loss (max.) P<sub>l (max.)</sub> | 5?W (100 VAC / 24 VDC; 1 A) |
| Efficiency (typ.) | 86?% (230 VAC; nominal load);?84?% (110 VAC; nominal load) | Internal fuse | T 2 A / 250 VAC |
| Backup fusing (recommended) | Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C |
