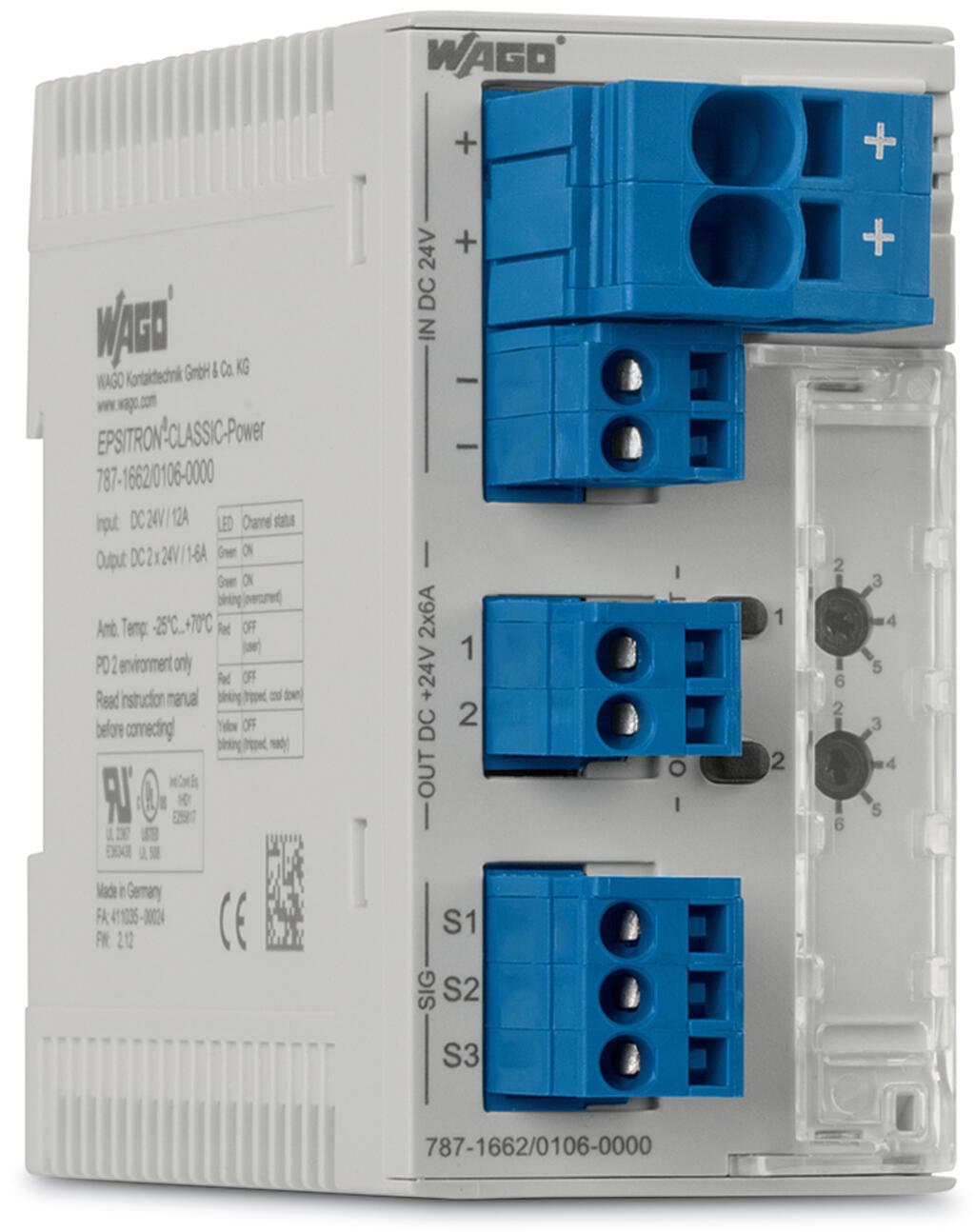

Product Model
787-1662
Key Features
- 1Adjustable output currents from 1A to 6A per channel.
- 2Compatible with 24 VDC systems, ensuring reliable operation.
- 3DIN rail mounting for easy installation and space-saving design.
- 4IP20 protection class, safeguarding against finger injury and solid impurities.
- 5Robust construction with a nominal life of over 500,000 hours.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Isolation voltage (connectors – housing) | DC 0.5?kV | Protection class | III |
| Protection type | IP20; per EN 60529 | Reverse voltage protection | No |
| Resistance to reverse feed | ≤?DC?35?V | Pollution degree | 2 |
| Transient suppression (primary) | Suppressor diode (33 V) | Parallel operation of single channels | Not permitted |
| Series operation | No | MTBF | > 500,000 h (per IEC 61709) |
| Connection type 1 | Input (+) | Connection technology | Push-in CAGE CLAMP? |
| WAGO connector | WAGO 831 Series | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
| Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
| Connection type 2 | Input (–); output; signaling | Connection technology 2 | CAGE CLAMP? |
| WAGO connector 2 | WAGO 721 Series | Solid conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor 2 | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Strip length 2 | 8 … 9?mm?/ 0.31 … 0.35?inches |
| Width | 45?mm?/ 1.772?inches | Height | 90?mm?/ 3.543?inches |
| Depth from upper-edge of DIN-rail | 115.5?mm?/ 4.547?inches | Mounting type | DIN-35 rail |
| Weight | 200g | Ambient temperature (operation) | -25 … +70 °C |
| Ambient temperature (storage) | -25 … +85 °C | Relative humidity | 5 … 96?% (no condensation permissible) |
| Derating | No derating | Conformity marking | CE |
| Standards/specifications | EN 61000-6-2 | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-37-18-02 | eCl@ss 9.0 | 27-37-18-02 |
| ETIM 9.0 | EC001440 | ETIM 8.0 | EC001440 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | Box | Country of origin | DE |
| Customs tariff number | 85363010900 | RoHS Compliance Status | Compliant,No Exemption |
| Nominal input voltage [V] | DC?24?V | Input voltage range | DC?18 … 30?V |
| Number of Channels | 2 | Nominal output voltage [V] | 2 x DC?24?V |
| Output voltage range | DC 18 … 30?V?(Ue? voltage drop) | Voltage drop | ≤?200?mV (10?A) (Input (+)) |
| Nominal output current I<sub>o nom</sub> | 2 x 2 / 3 / 4 / 6 / 8 / 10?A (adjustable for each channel via selector switch) | Default setting | DC?10?A;?switched on |
| Trip time | 16 ms … 100 s (load-dependent) | Switch-on capacity | >?50000?μF?per channel |
| Switch-on behavior | Time-delayed channel switching (load-dependent, min. 50?ms / max. 5 s) | Active current limitation | No |
| Current limitation | No | Signaling | 2 x LED (green/red/orange) |
| Operation status indicator | Green LED (channel OK) | Remote input | Reactivation of all tripped channels via 15 … 30 VDC pulse for min. 500 ms |
| Power loss P<sub>l</sub> | ≤?0.85?W;?≤?5.5?W (2 x 10 A) | Efficiency (typ.) | 99?% |
| Internal fuse | T 15 A per channel |
Specifications may be subject to change without notice
