Product Model

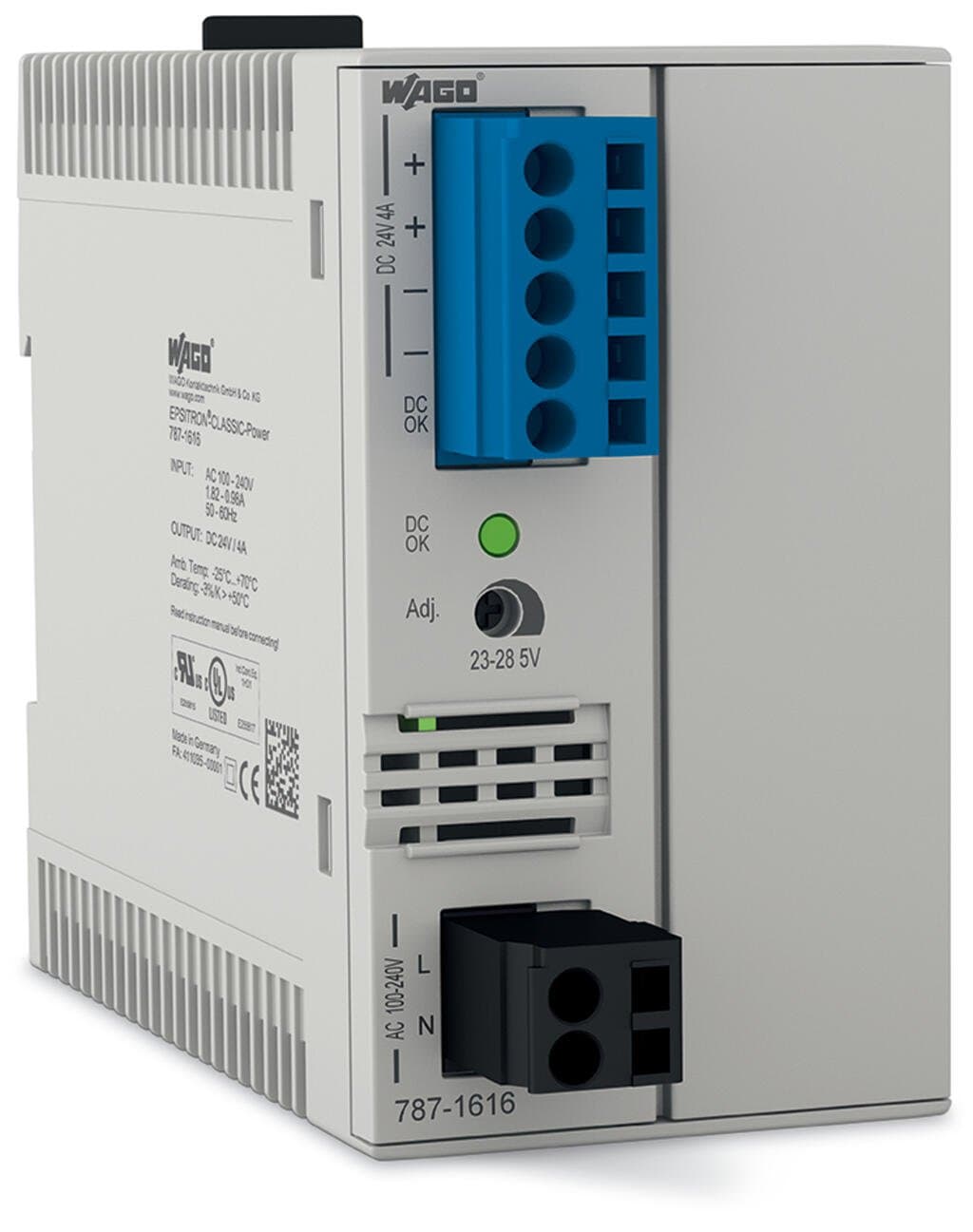

787-1616
Key Features
- 1Provides consistent 24VDC output voltage for stable operations.
- 2Offers 89% efficiency, reducing energy waste and increasing overall performance.
- 3Equipped with passive PFC, IP20 protection, and short-circuit protection for safe operation.
- 4Measures 90 mm x 52 mm, making it easy to integrate into DIN-35 rail systems.
- 5Exceeds 500,000 hours of mean time between failures (MTBF), ensuring long-lasting reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Protection class | II | Protection type | IP20; per EN 60529 |
| Overvoltage category | II | Pollution degree | 2 |
| Transient suppression (primary) | Varistor | Overvoltage protection; secondary | Internal protective circuit |
| Short-circuit-protected | Yes | Open-circuit-proof | Yes |
| Parallel operation | Yes | Series operation | Yes |
| MTBF | > 500,000 h (per IEC 61709) | Connection type 1 | Input/Output/Signaling |
| Connection technology | CAGE CLAMP? | WAGO connector | WAGO 721 Series |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Width | 52?mm?/ 2.047?inches |
| Height | 90?mm?/ 3.543?inches | Depth from upper-edge of DIN-rail | 119.5?mm?/ 4.705?inches |
| Mounting type | DIN-35 rail | Weight | 384g |
| Ambient temperature (operation) | -25 … +70 °C (Device starts at ?40 °C (type-tested)) | Ambient temperature (storage) | -25 … +85 °C |
| Relative humidity | 5 … 96?% (no condensation permissible) | Derating | ?3 %/K (> 50 °C) |
| Climatic category | 3K3 (per EN 60721) | Conformity marking | CE |
| Standards/specifications | EN 61010-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
| ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4055143060455 | Customs tariff number | 8504409510 |
| RoHS Compliance Status | Compliant,No Exemption | Phases | 1 |
| Nominal input voltage [V] | 1 x AC?100 … 240?V | Input voltage range | 1 x AC?85 … 264?V;?DC?120 … 300?V |
| Input voltage derating | -2.5 %/V (< 95 VAC) | Nominal mains frequency range | 44 … 66 Hz;0 Hz |
| Input current I<sub>i</sub> | ≤?0.98?A (240 VAC);?≤?1.82?A (100?VAC) | Inrush current | ≤?30?A |
| Power factor correction (PFC) | Passive | Mains failure hold-up time | ≥?80?ms (230?VAC);?≥?15?ms (100?VAC) |
| Nominal output voltage [V] | DC?24?V (SELV) | Output voltage range | DC?24?V |
| Default setting | DC?24?V | Nominal output current I<sub>o nom</sub> | 4 A (24 VDC); 4.2 A (< 40 °C) |
| Nominal output power | 96W | Deviation | ≤?1?% |
| Residual ripple | ≤?20?mV (peak-to-peak) | Current limitation | 1.1 x Io nom(typ.) |
| Overload behavior | Constant current | Signaling | 1 x LED DC OK (green) |
| Operation status indicator | Green LED (Uo) | Power loss P<sub>l</sub> | ≤?1?W;?≤?12.4?W (230 VAC; nominal load) |
| Power loss (max.) P<sub>l (max.)</sub> | 15?W (100 VAC / 24 VDC; 4 A) | Efficiency (typ.) | 89?% |
| Internal fuse | T 4 A / 250 VAC | Backup fusing (required) | An external DC fuse is required for the DC input voltage. |
| Backup fusing (recommended) | Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C |
Specifications may be subject to change without notice
