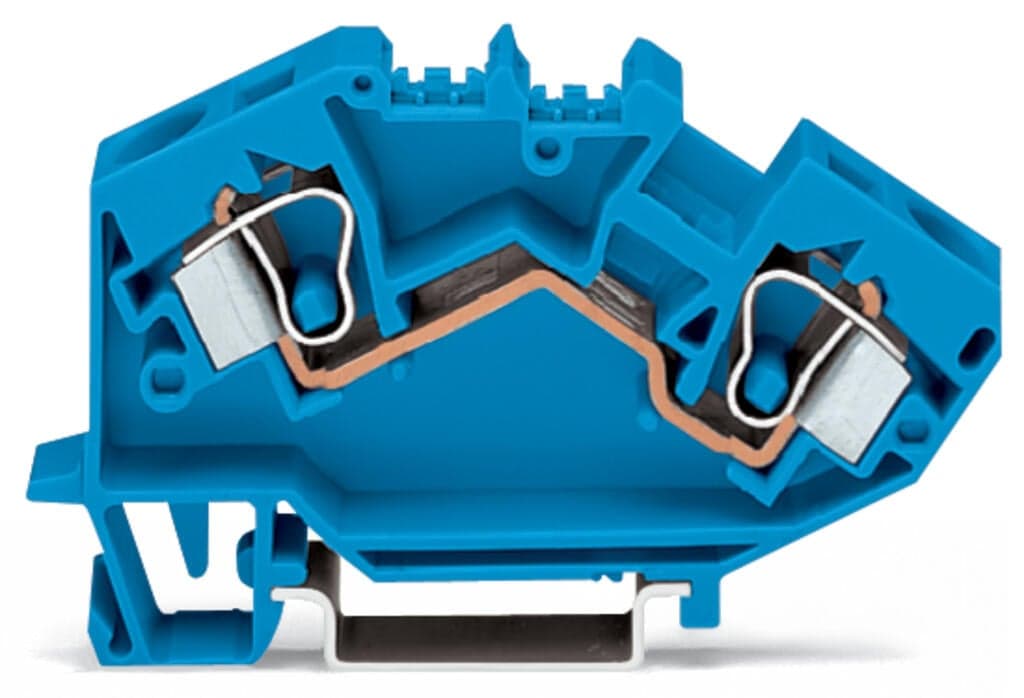

Product Model
784-604
Key Features
- 1Ideal for Ex i applications.
- 210 mm² cross-section.
- 3Middle labeling for easy identification.
- 4Compatible with tracks 35 x 15 and 35 x 7.5.
- 5CAGE CLAMP technology ensures secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 10?mm?/ 0.394?inches |
| Height | 82.5?mm?/ 3.248?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
| Design | angled | Mounting type | DIN-35 rail |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | blue | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.471MJ | Weight | 23.1g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
| ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918805995 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
| Rated current | 57A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Power loss, per pole (potential) | 1.819W | Rated current I<sub>N</sub> for specified power loss | 57A |
| Resistance value for specified, current-dependent power loss | 0.001Ω | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 10?mm2?/ 24 … 8?AWG | Fine-stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
| Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
