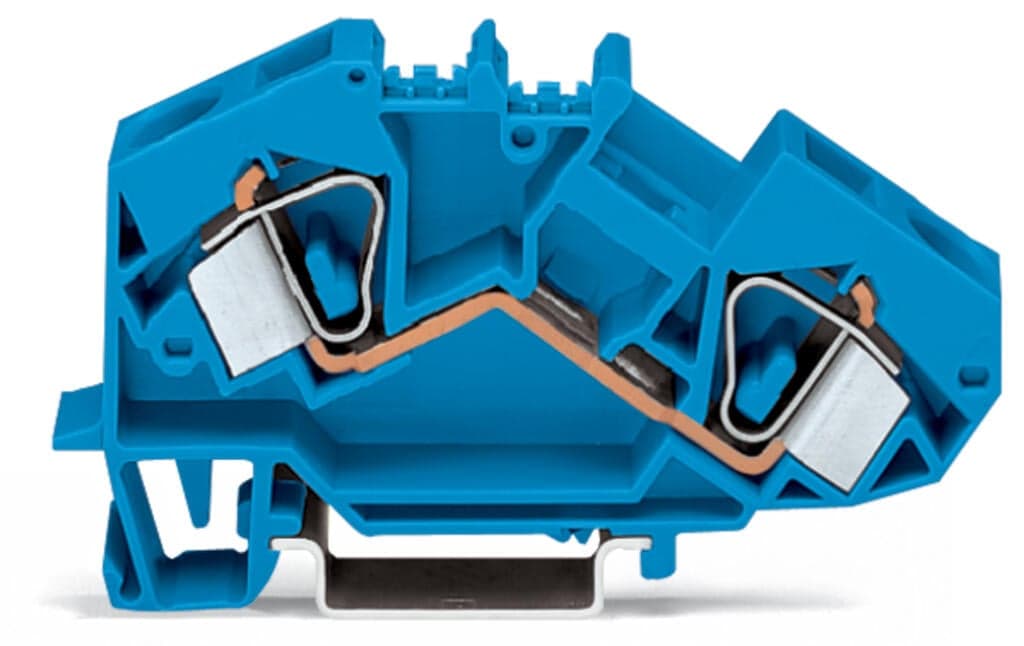

Product Model
783-604
Key Features
- 1High-Voltage Compatibility: Rated for 1000V and 8kV impulse voltage.
- 2Durable Construction: Made with thermoplastic insulating body and polyamide 66 (PA 66) material.
- 3Efficient Clamping: Utilizes CAGE CLAMP technology for secure conductor connections.
- 4Versatile Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5 mounting systems.
- 5Comprehensive Certifications: Meets IEC/EN 60664-1 standards and certified by DEKRA, CSA, and UL.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 12?mm?/ 0.472?inches |
| Height | 88.5?mm?/ 3.484?inches | Depth from upper-edge of DIN-rail | 43.5?mm?/ 1.713?inches |
| Design | angled | Mounting type | DIN-35 rail |
| Marking level | Center marking | Note (material data) | Information on material specifications can be found here |
| Color | blue | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.602MJ | Weight | 32.2g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| eCl@ss 10.0 | 27-14-11-20 | eCl@ss 9.0 | 27-14-11-20 |
| ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918582407 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
| Rated current | 76A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Power loss, per pole (potential) | 2.426W | Rated current I<sub>N</sub> for specified power loss | 76A |
| Resistance value for specified, current-dependent power loss | 0Ω | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 16?mm2?/ 24 … 6?AWG | Fine-stranded conductor | 0.2 … 16?mm2?/ 24 … 6?AWG |
| Strip length | 16 … 17?mm?/ 0.63 … 0.67?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
