Product Model

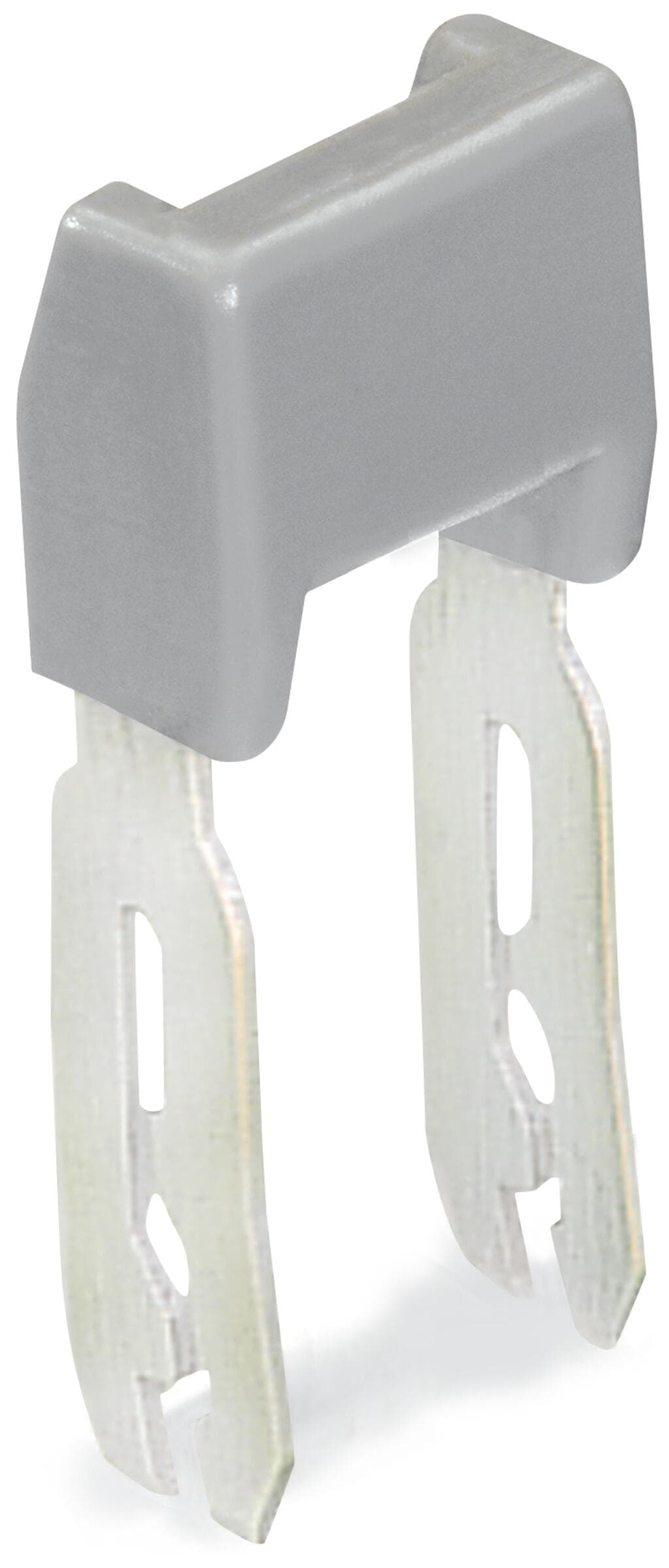

781-455
Key Features
- 1Insulated staggered jumper for secure connections.
- 2Rated current of 32A for reliable performance.
- 3Available in a gray color for easy identification.
- 4Spacing of 6 mm for precise alignment.
- 5Designed for rail and chassis terminal blocks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 23.4?mm?/ 0.921?inches | Height | 6?mm?/ 0.236?inches |
| Jumper assignment | 1-5 | Note (material data) | Information on material specifications can be found here |
| Color | gray | Fire load | 0.016MJ |
| Weight | 2.7g | Product Group | 17 (TOP JOB Installation Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918270991 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 400V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 32A |
Specifications may be subject to change without notice
