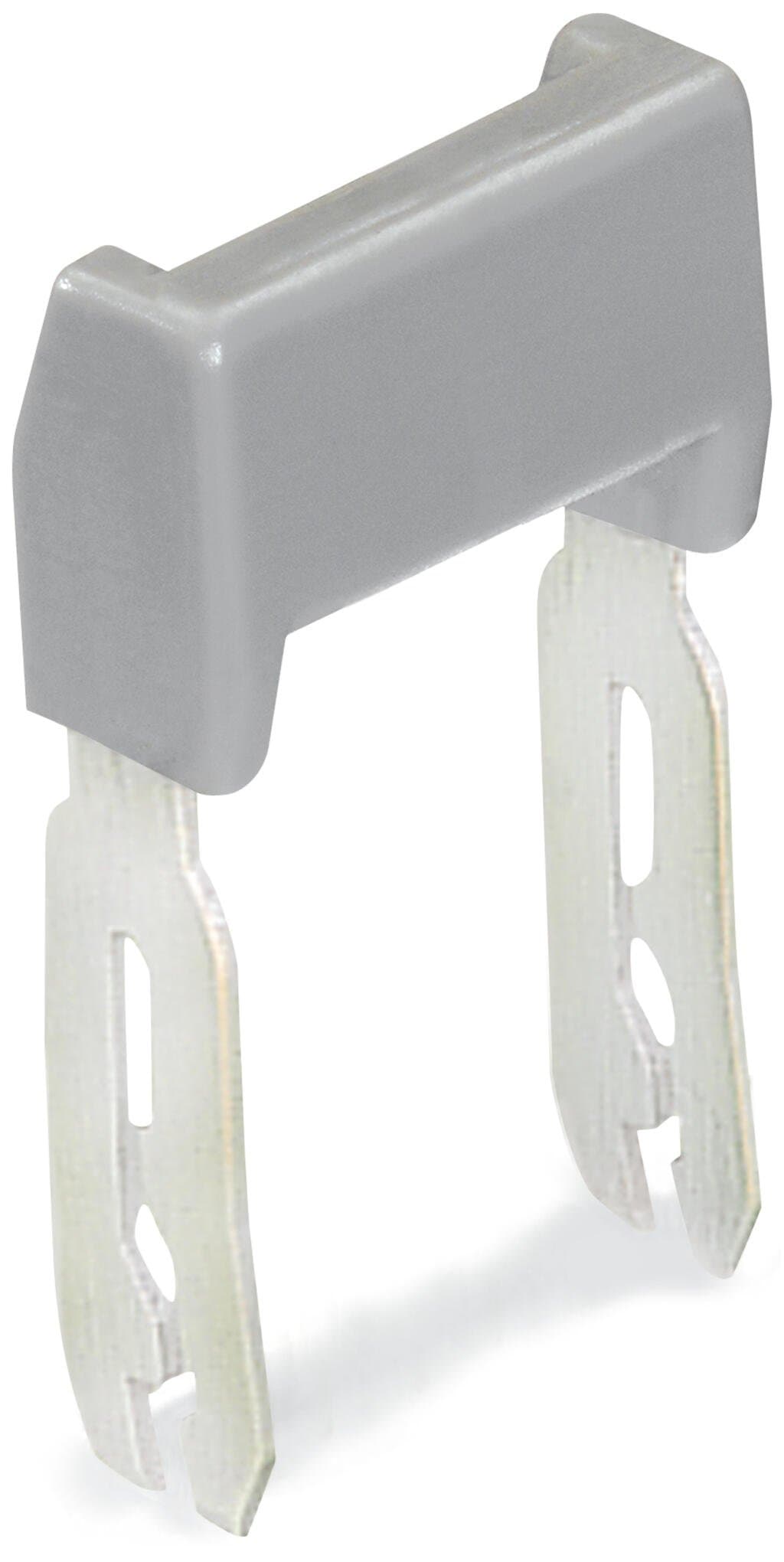

Product Model
780-457
Key Features
- 1Insulated from 1 to 7 poles for versatile connectivity.
- 2Rated current of 24A for reliable electrical performance.
- 3Gray color for easy identification in electrical systems.
- 4Dimensions: W29.5mm x D6mm for precise installation.
- 5Suitable for 2-conductor female plugs for seamless integration.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 29.5?mm?/ 1.161?inches | Height | 6?mm?/ 0.236?inches |
| Jumper assignment | 1-7 | Note (material data) | Information on material specifications can be found here |
| Color | gray | Fire load | 0.017MJ |
| Weight | 2.5g | eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
| ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4044918271073 |
| Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 24A |
Specifications may be subject to change without notice
