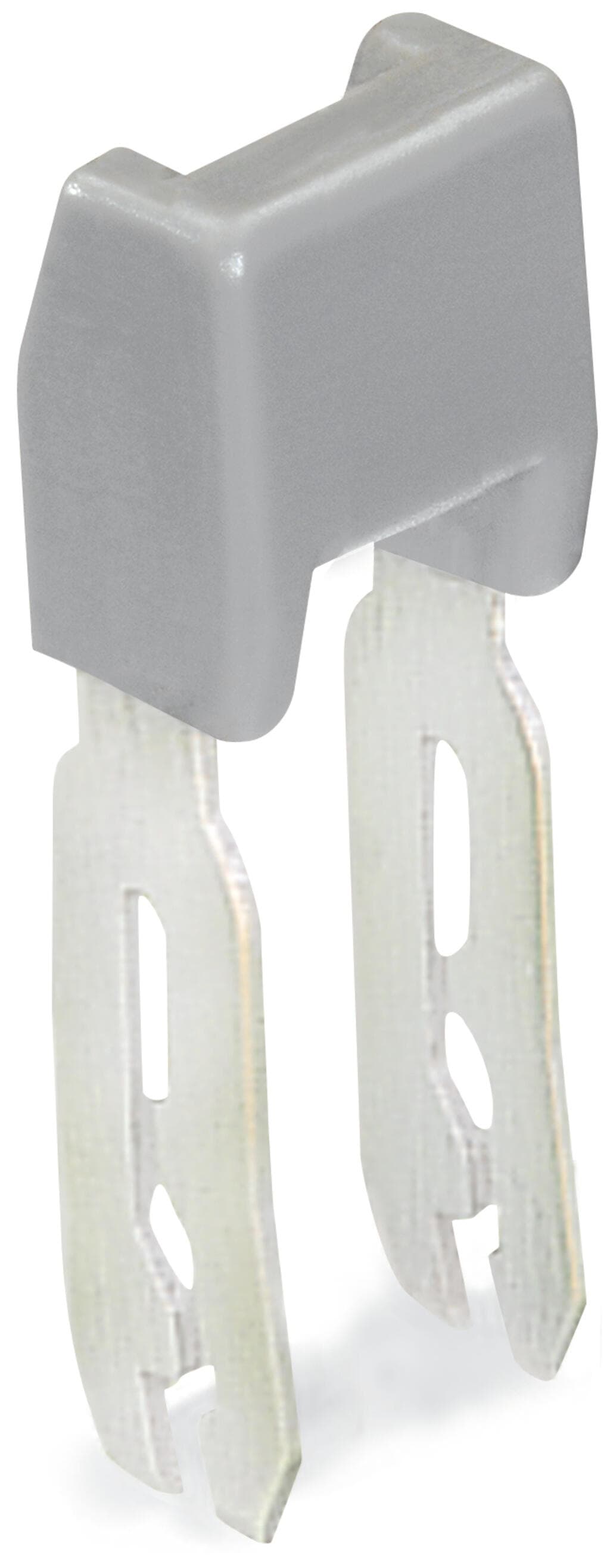

Product Model
780-454
Key Features
- 1Insulated design for enhanced safety and reliability.
- 2Suitable for 2-conductor female plugs with 1 to 4 jumper assignments.
- 3Rated current of 24 A ensures high performance in electrical connections.
- 4Compact dimensions: 6 mm depth and 14.5 mm width for easy installation.
- 5Gray color for easy identification in complex wiring systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 14.5?mm?/ 0.571?inches | Height | 6?mm?/ 0.236?inches |
| Jumper assignment | 1-4 | Note (material data) | Information on material specifications can be found here |
| Color | gray | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.011MJ |
| Weight | 1.8g | Product Group | 17 (TOP JOB Installation Terminal Blocks) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 | ETIM 8.0 | EC000489 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918270922 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 400V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 24A |
Specifications may be subject to change without notice
