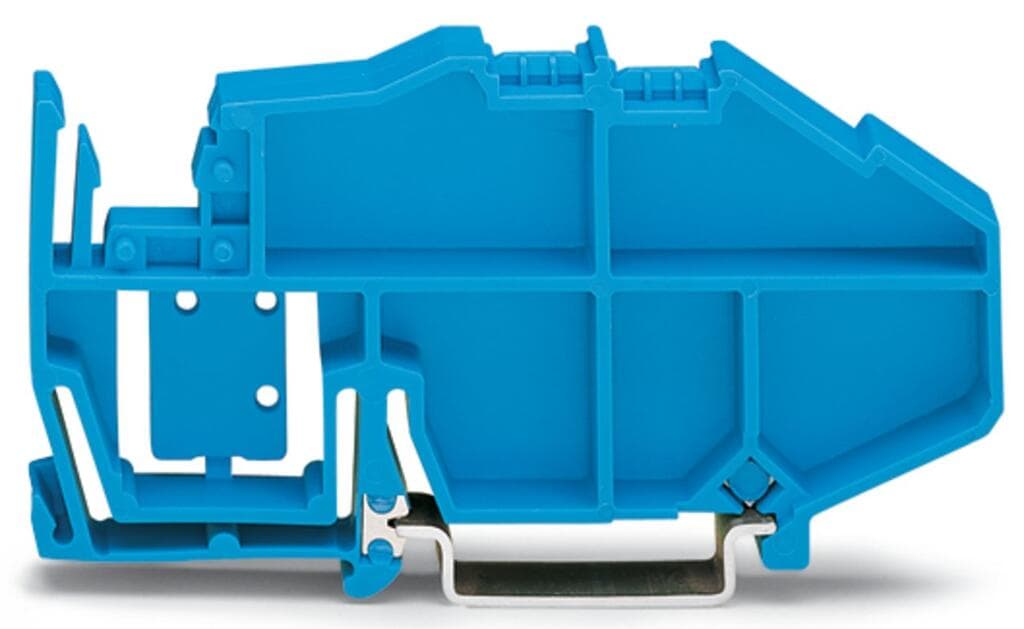

Product Model
777-305
Key Features
- 18 mm thick, robust design for reliable performance.
- 2Compatible with DIN 35 rail, ensuring seamless integration.
- 3Equipped with end stop function and detachable separator plate for flexible configuration.
- 4Blue color, indicating high-quality materials and durability.
- 5Ideal for organizing busbars, enhancing electrical system efficiency.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 8?mm?/ 0.315?inches | Height | 43.5?mm?/ 1.713?inches |
| Depth | 91?mm?/ 3.583?inches | Color | blue |
| Fire load | 0.389MJ | Weight | 13.3g |
| Product Group | 17 (TOP JOB Installation Terminal Blocks) | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-40-06-07 | ETIM 9.0 | EC001166 |
| ETIM 8.0 | EC001166 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332551182 |
| Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
