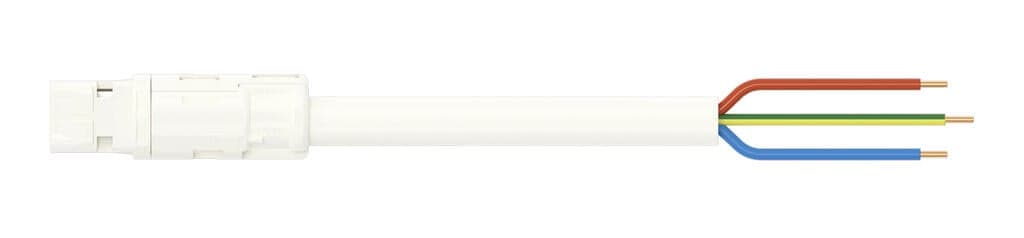

Product Model
774-9993/206-402
Key Features
- 1Designed for easy supply and tap-off at any time and location without cutting.
- 2Ensures secure 3-pole connections with H05VV-F 3G 1.5 mm² wire.
- 3Built with copper or copper alloy contacts for long-lasting performance.
- 4Available in 4 meters, suitable for various applications.
- 5Backed by WAGO's excellent customer service and after-sales support.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 3 |
| PE function | Preceding PE contact | Conductor preparation | ultrasonically tip-bonded |
| Width | 17.5?mm?/ 0.689?inches | Height | 17.5?mm?/ 0.689?inches |
| Total length | 4m | Use | General mains applications |
| Variable coding | No | Marking | L ? N |
| Mating force of a plug-in connection | approx. 30 … 70 N (depending on pole number) | Retention force of a plug-in connection | when locked: > 80N |
| Unmating force of a plug-in connection | Unlocked: approx. 30 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
| Connection type | Plug - Free end | Type of pre-assembled cable | Connecting cable |
| Cable type | H05VV-F 3G1.5 | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
| Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating ?when:a.) plugging different numbers of polesb.) plugging while incorrectly rotatedc.) plugging while laterally staggered |
| Locking of plug-in connection | locking lever | Note (material data) | Information on material specifications can be found here |
| Color | white | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire class per EN 50575 | Eca |
| Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
| Fire load | 119.474MJ | Connector color | white |
| Strain relief color | white | Sheathed cable color | white |
| Printing color of sheathed cable | black | Halogen-free | No |
| Silicon-free | Yes | Sheath material | PVC |
| Rubber cable | No | Weight | 430.7g |
| Copper weight of the pipe | 0.043kg/m | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
| eCl@ss 10.0 | 27-44-06-04 | eCl@ss 9.0 | 27-44-06-04 |
| ETIM 9.0 | EC002587 | ETIM 8.0 | EC002587 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | unpacked | Country of origin | DE |
| GTIN | 4045454323455 | Customs tariff number | 85444290900 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated current | 16A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Strip length | 9?mm?/ 0.35?inches |
| Number of poles | 3 | Wire cross-section | 1.5mm2 |
| Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
