Product Model

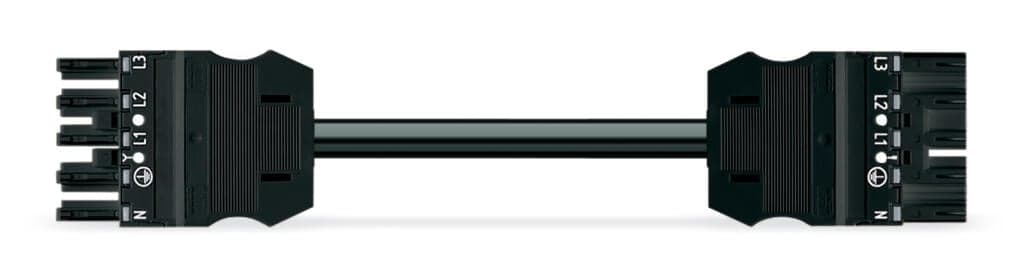

771-9995/017-401
Key Features
- 1Halogen-Free Design: Ensures safe and reliable connections in various environments.
- 2Pre-Assembled for Convenience: Saves time with a ready-to-use cable.
- 35-Pole Socket-Plug Configuration: Provides multiple connection points for versatile applications.
- 44 Meters in Length: Offers ample reach for complex electrical setups.
- 5RoHS Compliant: Meets environmental standards for sustainable practices.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 5 |
| PE function | Preceding PE contact | Pin spacing | 10?mm?/ 0.394?inches |
| Width | 47?mm?/ 1.85?inches | Height | 15.38?mm?/ 0.606?inches |
| Total length | 4m | Use | General mains applications |
| Coding | A | Variable coding | Yes |
| Marking | N ? L1 L2 L3 | Potential Marking | N ? L1 L2 L3 |
| Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) | Retention force of a plug-in connection | when locked: > 80N |
| Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) | Number of mating cycles | 200, without resistive load |
| Connection type | Socket - Plug | Type of pre-assembled cable | Interconnecting cable |
| Cable type | H05Z1Z1-F 5G2.5 | Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
| Mismating protection | Yes | Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | Can be retrofitted | Locking of plug-in connection | locking lever |
| Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). | Note (material data) | Information on material specifications can be found here |
| Color | black | Insulation material (main housing) | Polyamide (PA66) |
| Fire class per EN 50575 | Eca | Contact material | Copper or copper alloy; surface-treated |
| Contact plating | Tin | Fire load | 120.301MJ |
| Connector color | black | Strain relief color | black |
| Printing color of strain relief | white | Sheathed cable color | black |
| Printing color of sheathed cable | white | Halogen-free | Yes |
| Silicon-free | Yes | Sheath material | Halogen-free |
| Rubber cable | No | Weight | 967.4g |
| Copper weight of the pipe | 0.12kg/m | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
| eCl@ss 10.0 | 27-44-06-04 | eCl@ss 9.0 | 27-44-06-04 |
| ETIM 9.0 | EC002587 | ETIM 8.0 | EC002587 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | unpacked | Country of origin | PL |
| GTIN | 4044918588843 | Customs tariff number | 8544429090 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
| Rated current | 20A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Number of poles | 5 |
| Wire cross-section | 2.5mm2 |
