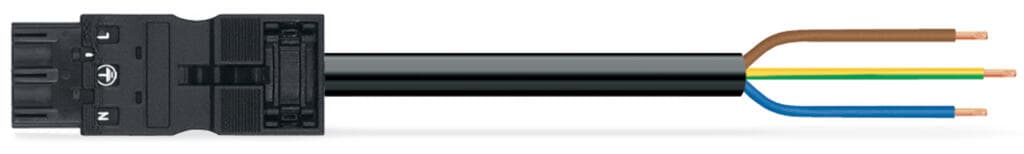

Product Model
771-6993/207-101
Key Features
- 1Secure and Reliable: Equipped with locking levers for secure plug-in connections.
- 2Versatile Use: Suitable for general mains applications, including lighting fixtures and devices.
- 3High-Rated Performance: Meets IEC/EN 60664-1 standards with a nominal voltage of 250 V and rated impulse voltage of 4 kV.
- 4Durable Material: Constructed with polyamide (PA66) insulation and copper or copper alloy contacts.
- 5Easy Installation: Quick and easy to connect different conductor types, saving time and cost in various installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Cables with a different fire class can be found in the eShop. | Total number of potentials | 3 |
| PE function | Preceding PE contact | Conductor preparation | ultrasonically tip-bonded |
| Pin spacing | 10?mm?/ 0.394?inches | Width | 30?mm?/ 1.181?inches |
| Height | 12.9?mm?/ 0.508?inches | Total length | 1m |
| Use | General mains applications | Coding | A |
| Variable coding | Yes | Marking | L ? N |
| Potential Marking | L ? N | Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Retention force of a plug-in connection | when locked: > 80N | Unmating force of a plug-in connection | when unlocked: approx. 20 … 70 N (depending on pole number) |
| Number of mating cycles | 200, without resistive load | Connection type | Plug - Free end |
| Type of pre-assembled cable | Connecting cable | Cable type | H05VV-F 3G2.5 |
| Protection type | IP2XD; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) | Mismating protection | Yes |
| Note on mismating protection | AllWINSTA?components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180c.) plugging while laterally staggeredd.) plugging one pole | Locking lever | Can be retrofitted |
| Locking of plug-in connection | locking lever | Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Insulation material (main housing) | Polyamide (PA66) | Fire class per EN 50575 | Eca |
| Contact material | Copper or copper alloy; surface-treated | Contact plating | Tin |
| Fire load | 30.031MJ | Connector color | black |
| Strain relief color | black | Sheathed cable color | black |
| Printing color of sheathed cable | white | Halogen-free | No |
| Silicon-free | Yes | Sheath material | PVC |
| Rubber cable | No | Weight | 175g |
| Copper weight of the pipe | 0.072kg/m | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Cable for temperatures ≤ 70 °C (including halogen-free)Insulating parts for temperatures ≤ 105 °C |
| eCl@ss 10.0 | 27-44-06-04 | eCl@ss 9.0 | 27-44-06-04 |
| ETIM 9.0 | EC002587 | ETIM 8.0 | EC002587 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | unpacked | Country of origin | DE |
| GTIN | 4055143492614 | Customs tariff number | 85444290900 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
| Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
| Rated current | 20A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Note on contact resistance | approx. 1 m? of contact resistanceapprox. 0.25 m? contact transition plug/socket | Strip length | 9?mm?/ 0.35?inches |
| Number of poles | 3 | Wire cross-section | 2.5mm2 |
| Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
